AO System Design Effort (WBS 3.2 & 3.3), System Design Phase

Arrow left PDR Phase Opto-Mechanical Design page Arrow right Opto-Mechanical Mini Design Review, Nov 2009

Management

WBS 3.3 Laser Facility

WBS 3.2.3.5 Wavefront Sensors

3.2 Deliverable Documents

  • KAON 550 - System Configurations Spreadsheet (2/4/08). Three sheets are included: i) the system configurations, ii) a mapping of science drivers to system configurations and iii) a list of the required dichroics by switching device.

Design write-ups:

Use as inputs to the System Design Manual

Specification Spreadsheets

Use as inputs to the Functional Requirements Database).
Note, these are links to the FunctionalRequirements page. Please update your edited versions there.

3.3 Deliverable Documents

Design write-ups

Specification Spreadsheets

Technical Documents

LOWFS and LGS HOWFS Technical FoV (new)

Opto-Mechanical Design

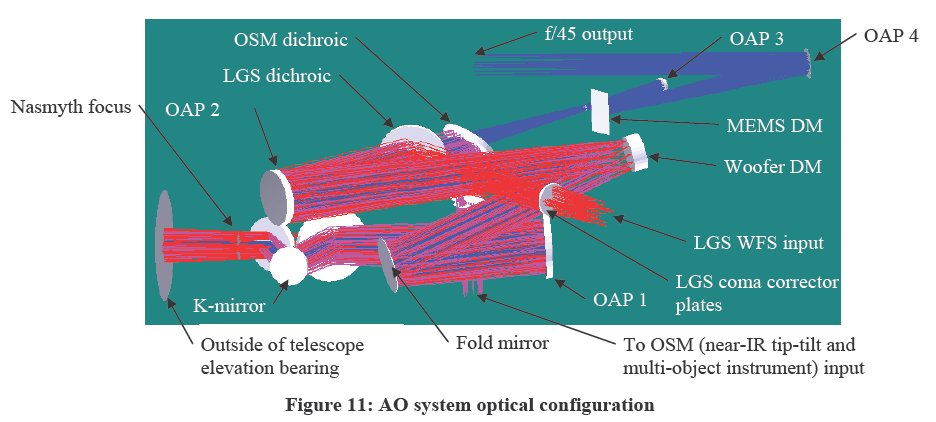

Original design coming from the Architecture phase

October 29, 2007
optical design update - increase field to 180 arcseconds for stars, 202 arcseconds for LGS

November 8, 2007
Optical design with 7mm pitch woofer - (180 arcsec FOV, still 2-tier)

November 20, 2007
Optical design for 150 arcsec field - (back to 5mm pitch, 2-tier, but smaller field (150 arcsec))

This is Brian's design with a little bigger K-mirror to accomodate 150 instead of 120 arcseconds.

November 26, 2007
1-tier, 7mm pitch, 150 arcsecond field AO relay design

This is an exploration of the idea of putting it all on one-tier, with a "big" (7mm pitch) woofer DM.

NOTE These have an error in one of the path lengths (tweeter to 4th OAP)

November 27, 2007, CORRECTED 1-tier, 7mm pitch, 150 arcsecond field AO relay design

This is an exploration of the idea of putting it all on one-tier, with a "big" (7mm pitch) woofer DM. Previous error is corrected.

November 28, 2007

Peter's Zemax files: Additional ideas for the 1-tier layout

Peter's ppt summary of the optical designs: NGAO optical designs.ppt

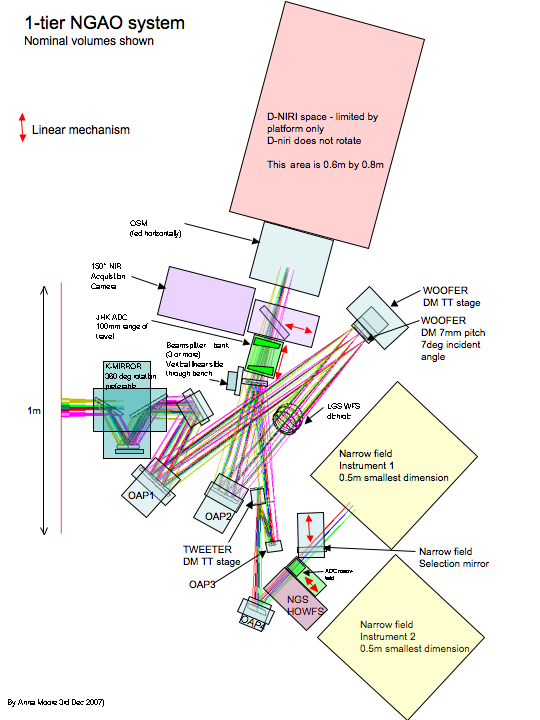

Anna's doodle drawing adding enclosures and instruments to Peter's 1 tier design:

November 29, 2007

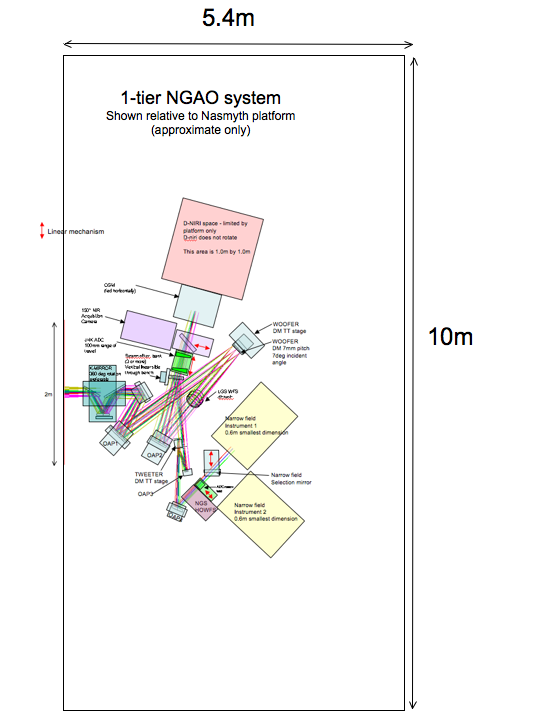

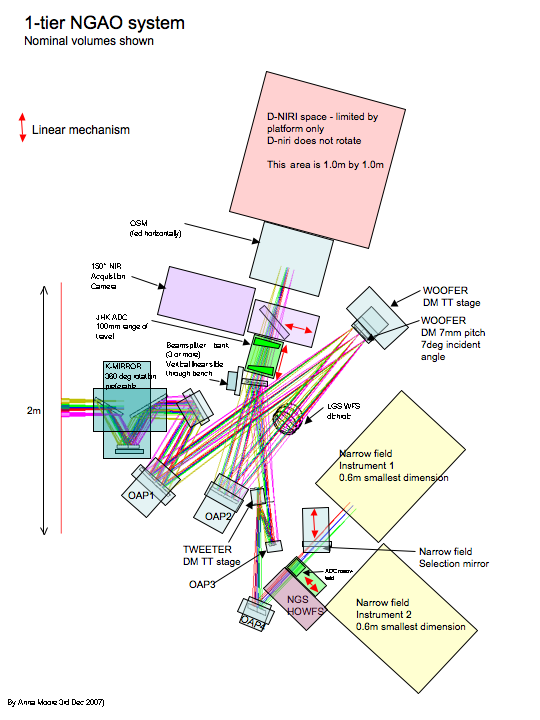

Here's the 1-tier, 140mm pupil layout with all corrector plates removed, and deformable mirrors flat.

December 3, 2007

Peter's Zemax file: Additional ideas for the 1-tier layout with multiple configurations

Peter's ppt summary of this optical design: NGAO 1-tier optical relay.ppt

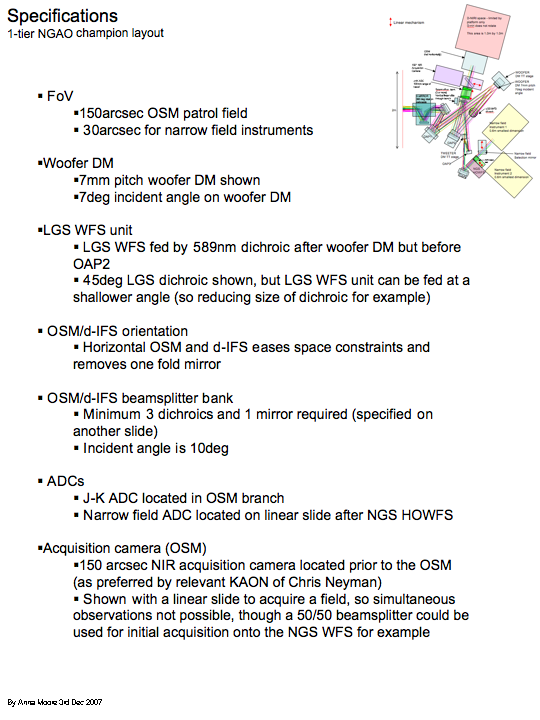

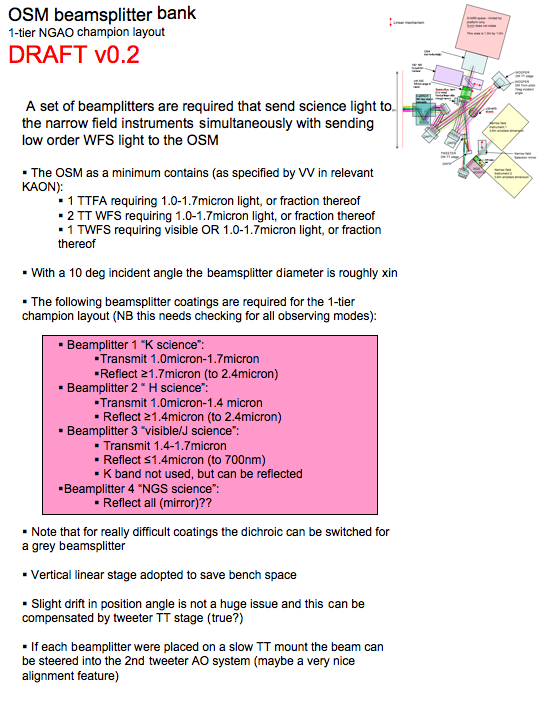

Anna's Zemax file: Combined Reni's 140mm 1-tier zemax with Peter's original 1-tier Keck AO system Changes made were OAP specifications, added LGS WFS dichroic, DM angle reduced to 7deg, OSM beamsplitter angle reduced to 10.5deg. This file is not complete! For use tomorrow.

Reni's 2-tier, folded 2nd relay design, based on Brian's original 2-tier design but with the 2nd relay folded rather than transmitted by a dichroic (this is Peter's idea from the 1-tier layout). Also a powerpoint slide showing the possible configuration of various NGAO components.

December 6, 2007

Outline dimensions for the narrow field instruments.

December 7, 2007

Peter's Zemax file: Another idea for the 1-tier layout with multiple configurations

Peter's ppt summary of this optical design: NGAO 1-tier optical relay.ppt

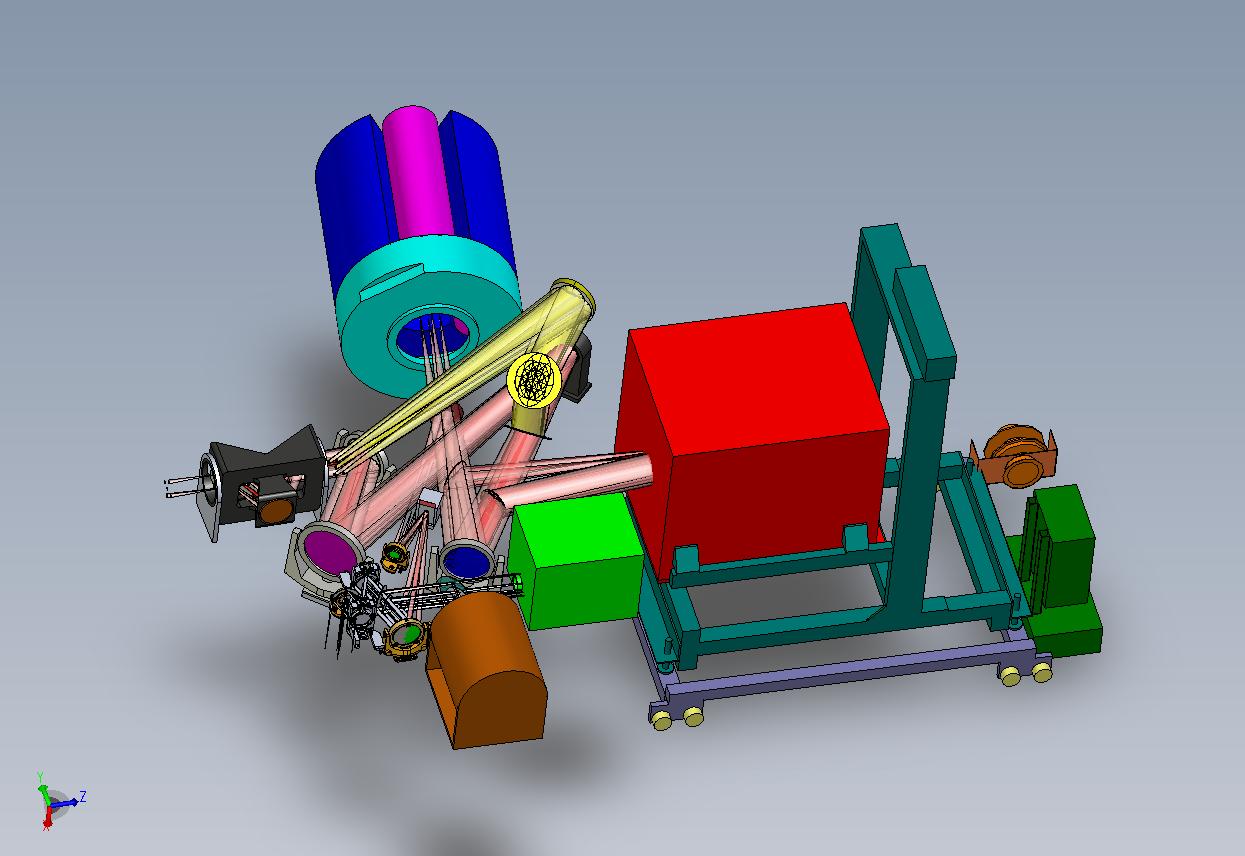

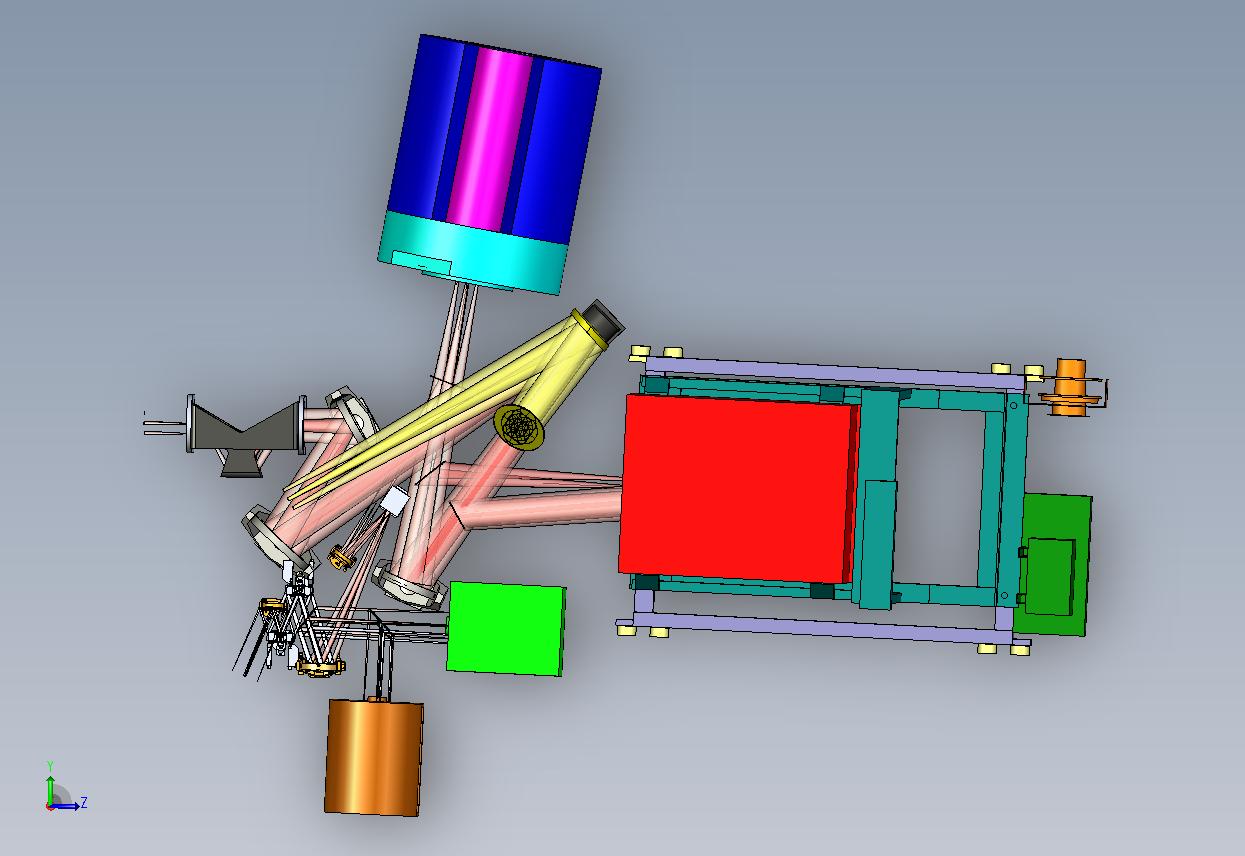

Jim Bell's draft Solid Works model: Single Tier.easm Top view.jpg Perspective view.jpg

December 11, 2007

Comparision of opto-mechanical designs

December 12, 2007
Anna's LGS schematics:

December 13, 2007
Chris L.'s drawings of 2-tier AO relay feeding instruments

January 7,2008

Here's an update of the 2-tier design, with an attempt at incorporating the interferometer steering mirrors.

January 17, 2008
Current version of 2-tier cascaded relay, including telescope optics:

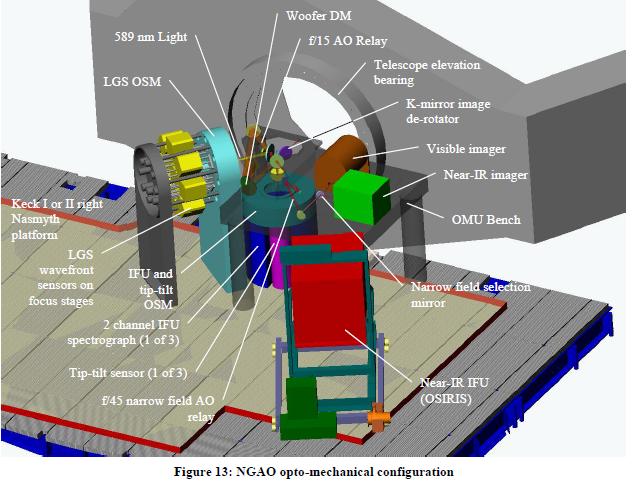

Chris Lockwood's mechanical drawing of the AO relays and interfaces to instruments

Object Selection Mechanism

Link to LGS OSM Object Selection Mechanism (OSM) related files: Link to LOWFS OSM Object Selection Mechanism (OSM) related files:

Present AO system design

  • Keck_AO_System.ZMX: Keck_AO_System.ZMX - This is the present AO system design (ZEMAX file)

Reference on Pickoff Mechanisms

Paper: starbug-spie6273-69-06.pdf Haynes et. al., It’s Alive! – Performance and control of prototype Starbug actuators

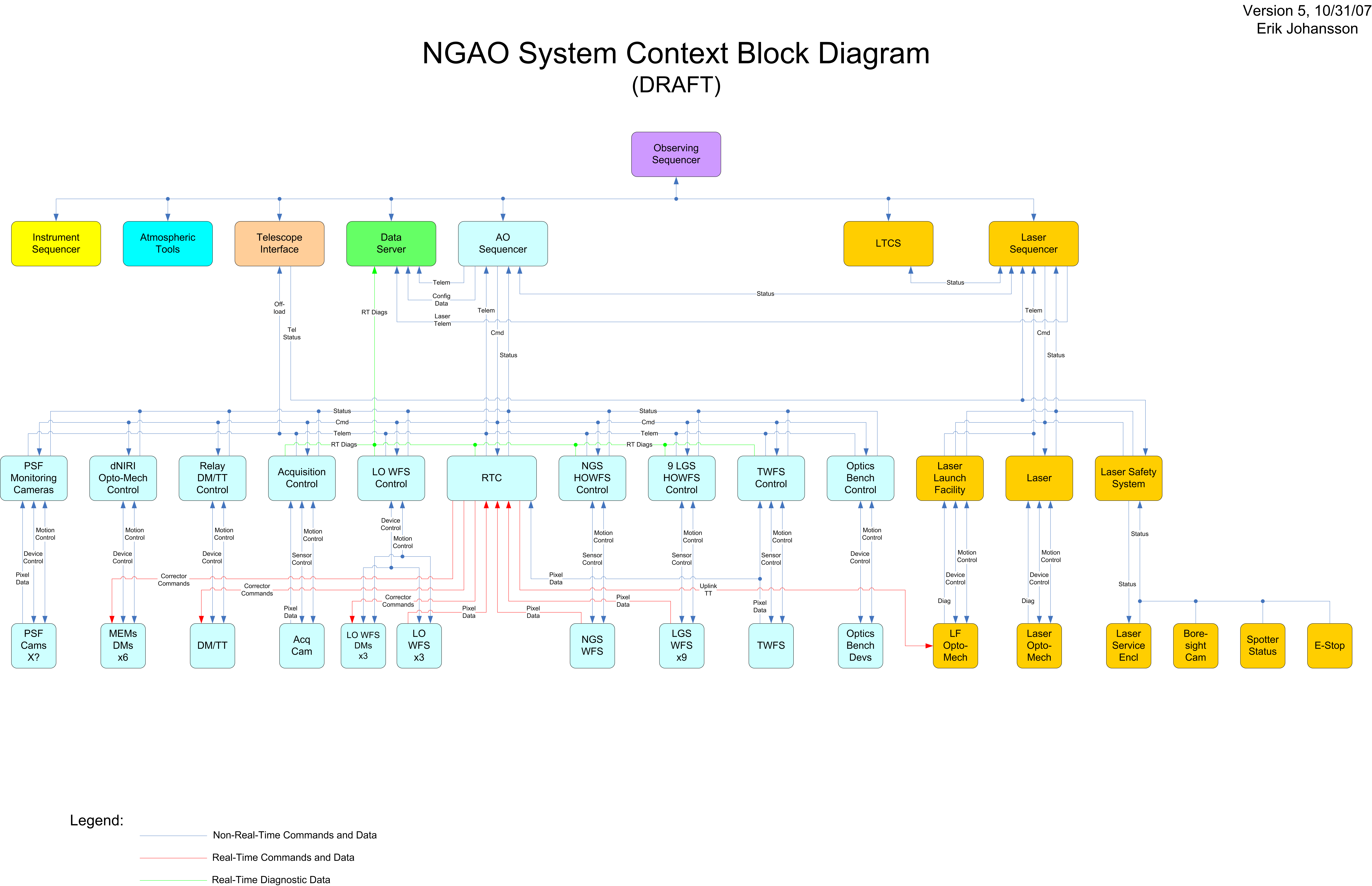

Controls Architecture

Operational Tools

Design and Interface Collections:

Some initial drawings:



ICDs
