NGAO Wavefront Sensors

Preliminary Design Phase

Laser Guide Star (LGS) WFS Subsystem

Consisting of the Fixed LGS asterism assembly and Patrolling LGS asterism assembly (aka Point and Shoot LGS)

LGS WFS Subsystem Team Meetings

Requirements and Interface Documents

Design Documents

Pupil nutation compliant design

Designs not compliant with pupil nutation (DM actuator to lenslet mapping is not exactly a Fried geometry)

  • LGS.vsd: LGSWFS assembly schematic (Alex has made one with dimensions probably, so let's not edit this file until tomorrow)

Answers to reviewer questions and comments:

Wavelength Sub-aps FoV Filter OSM
589 nm 63x63 1.41 - -

Point-and-shoot laser guide star wavefront sensors

Wavelength Sub-aps FoV/ FoR Filter OSM
589 nm 31x31 1.49 / 120 - theta-phi

Low-Order (LO) and Truth (T) WFS's Subsystem

Consisting of two patrolling Tip-tilt (TT) and one patrolling Tip-tilt-focus-astigmatism/Truth (TTFA/T) assemblies

LOWFS Subsystem Team Meetings

Requirements and Interface Documents

Design Documents

Natural Guide Star (NGS) WFS Subsystem

For operation with NGS or as a LO WFS for on-axis science targets

NGS WFS Subsystem Team Meetings

Requirements and Interface Documents

Design Documents (work in progress)

NGSWFS KAON

E Drawings

Presentation (3/31/2010)

obselete (2/30/2010)

Answers to reviewer comments (3/31/2010)

obselete (2/30/2010)

obselete (2/23/2010)

STEP files (2/24/2010)

obselete (2/23/2010)

Zemax files (3/24/2010)

obselete (3/23/2010)

____________________________

System Design Phase (Obsoleted)

High order laser guide star wavefront sensor

Tomographic laser guide star wavefront sensors

Wavelength Sub-aps FoV Filter OSM
589 nm 63x63 1.41 - -

Point-and-shoot laser guide star wavefront sensors

Wavelength Sub-aps FoV/ FoR Filter OSM
589 nm 31x31 1.49 120 - theta-phi

Low order wavefront sensor assembly

Tip-tilt, Focus and Astigmatism Sensor

Tip-Tilt wavefront sensor

Truth wavefront sensor

High order NGS sensor

Wavelength Sub-aps FoV/ FoR Filter OSM
400-1000 nm 32x32 and 64x64   - steering mirrors

-- ViswaVelur - 15 Jun 2006

Object Selection Mechanism Design

  • OSM ASSY:

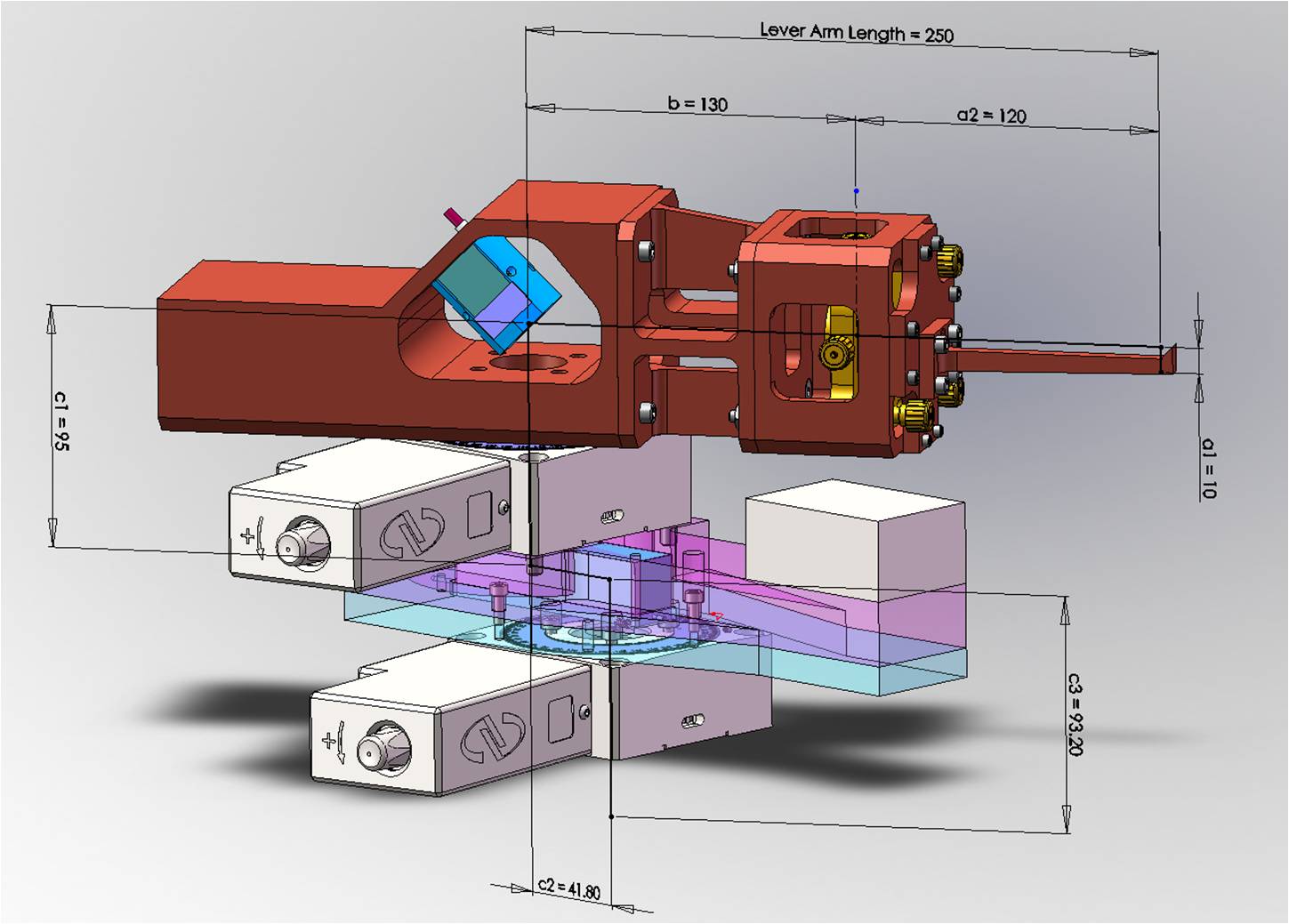

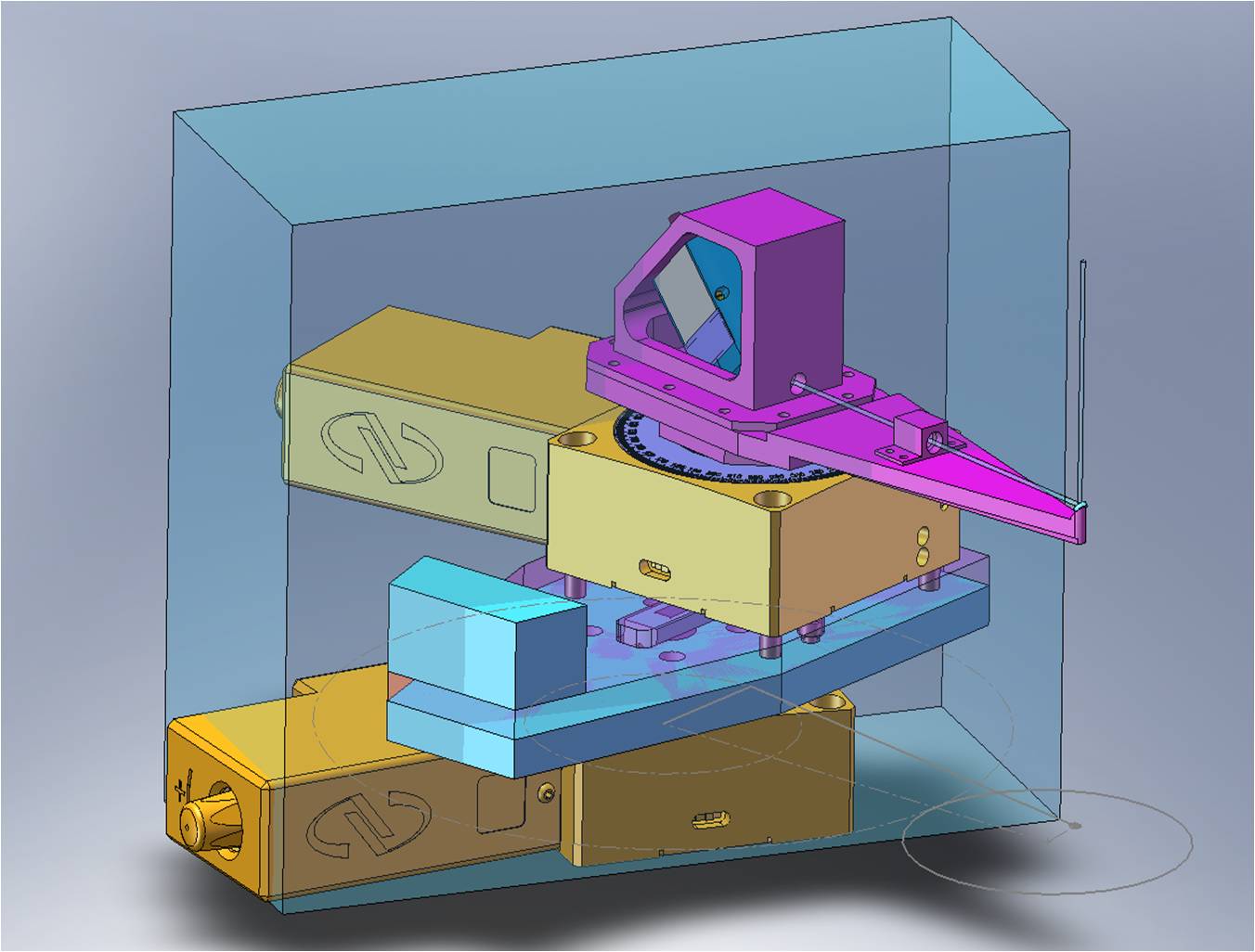

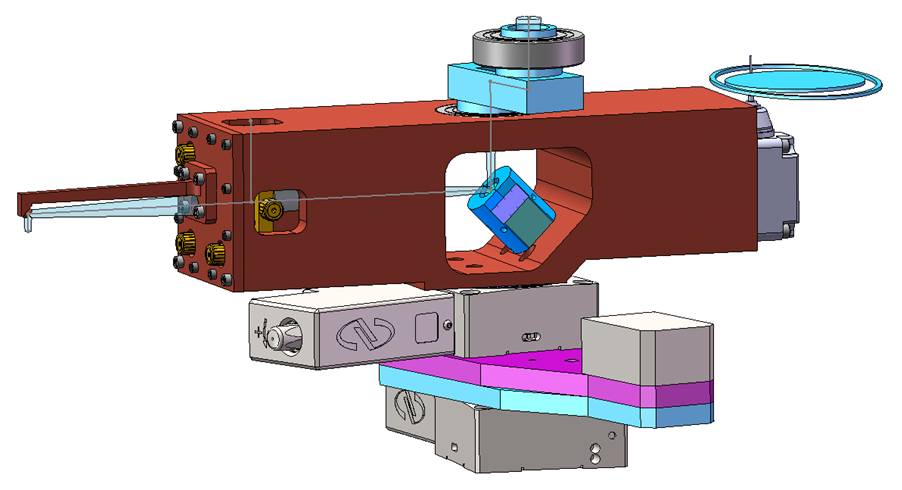

Object Selection Mechanism Models

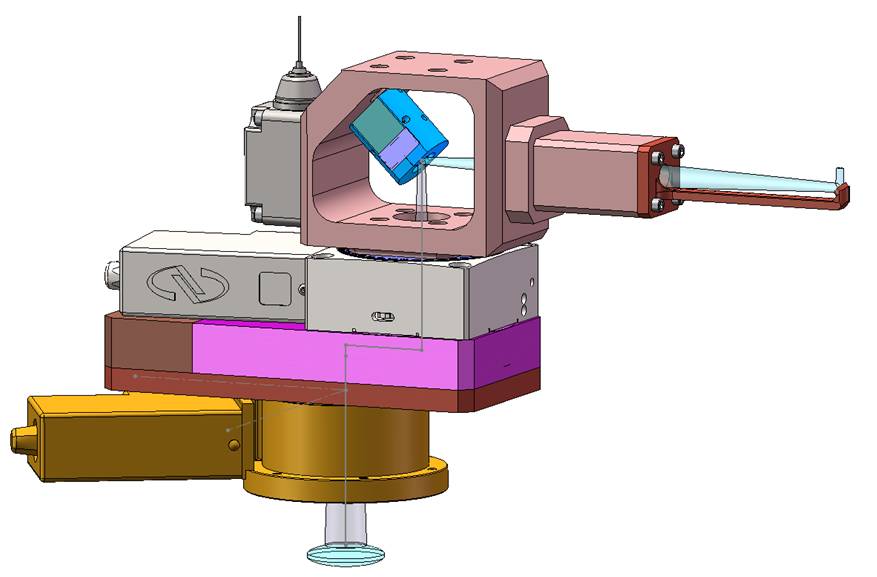

theta-phi mechanism in operation

Design

LGS Designs

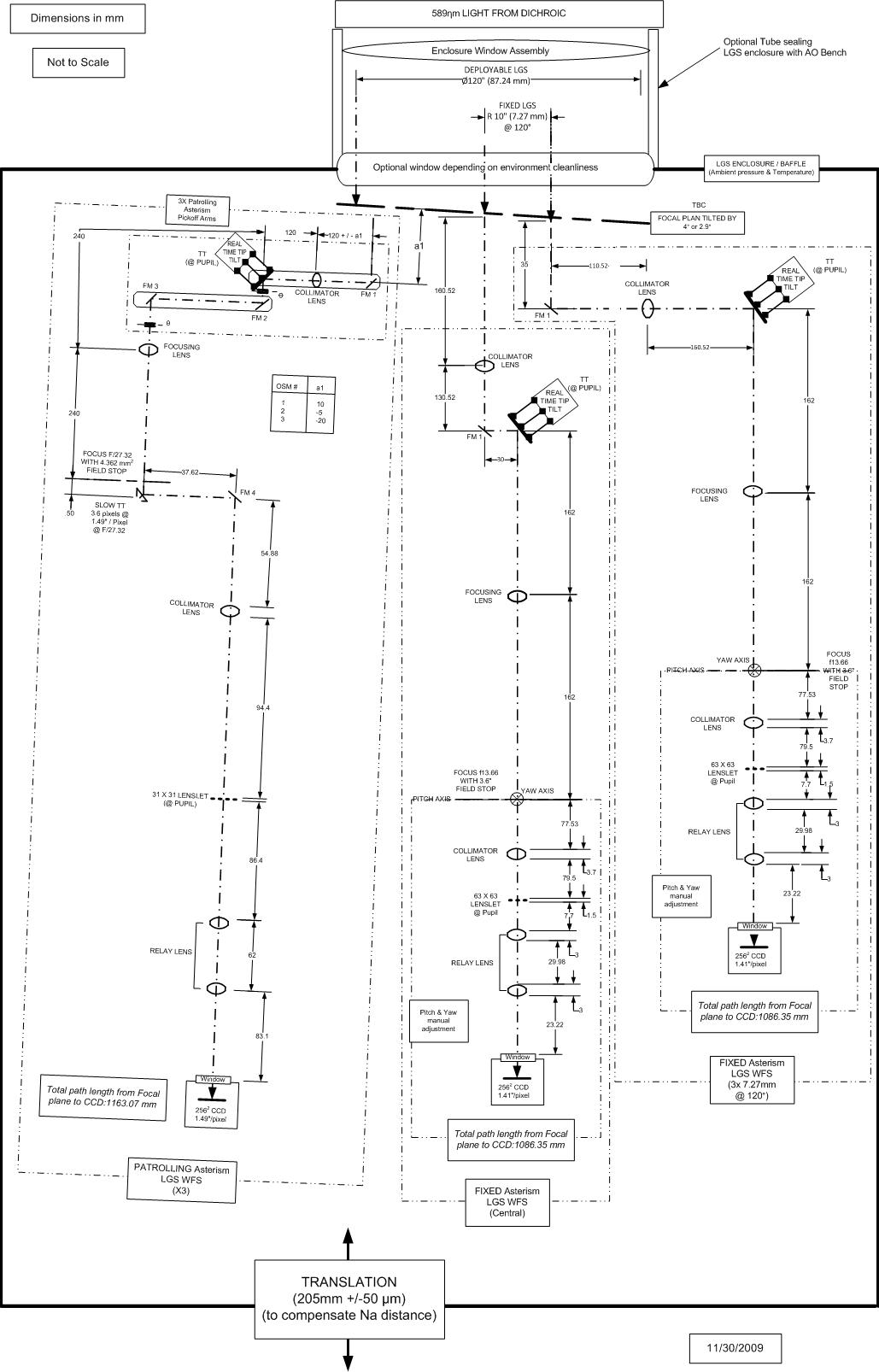

  • LGS Schematic diagram:
