WBS 4.1.1 Work Breakdown Structure & Task Definitions:

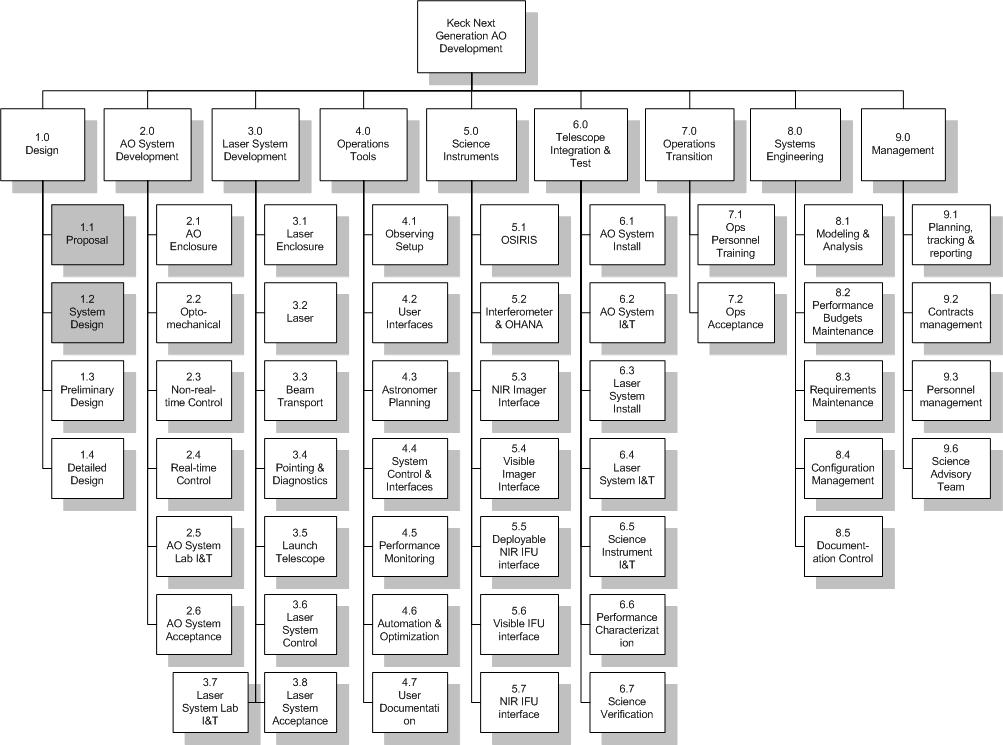

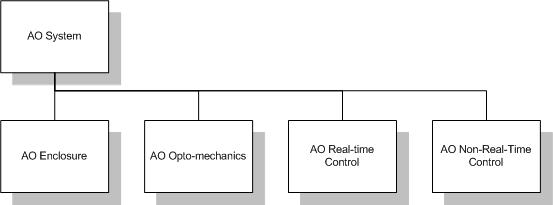

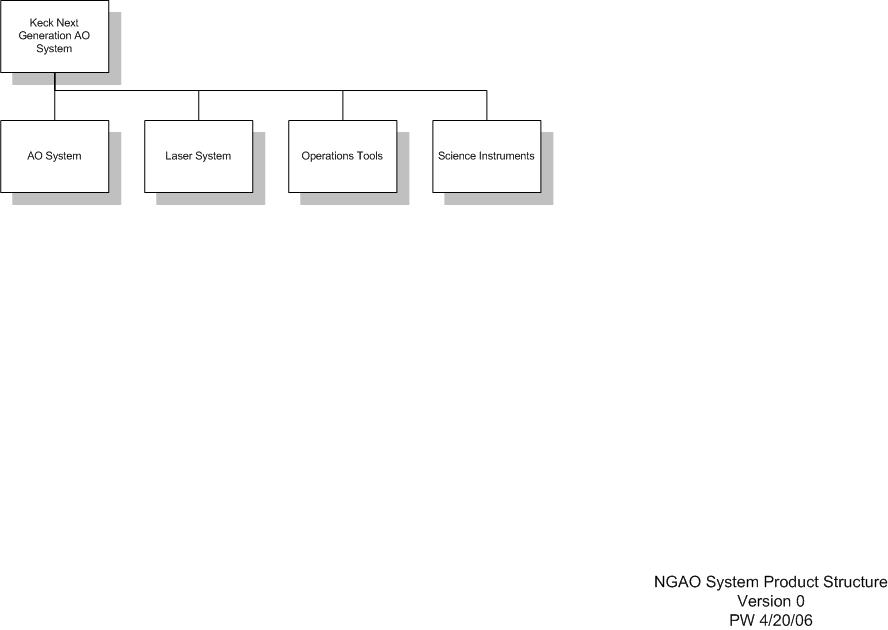

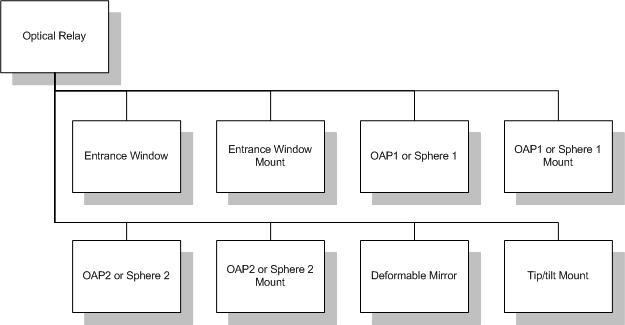

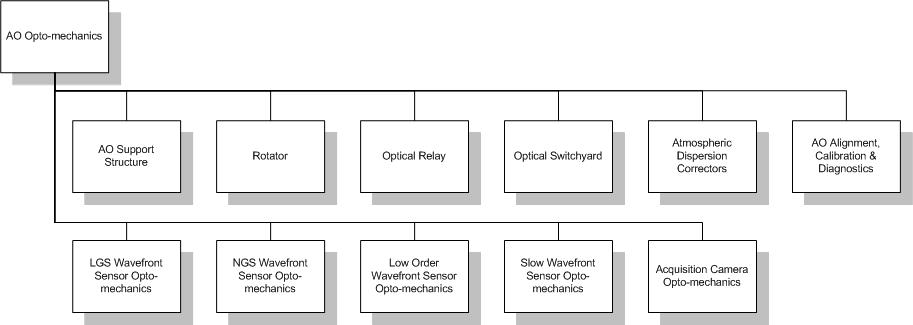

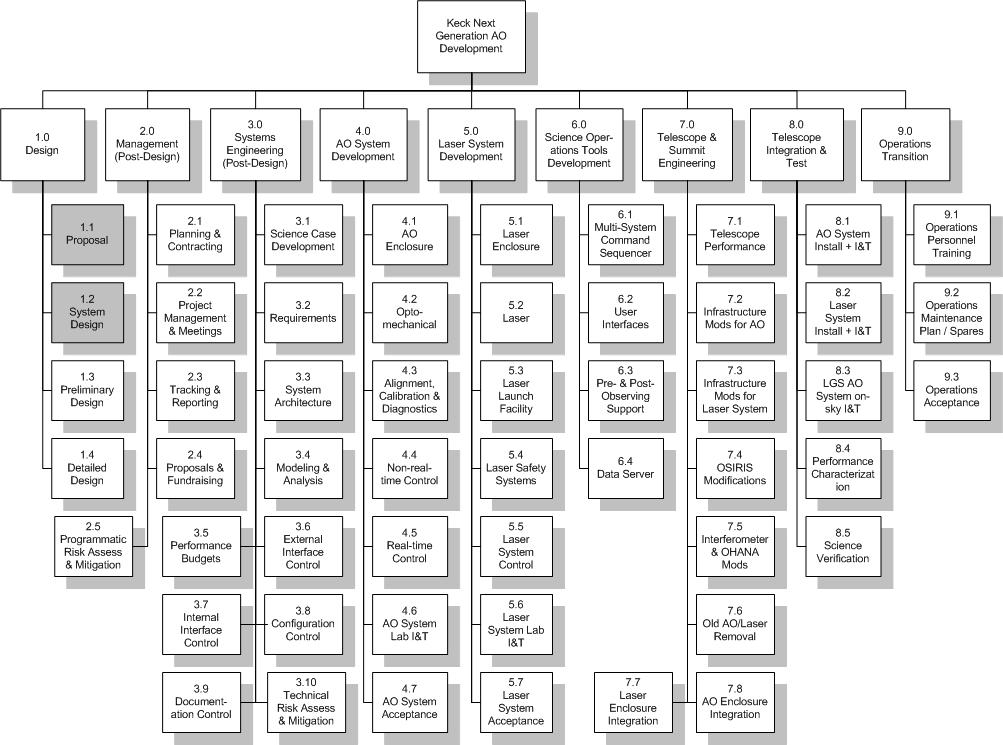

• Product Structure from Proposal: Visio (6/19/06). The Product Structure starts at a high level and works itself progressively to more and more and more detail.

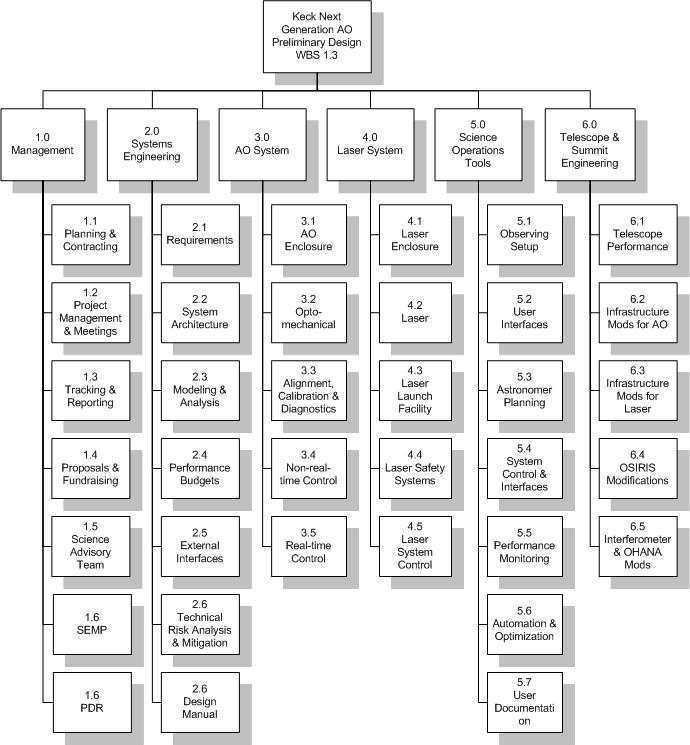

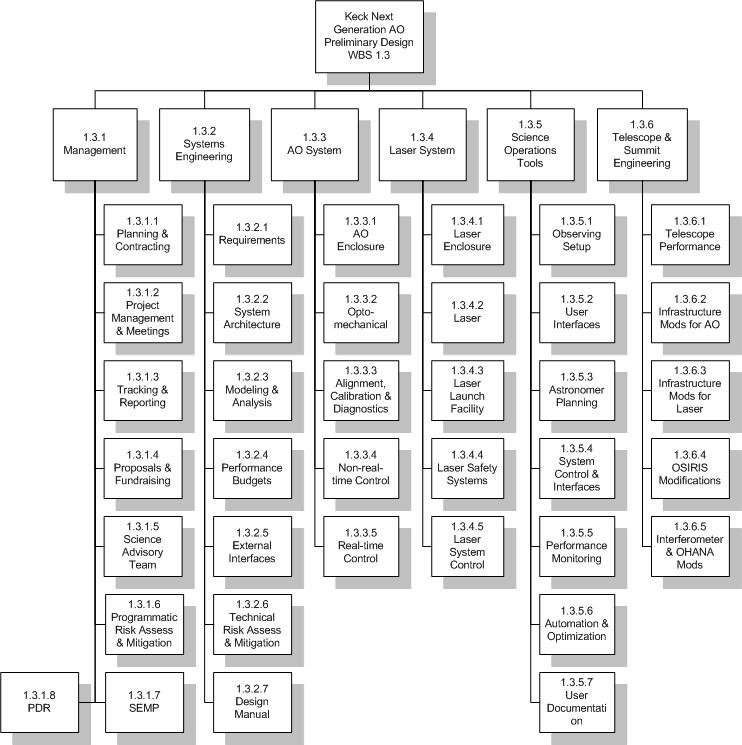

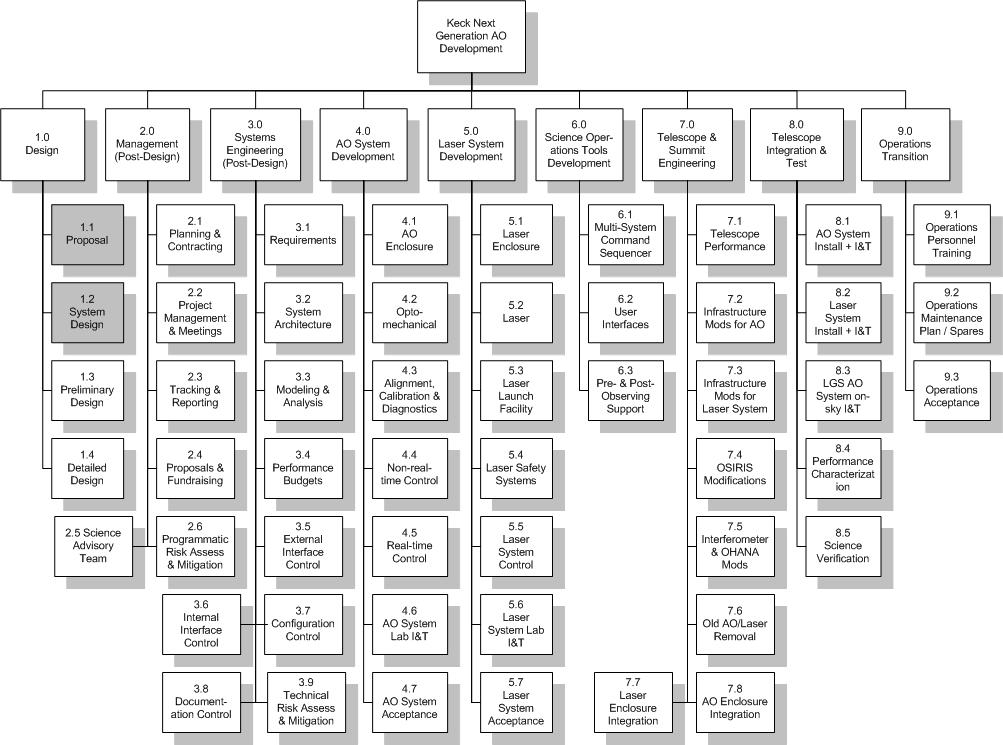

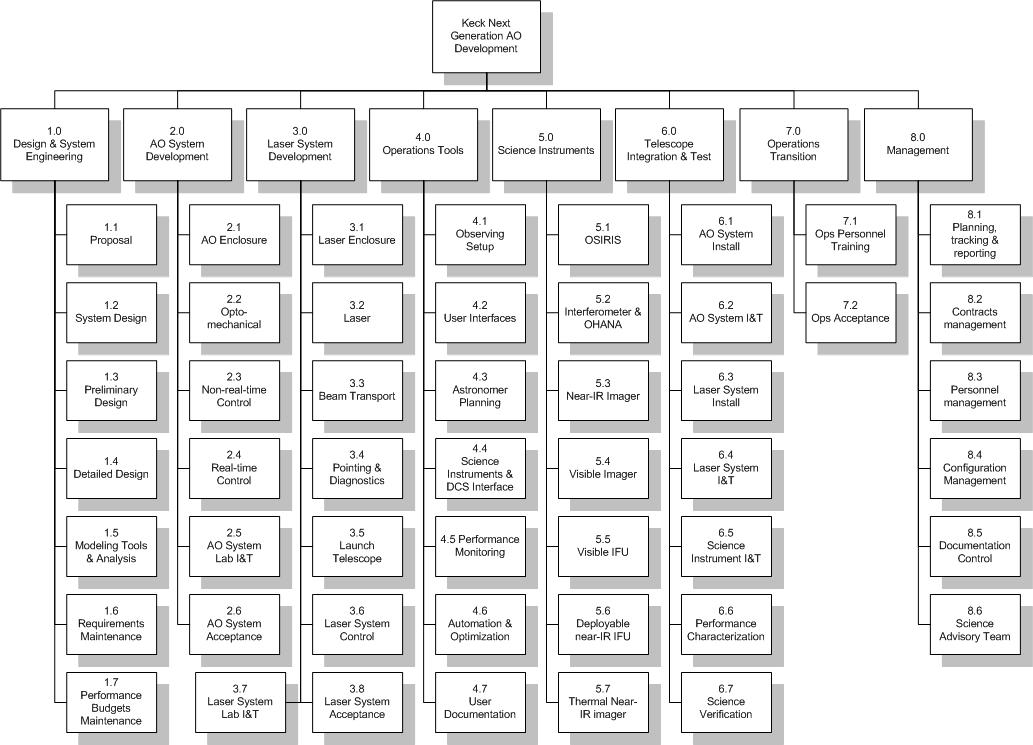

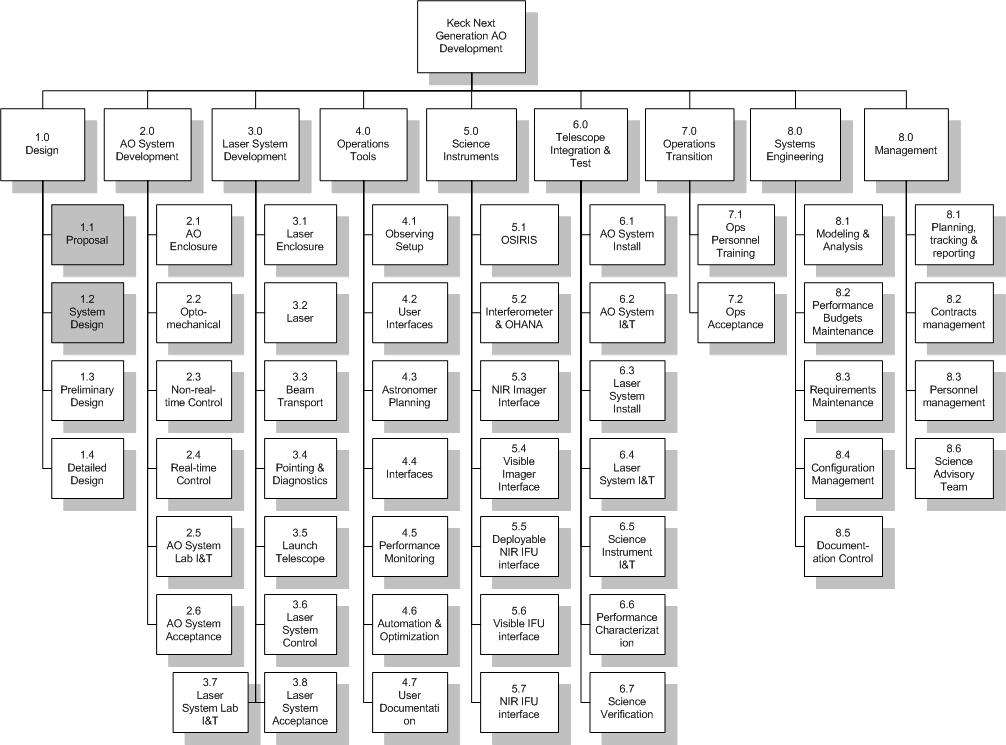

• The above document includes a draft WBS chart that was used in the NGAO Proposal.

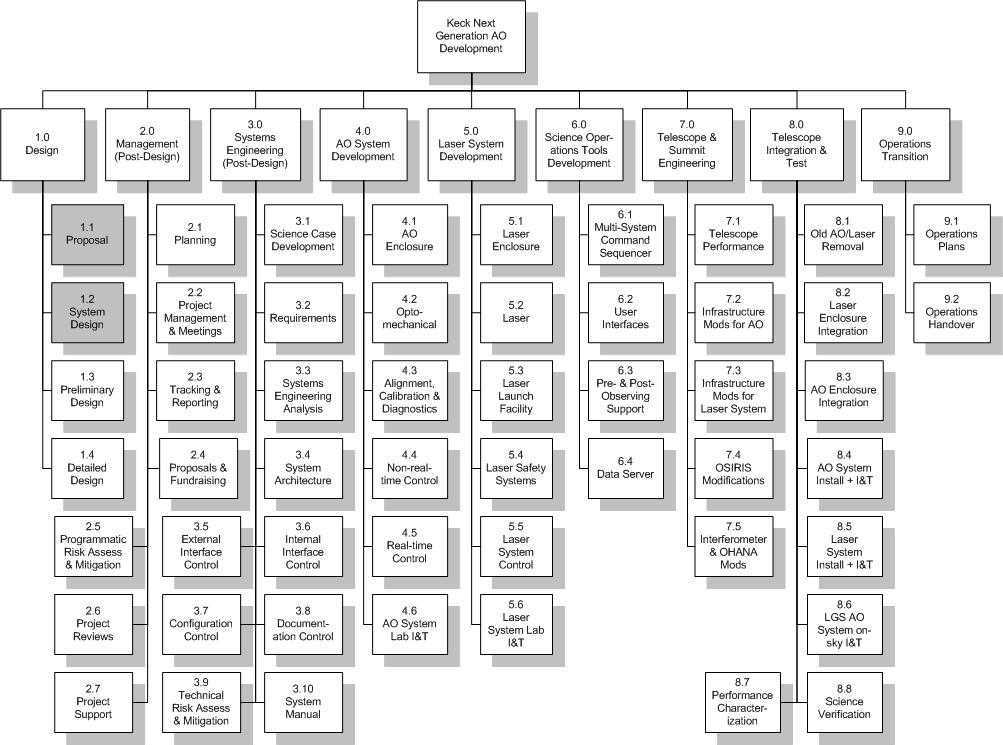

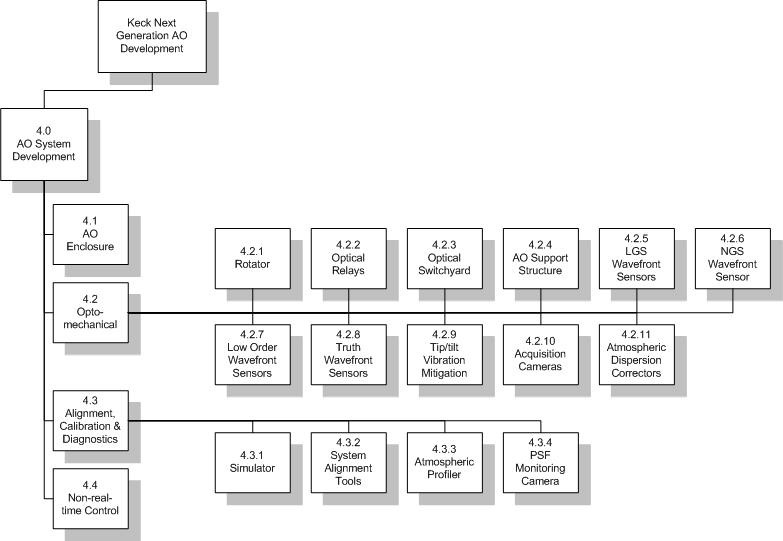

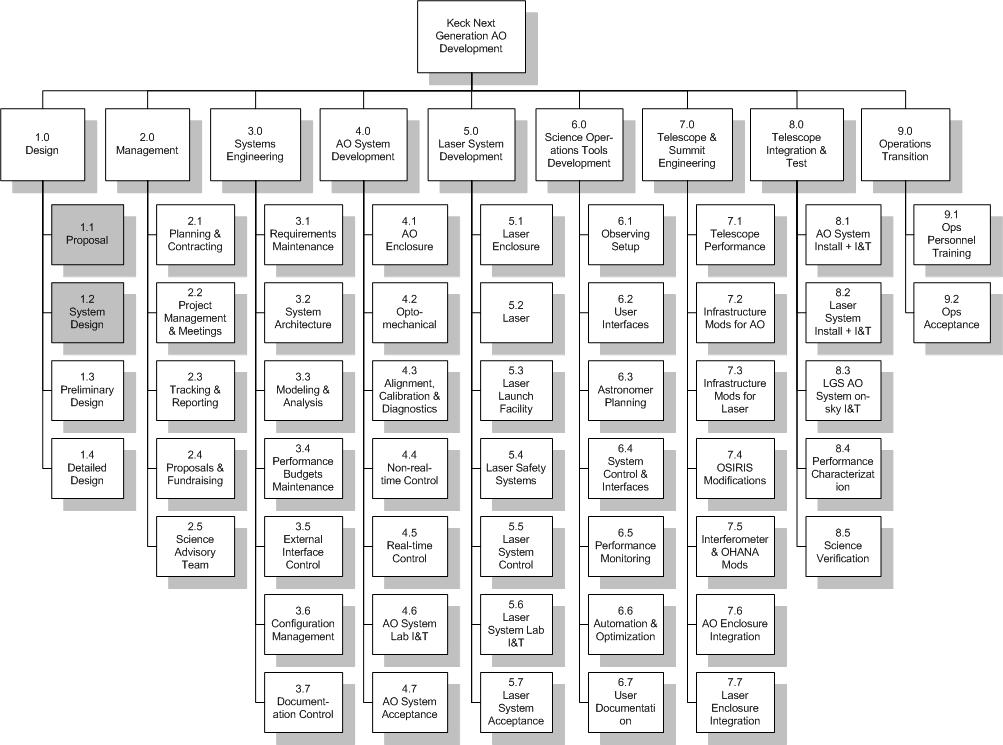

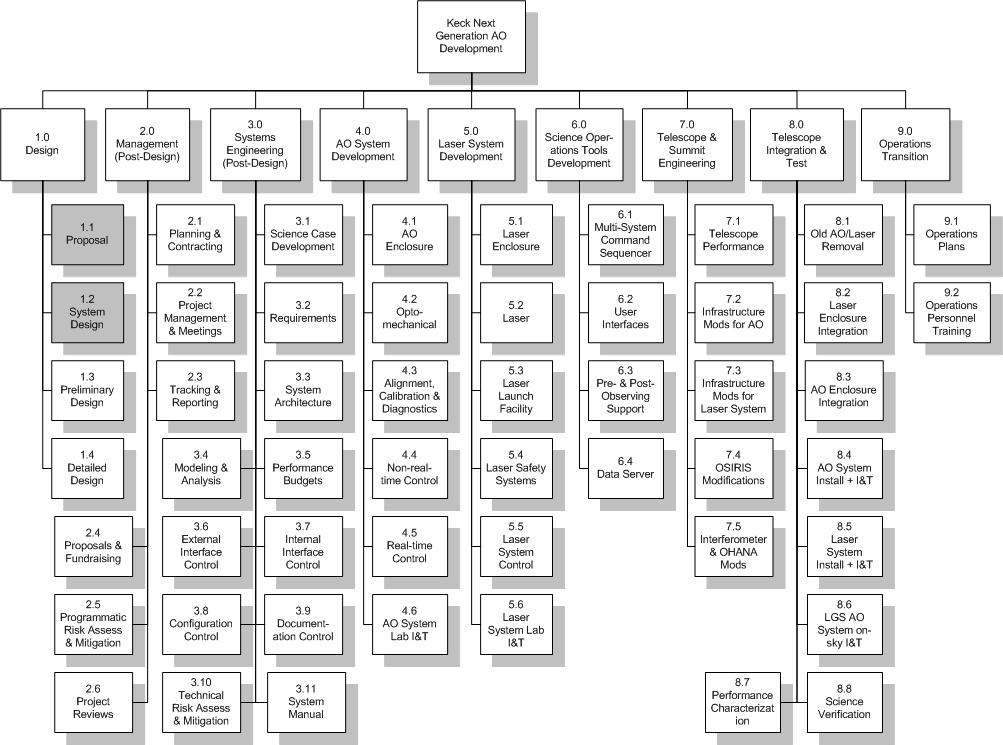

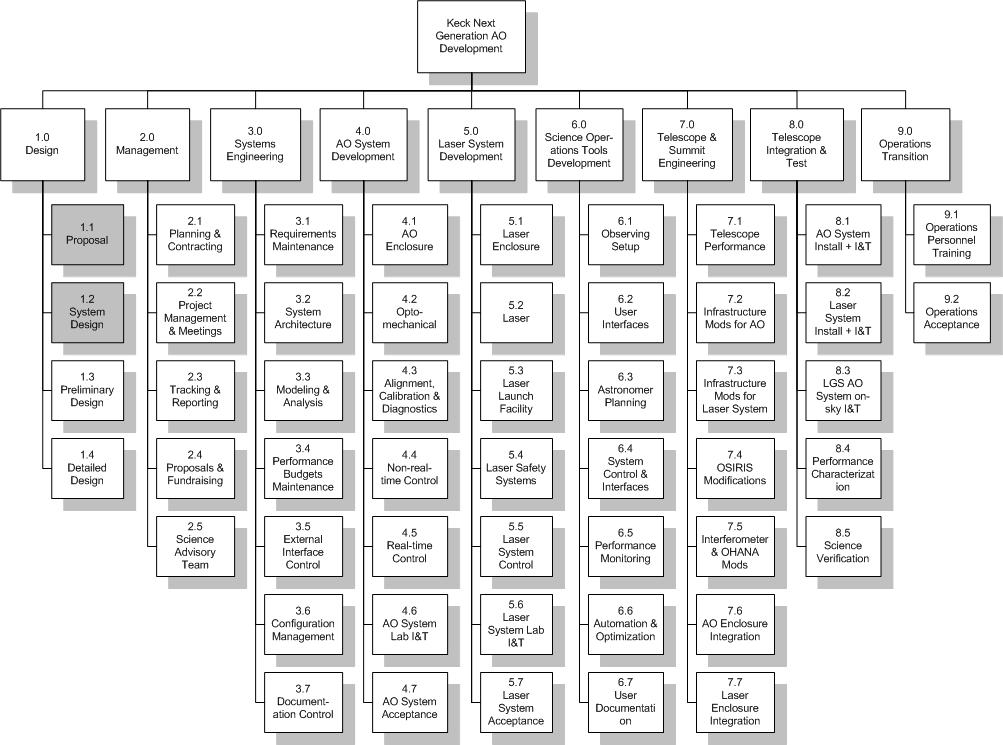

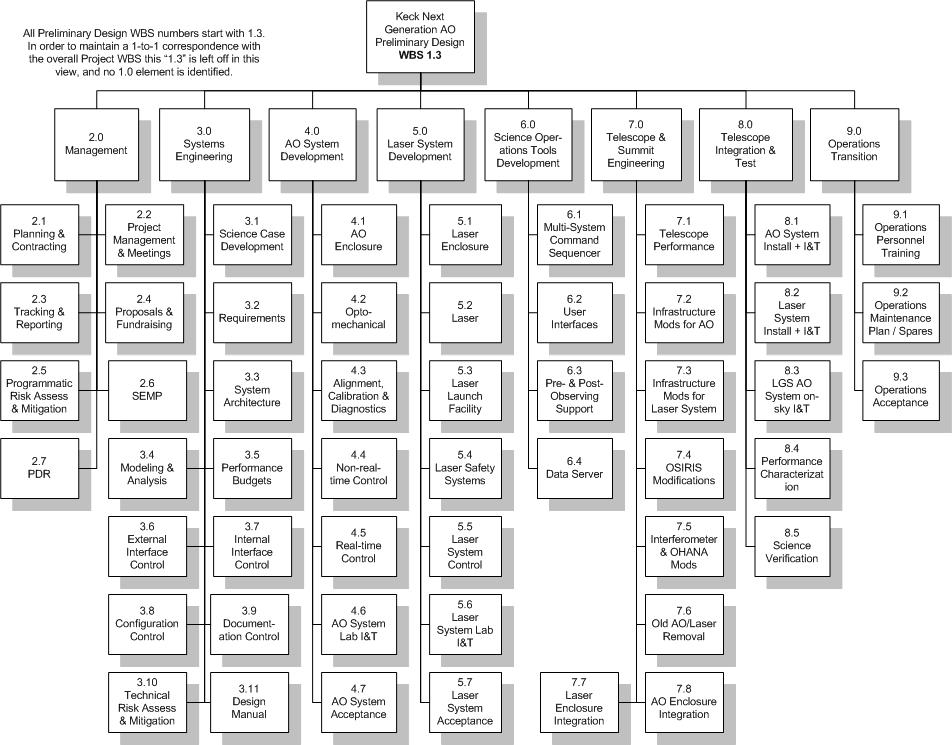

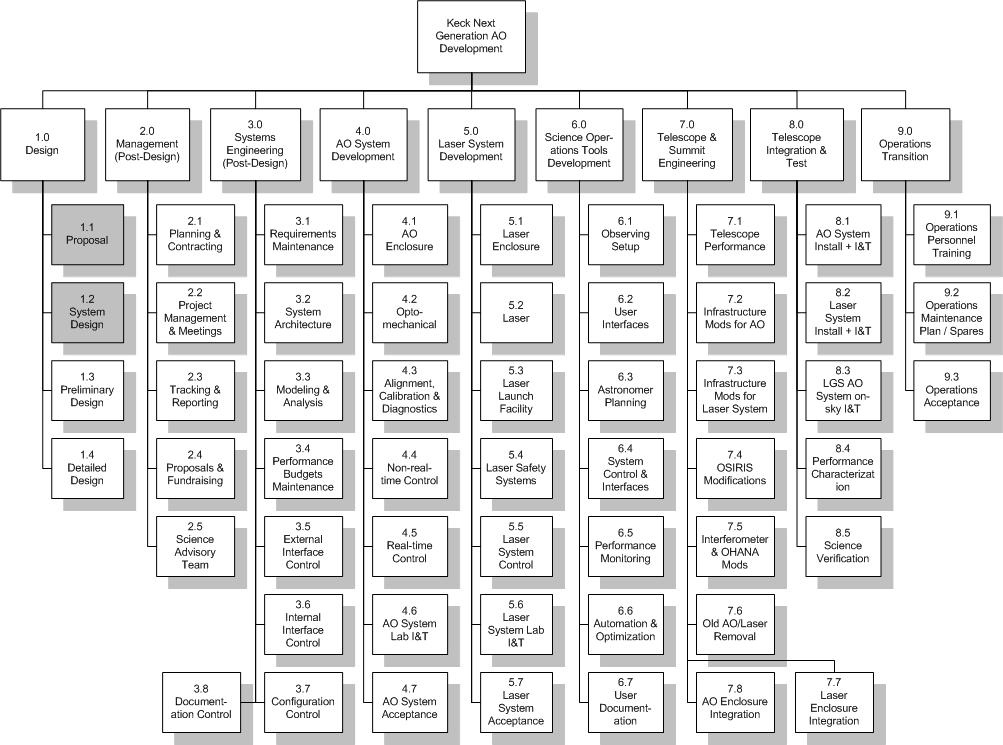

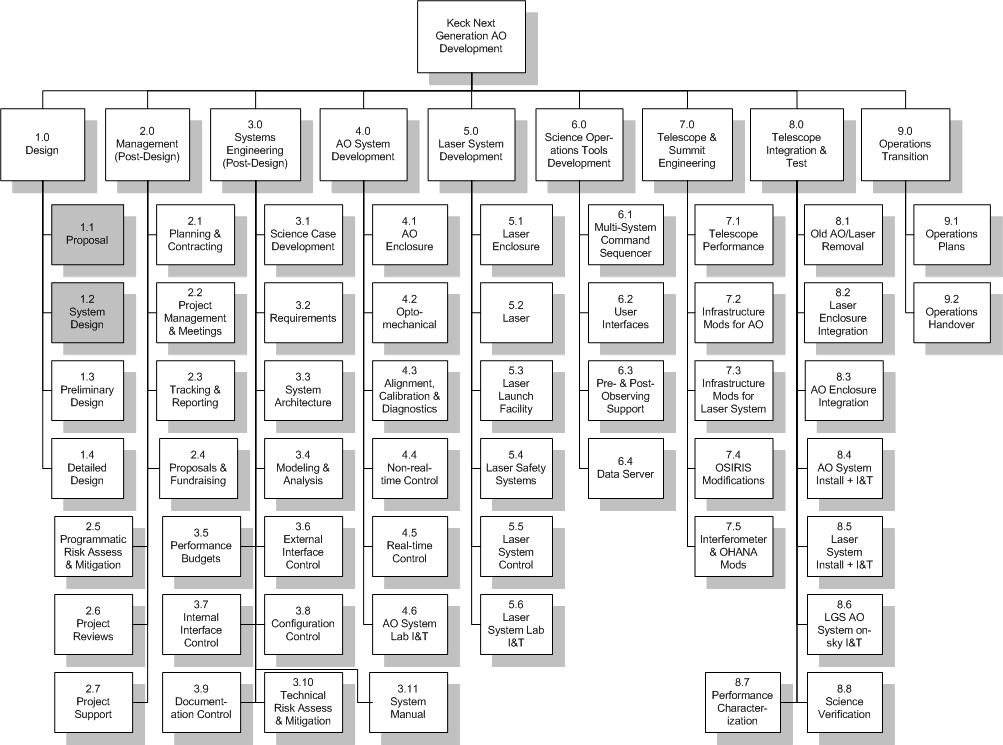

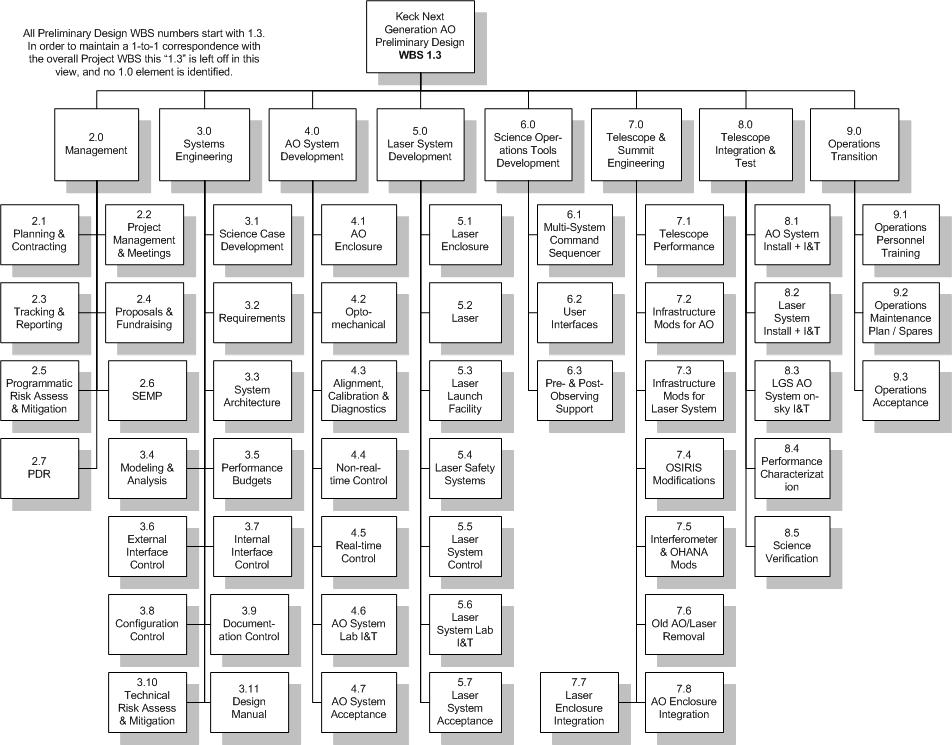

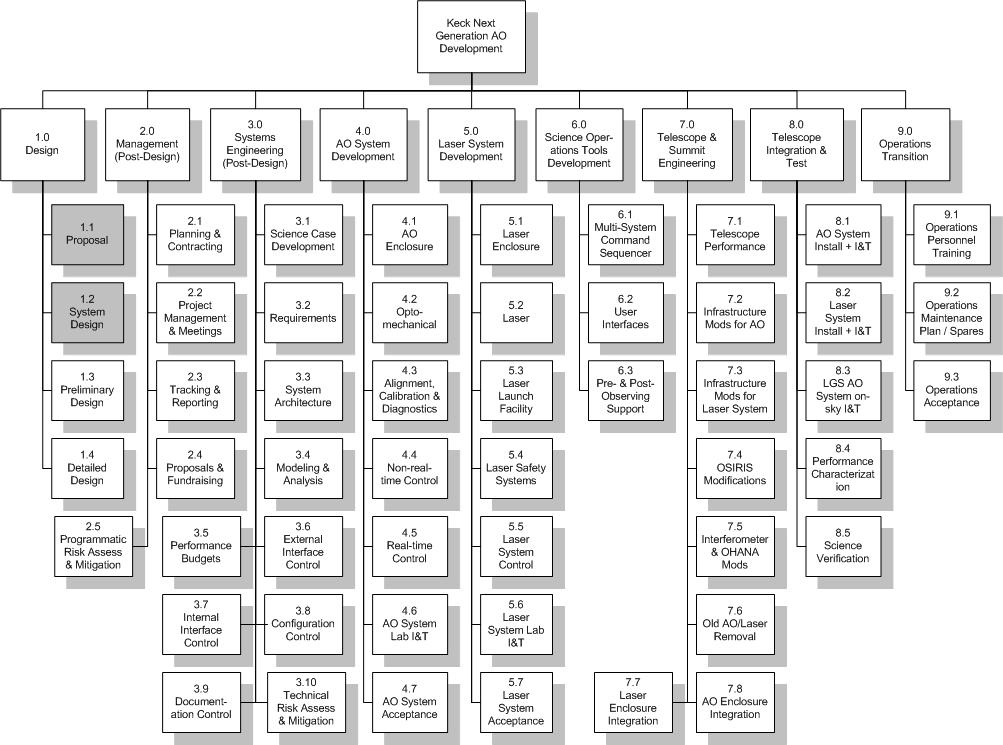

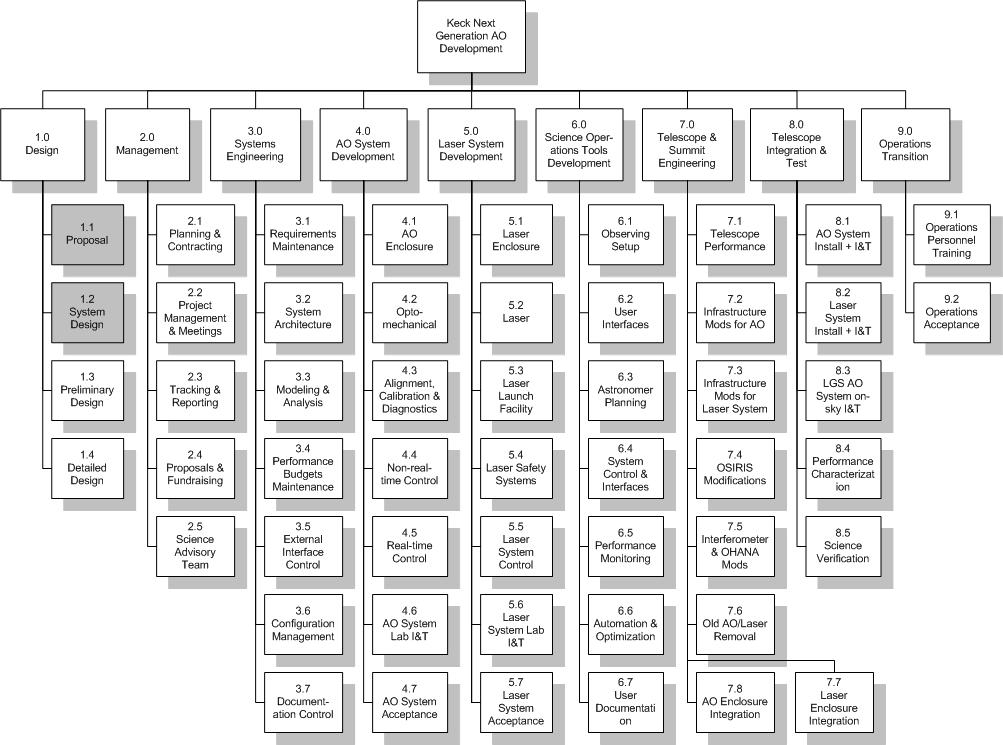

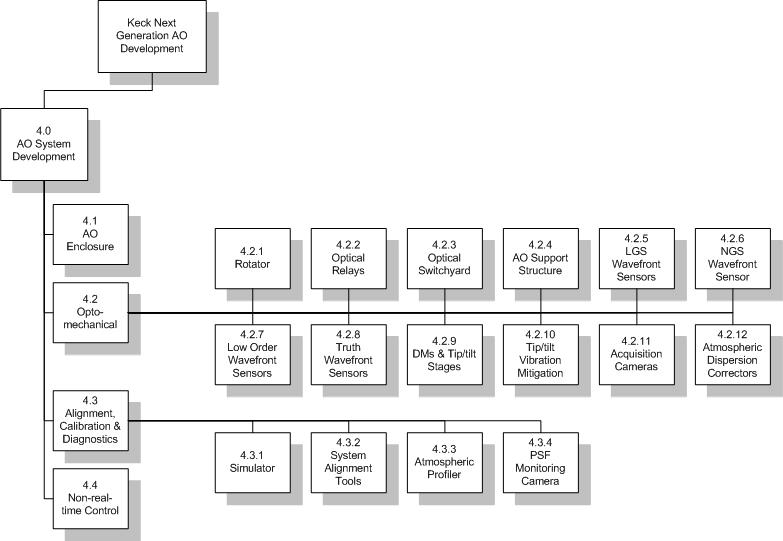

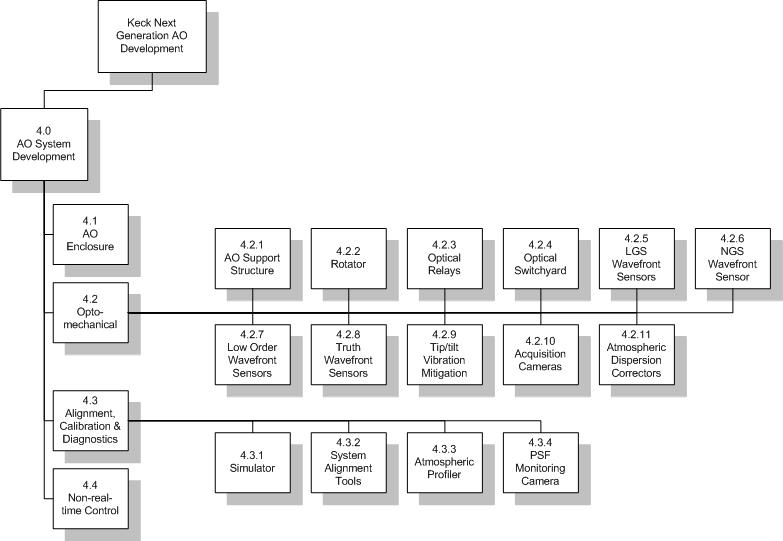

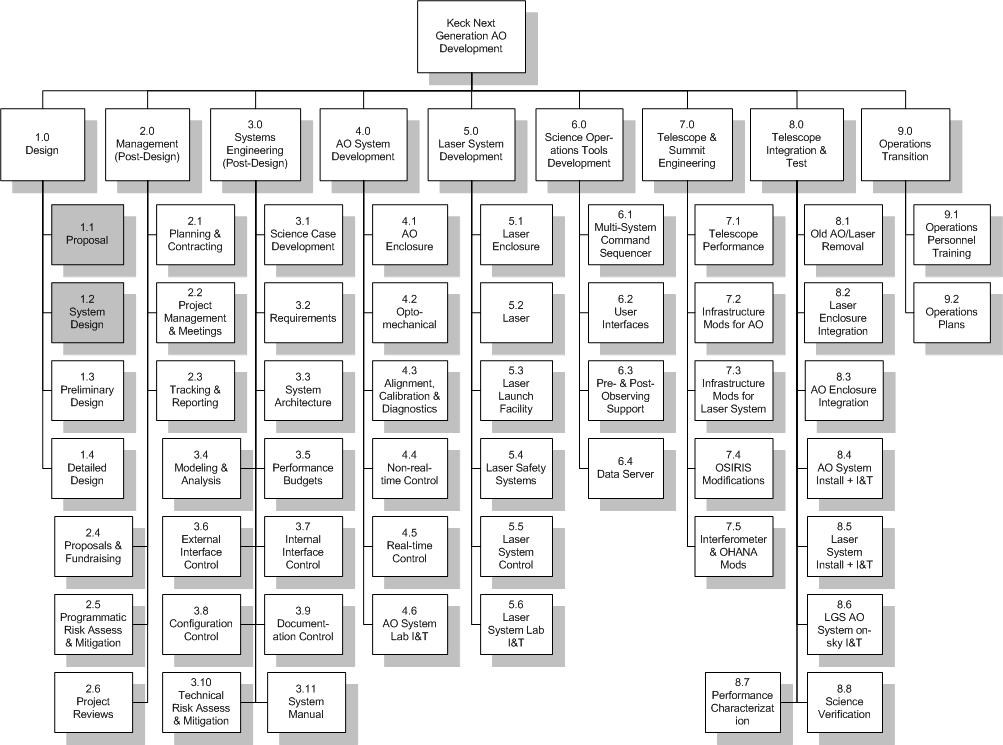

• Revised WBS chart (2/26/08). More details for AO System Opto-Mechanical WBS (2/19/08).
• Product Structure, in MSProject format version 1 (2/3/08) Version 2 (2/3/08) Version 3 (2/4/08) Version 4 (3/18/08) Version 5 (3/23/08)

WBS 4.1.2 Cost Estimation:

• The spreadsheet developed to produce a budget estimate for Chapter 6 of the NGAO proposal. See the "Budget" tab for the summary budget. This estimate was based on costs for each of the major subsystems developed in the tabs labelled "AO System", "Non-RT Control", "Laser System" and "Operations Tools".
• The cost estimate from the system architecture phase and accompanying notes (9/6/07).
• Initial thoughts on the cost estimation process from the 12/13/07 team telecon.
• Initial draft cost estimation KAON from the 12/13/07 team telecon, containing proposed costing guidelines.
• Link to 1/25/08 Cost Estimation Meeting page http://www.oir.caltech.edu/twiki_oir/bin/view/Keck/NGAO/080125_Remote_NGAO_Meeting_13.
• Link to Password-Protected SD Phase Cost Estimate Collection

WBS 4.1.3 Major Project Milestones:

• Draft Milestones for Project & Preliminary Design (2/5/08).

WBS 4.1.4 Full MS Project Plan:

• The MS Project schedule (gif) used in Chapter 5 of the NGAO proposal (6/14/06).
• Draft MS Project schedule (2/15/08).

WBS 4.2 Risk Assessment & Management Plan:

• KAON 510 Preliminary NGAO Technical Risk Evaluation
• Ranked Implementation Options in the event of incremental funding.

WBS 4.3 Preliminary Design Phase Plan:

• TSIP Proposal & MS Project Plan used in TSIP proposal (8/31/07).
• MS Project Plan provided for TSIP proposal (8/24/07).

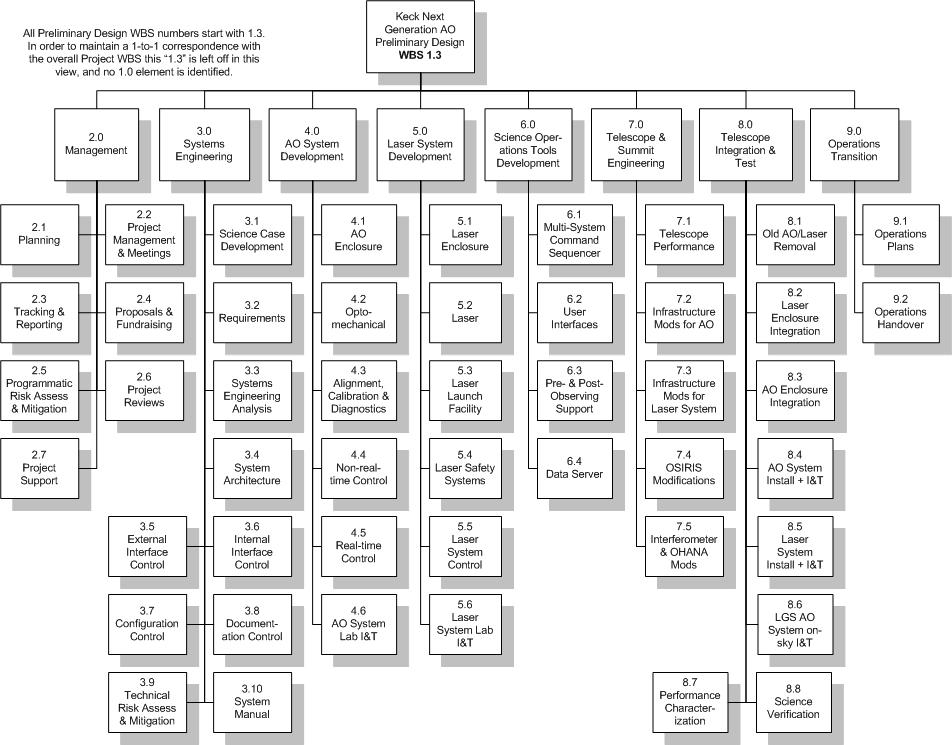

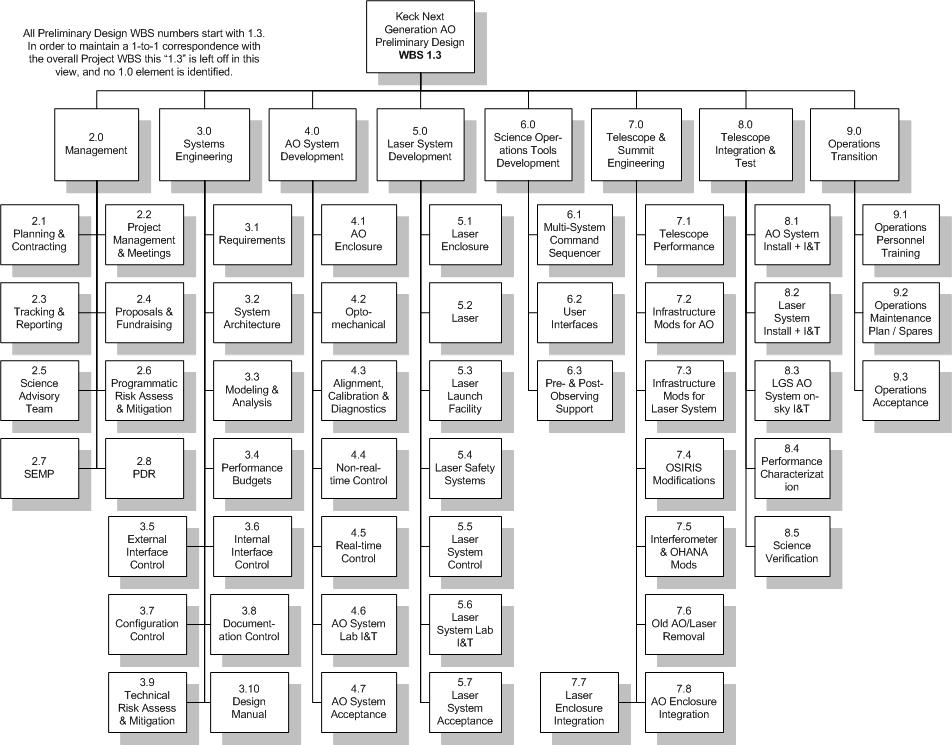

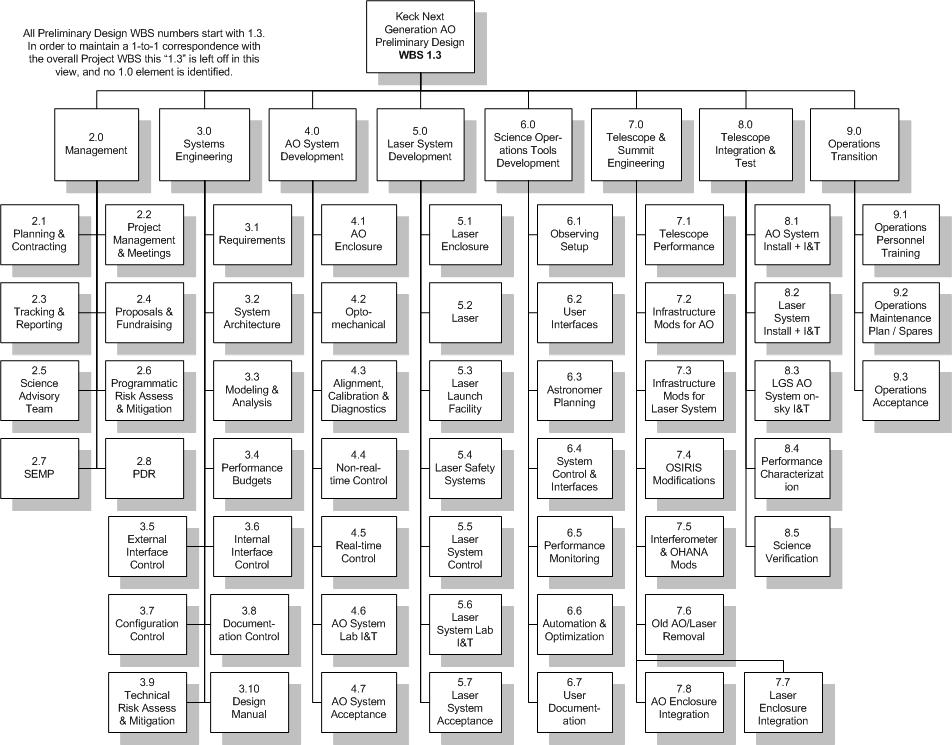

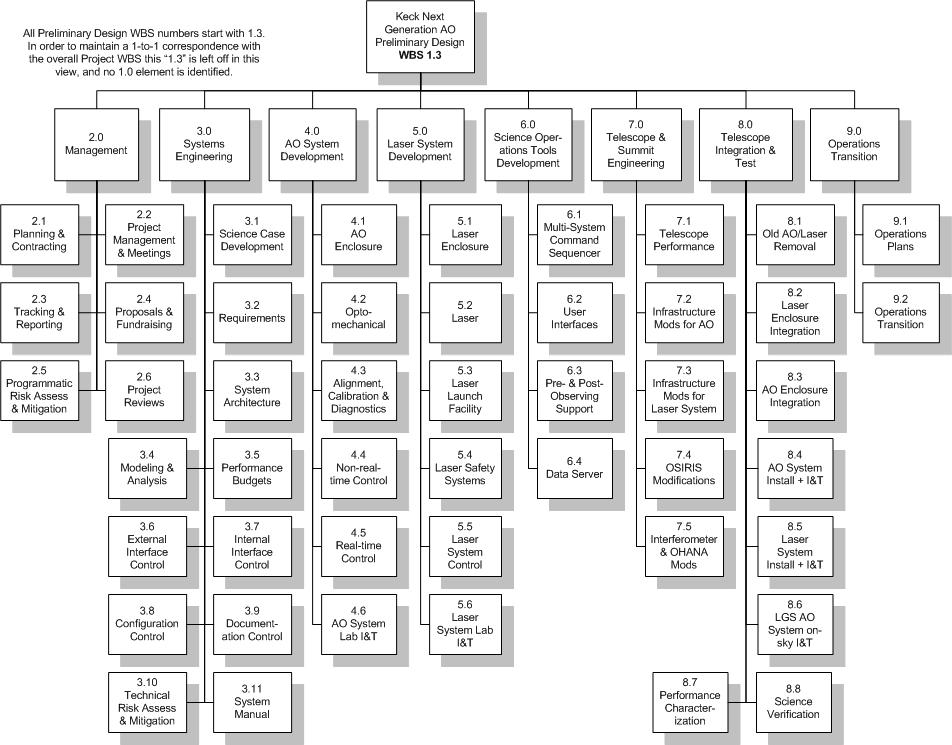

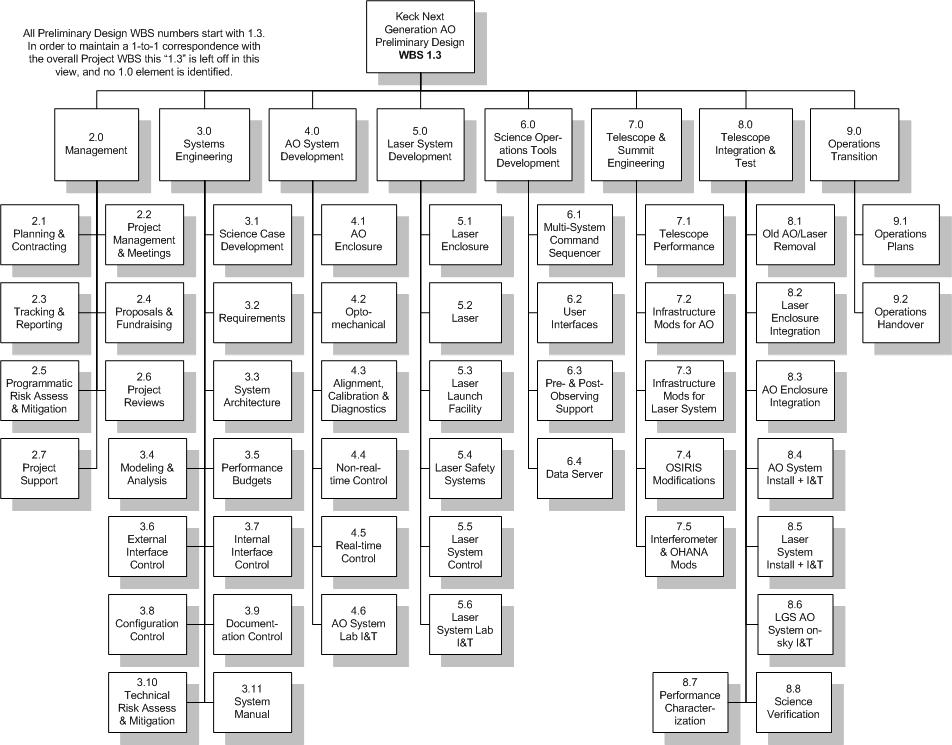

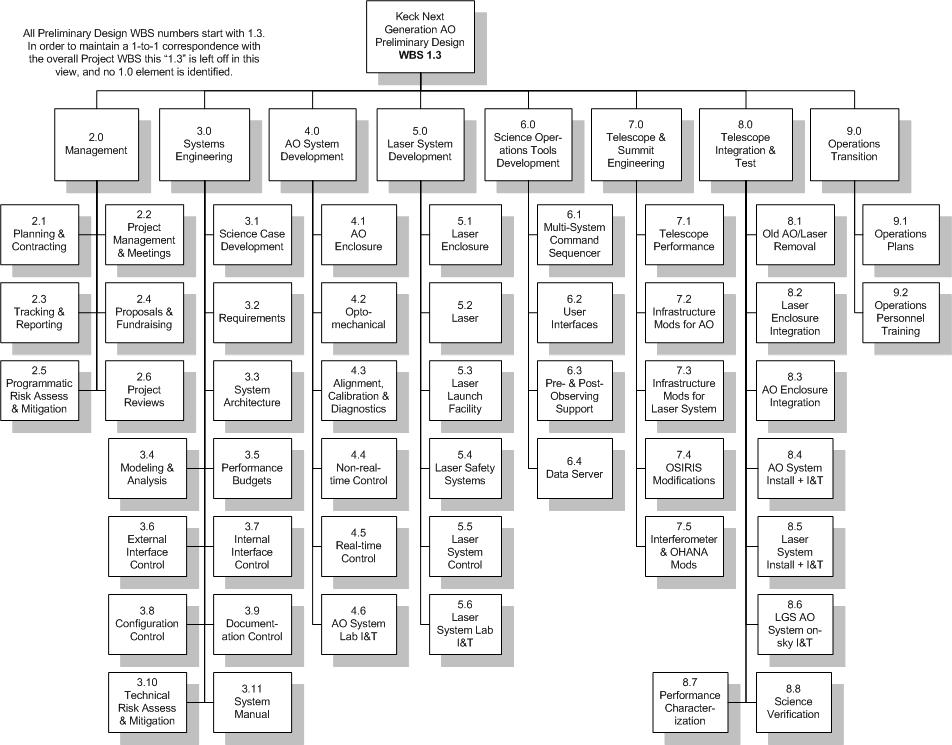

• Draft WBS chart (2/25/08).
• PD Phase MS Project schedule Work summary spreadsheet (v14 3/27/08).

WBS 4.4 Integration and Test Plans:

• I&T plan (link to New KAON Page) (3/26/08).

WBS 4.5 Configuration Management:

WBS 4.6 Project Management Plan:

WBS 4.7 Systems Engineering Management Plan (SEMP) Document:

• SEMP v0 (1/24/08).
