Laser Launch Telescope subsystem

The laser launch telescope is a 45 cm Magnin reflecting telescope mounted on the optical axis of the Hale Telescope, behind the secondary mirror.

General notes and analysis of LLT collimation and performance

  • Most recent sky test results (24 Aug, 2007 UT)
    • Seeing was stable, 0.5-0.6" FWHM in V.
    • After careful collimation, star images were 1.9" FWHM in LLT Pulnix, using RG610 filter (2.9" FWHM with no filter).
    • Laser spot, observed with AO acquisition camera immediately after, was 2.5" FWHM, highly comatic (diamond ring appearance).

Optical and Mechanical Models

Optical specifications and test data

Topic attachments
I Attachment History Action Size Date Who Comment

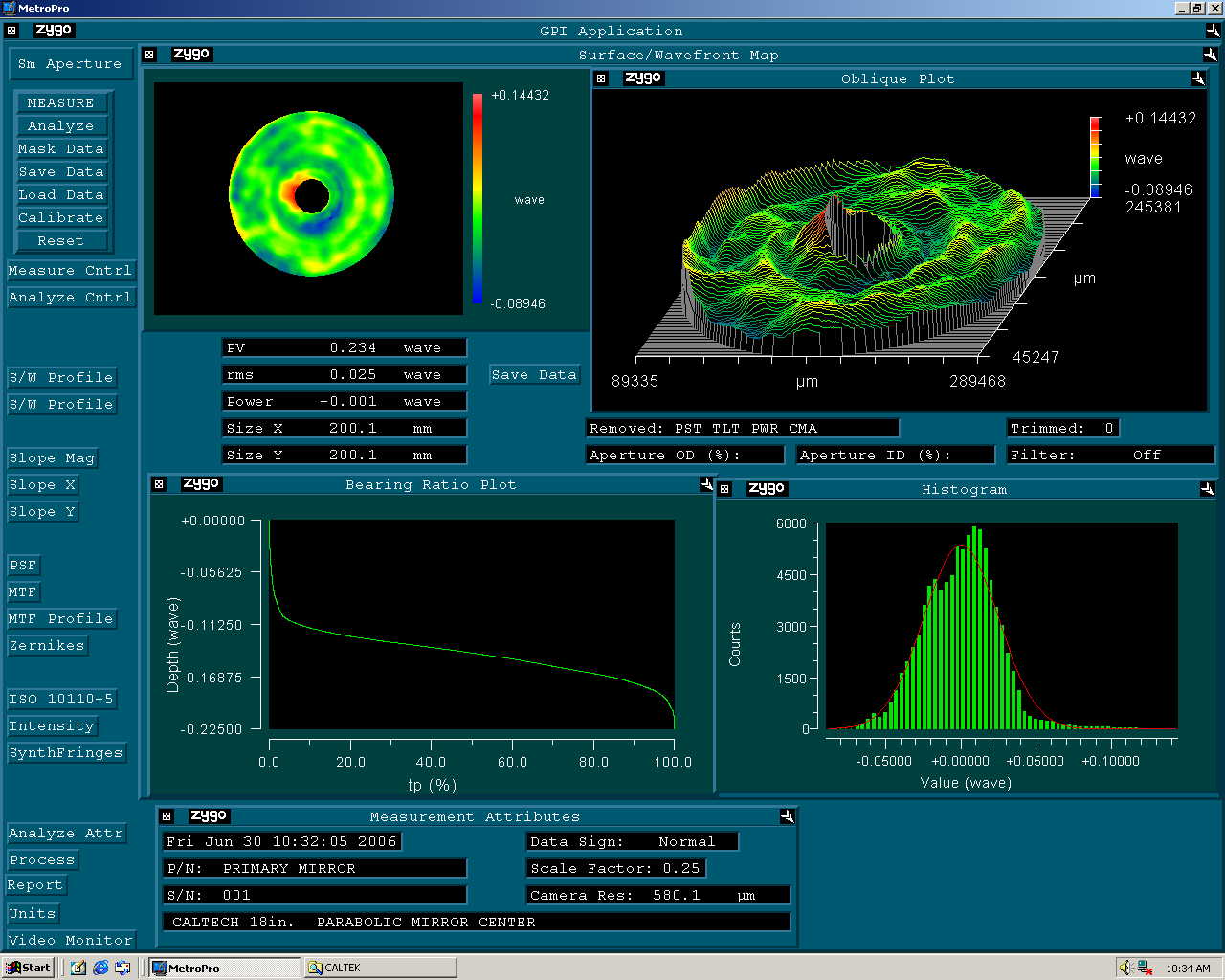

JPEGjpg CENTER.jpg r1 manage 170.5 K 2008-02-21 - 18:46 AntoninBouchez

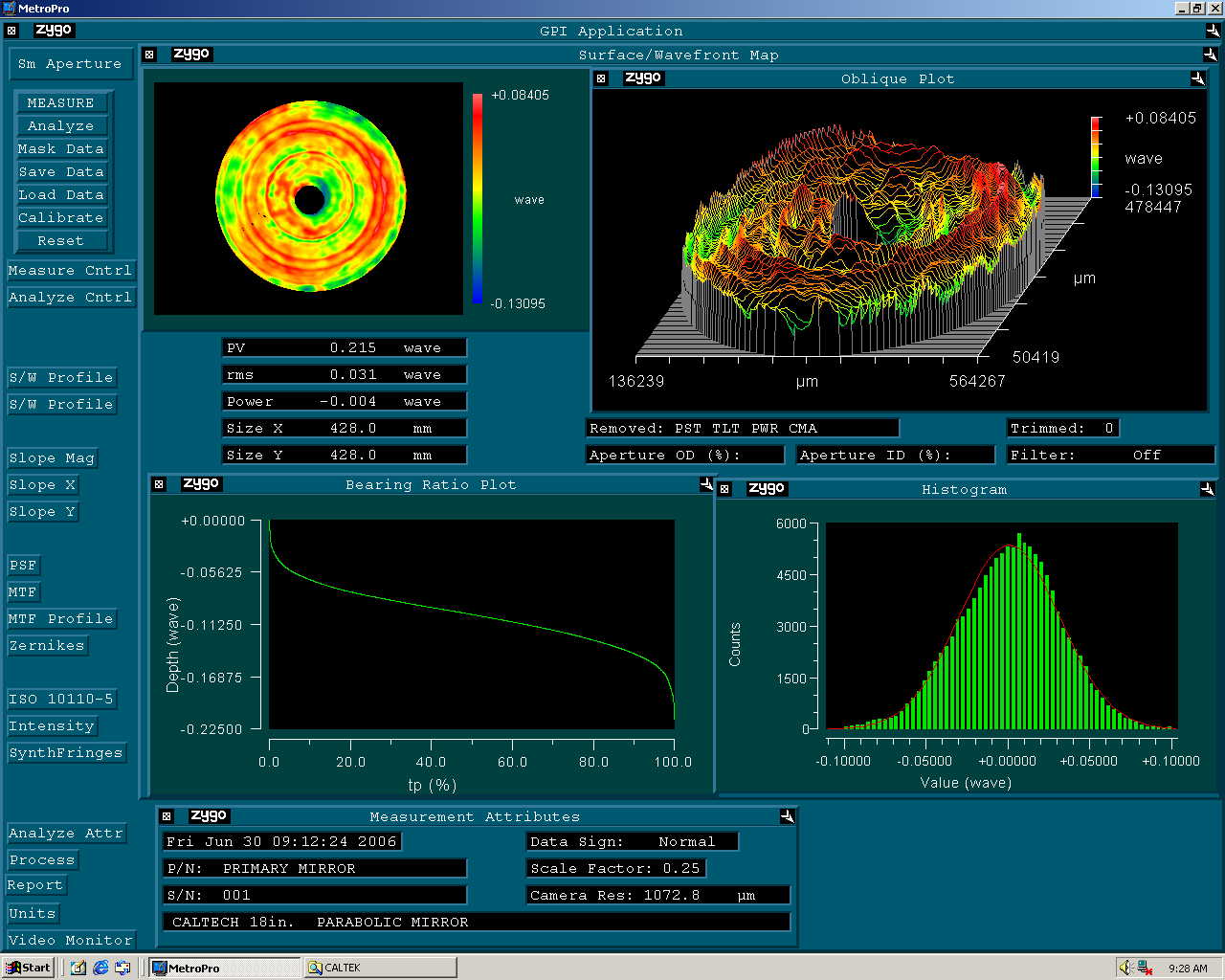

JPEGjpg FINAL-PRI.jpg r1 manage 177.2 K 2008-02-21 - 18:46 AntoninBouchez
Texttxt FINAL-PRI.txt r1 manage 0.7 K 2008-02-21 - 18:46 AntoninBouchez
PDFpdf LLT_Collimation_and_Flexure.pdf r1 manage 51.2 K 2006-05-11 - 22:29 AntoninBouchez Collimation and flexure with 10" mirror - Hal Petrie

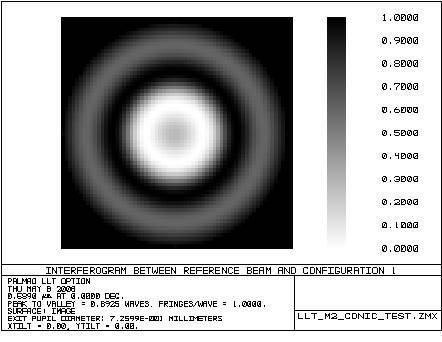

JPEGJPG LLT_if_M2_spherical.JPG r1 manage 26.4 K 2008-05-08 - 20:19 RichardDekany zemax interferogram of ball bearing test
PDFpdf PALO_LLT_M2.pdf r1 manage 266.7 K 2008-02-21 - 19:38 AntoninBouchez
Unknown file formathas llt_080710_newsec_01.has r1 manage 168.8 K 2008-07-11 - 17:57 AntoninBouchez
Unknown file formathas llt_080710_newsec_02.has r1 manage 169.4 K 2008-07-11 - 17:57 AntoninBouchez
Unknown file formathas llt_080710_newsec_03.has r1 manage 169.2 K 2008-07-11 - 17:57 AntoninBouchez
Unknown file formathas llt_080710_newsec_04.has r1 manage 169.1 K 2008-07-11 - 17:57 AntoninBouchez
Unknown file formathas llt_080710_newsec_05.has r1 manage 169.2 K 2008-07-11 - 17:58 AntoninBouchez
Unknown file formathas llt_080710_oldsec_01.has r1 manage 139.9 K 2008-07-11 - 17:56 AntoninBouchez
Unknown file formathas llt_080710_oldsec_02.has r1 manage 140.0 K 2008-07-11 - 17:56 AntoninBouchez
Unknown file formathas llt_080710_oldsec_03.has r1 manage 139.7 K 2008-07-11 - 17:56 AntoninBouchez
Unknown file formathas llt_080710_oldsec_04.has r1 manage 140.0 K 2008-07-11 - 17:56 AntoninBouchez
Unknown file formathas llt_080710_oldsec_05.has r1 manage 140.0 K 2008-07-11 - 17:57 AntoninBouchez
Texttxt llt_hal_060806.txt r1 manage 6.7 K 2006-06-09 - 00:15 AntoninBouchez Changes to LLT for June 2006 run - HP 6/8/06
PDFpdf llt_tolerance_rukiah_01.pdf r1 manage 127.5 K 2008-02-21 - 18:59 AntoninBouchez
PDFpdf llt_tolerance_rukiah_02.pdf r1 manage 123.1 K 2008-02-21 - 18:59 AntoninBouchez

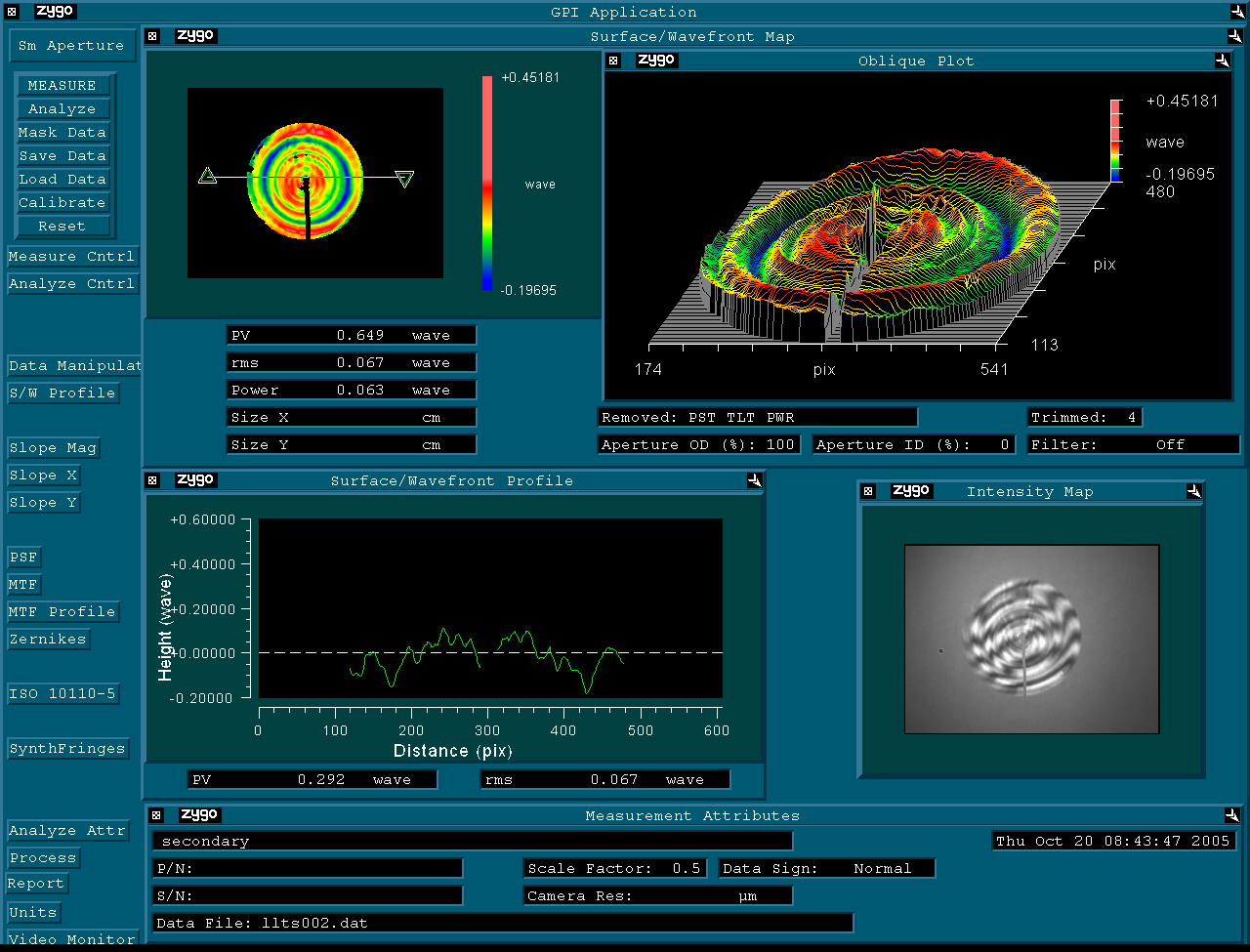

Bitmapbmp llts002_ball_bearing_test.bmp r1 manage 3656.3 K 2008-05-08 - 20:23 RichardDekany M2 Zygo data ball bearing test
