- LLT-FULL-ASSEMBLY_18_Inch_Diagnostics.EASM: Edrawings file of full LLT model - H. Petrie, 2/25/08.
Externally supplied SW part models of components
- Newport-U100-A2K-NL.SLDPRT: Newport 1" kinematic mirror mount
- Newport-U100-AC.SLDPRT: Newport 1" kinematic mirror mount
- 13287-E0W-kmcp.sldprt: Thorlabs centering plate for FM90 flip mount
- 6597-E0W-kmcp.sldprt: Thorlabs flip mount
- 6892-E0W-upha.sldprt: Thorlabs swivel base
- 13282-E0W-uph1.sldprt: Thorlabs Universal 1inch height post holder
- 0001-E0W-lmr1.sldprt: Thorlabs lens mount for 1inch dia
- 7661-E0W-fmp1.sldprt: Thorlabs optical mount for 1inch dia
- 0333-E0W-tr1.sldprt: Thorlabs Universal 1inch height post 0.5inch diameter
SW part models of components by Anna Moore
- thorlabs-MB1248.SLDPRT: Thorlabs component MB1248 (breadboard) by Anna Moore
- thorlabs-MB1248-LLTdiagnostics.SLDPRT: Thorlabs component MB1248 (breadboard) cut to fit space requirements by Anna Moore
DXF/scanned mechanical part models of components
- 14050-E0W-mb1248.DXF: Thorlabs component MB1248 (breadboard)

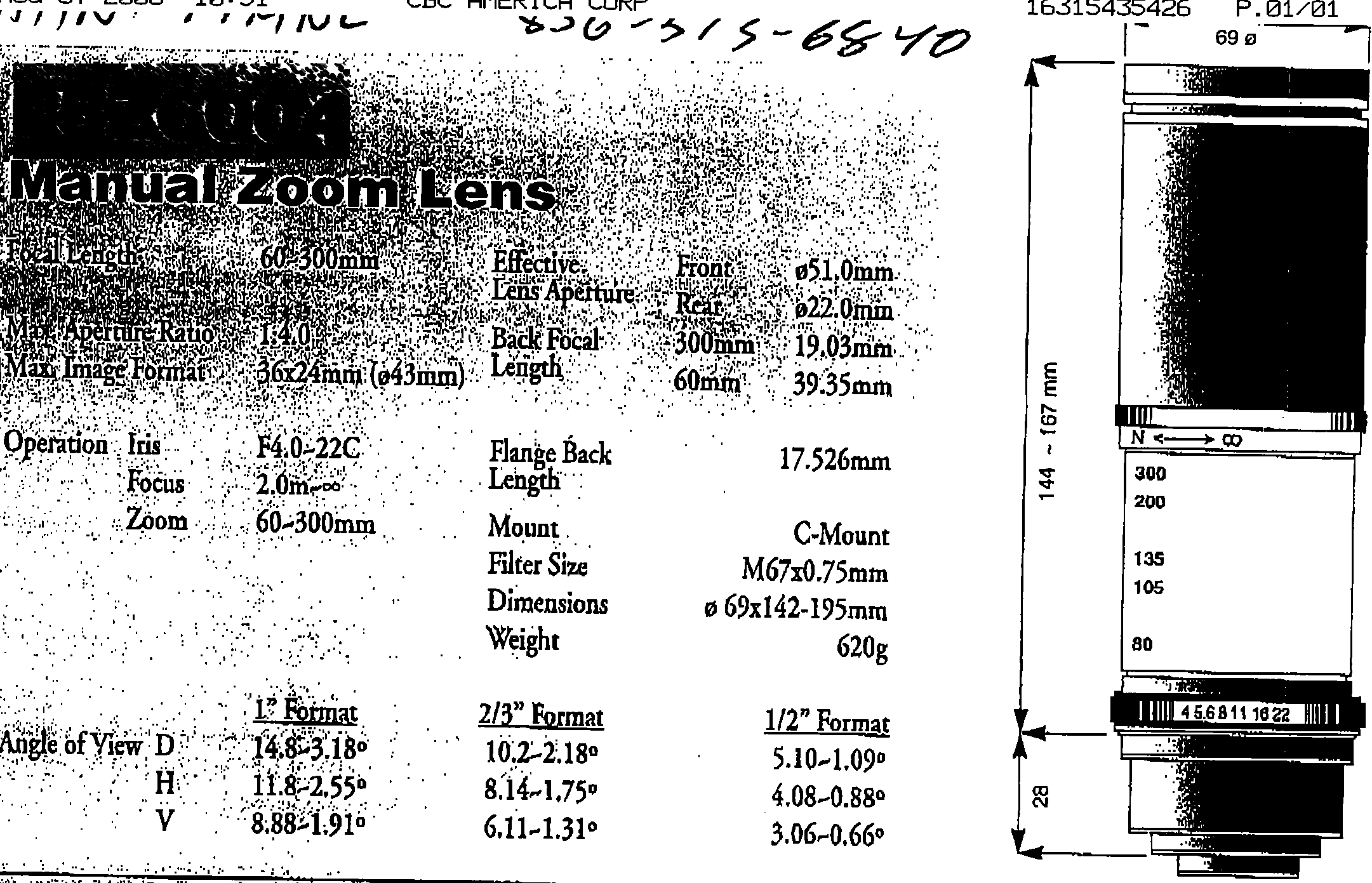

- 57741.bmp: Thorlabs component 57-741 f60-300mm telephoto lens for sky viewing camera
