Working files for 102018 interface meeting

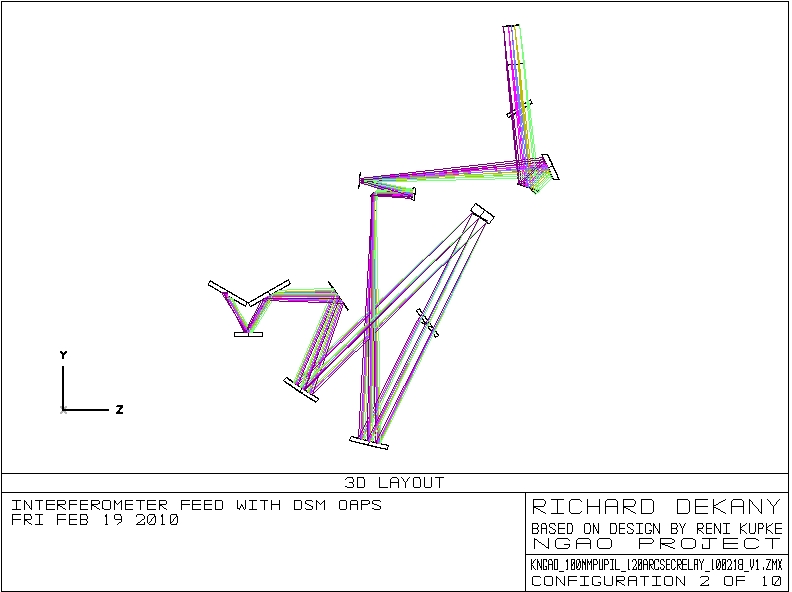

Slightly tweeked version of Reni's layout v9

  • KNGAO_100mmpupil_120arcsecRelay_100218_v1.ZMX
    • Output science fold mirror tilt opened by 5 degrees (from -20 deg to -25 deg)
    • Na dichroic moved 'downstream' 50 mm
    • Na dichroic tilt opened by 9 degrees (from 19 deg to 28 deg)
    • IF dichroic moved 'upstream' 50 mm
    • IF dichroic tilt closed by 3 degrees (from 45 deg to 42 deg)
    • IF final fold mirror (config 6) opened 3 degrees (from -9 deg to -12 deg) to 'approx' return IF output to similar point
    • IF final fold mirror (config 7) opened 3 degrees (from -5.4 deg to -8.4 deg) to 'approx' return IF output to similar point
    • Minor refocusing due to change in plane parallel plate tilts (may not be rigorously consistent with each configuration)

  • The 'swinging instrument fold' versions of this layout are minor tweaks
    • Output fold mirror 25 mm 'downstream' away from OAP4
    • New coordinate break object to offset the fold rotation point to approx. it's edge point
    • Rotation of Inst #2 'config0001b' direction is set to give output gut ray approx parallel to the telescope axis entering the NGAO K-mirror
    • Required motion of fold mirror is about 50 degrees (full range) to switch between Instr 1 and Instr 2


KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0001.IGS gutrays_config0001.IGS Sci path - no NGS WFS dichroic in beam
KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0002.IGS gutrays_config0002.IGS Sci path
KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0003.IGS gutrays_config0003.IGS NGS WFS path - with 'old' 3 fold mirror layout
KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0004.IGS gutrays_config0004.IGS Path to LOWFS input including IF feed
KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0005.IGS gutrays_config0005.IGS Path to LOWFS - on IF feed
KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0006.IGS gutrays_config0006.IGS IF feed Arm 1
KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0007.IGS gutrays_config0007.IGS IF feed Arm 2
KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0008.IGS gutrays_config0008.IGS Acquisition path
KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0009.IGS gutrays_config0009.IGS LGS path - 90 km conjugate
KNGAO_100mmpupil_120arcsecRelay_100218_v1_configs_config0010.IGS gutrays_config0010.IGS LGS path - 180 km conjugate
gutrays_all.IGS
KNGAO_100mmpupil_120arcsecRelay_100218_v3_swinging_instrument_fold_config0001a.IGS gutrays_config0001a.IGS to Instr #1
KNGAO_100mmpupil_120arcsecRelay_100218_v3_swinging_instrument_fold_config0001b.IGS gutrays_config0001b.IGS to Instr #2

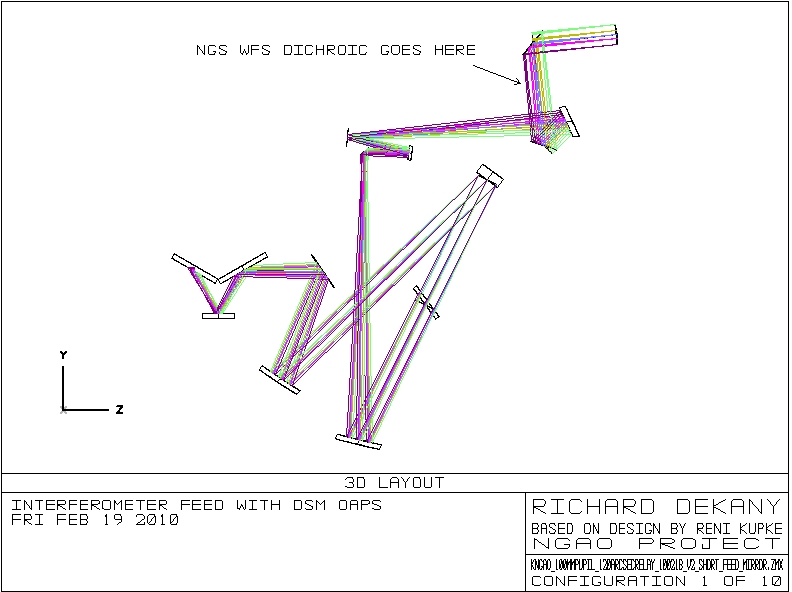

Add'l config showing one of our 2nd instrument feed options, an insertable fold after the NGS WFS dichroic

  • KNGAO_100mmpupil_120arcsecRelay_100218_v2_short_feed_mirror.ZMX
    • Tilted NGS WFS dichroic 'up' out of plane (incidence angle of -40 deg)
    • Moved NGS WFS dichroic 'upstream' as much as comfortable (to be 350 mm after 'switchyard' fold)
    • Inserted 'removable' fold mirror with incidence angle 45 degrees at location ~ 150 mm 'downstream' of the NGS WFS dichroic
    • Note: None of the configurations on this page consider room for the (presumably) 2 different instrument ADC's


KNGAO_100mmpupil_120arcsecRelay_100218_v2_short_feed_mirror_configs_config0001.IGS gutrays_config0001.IGS

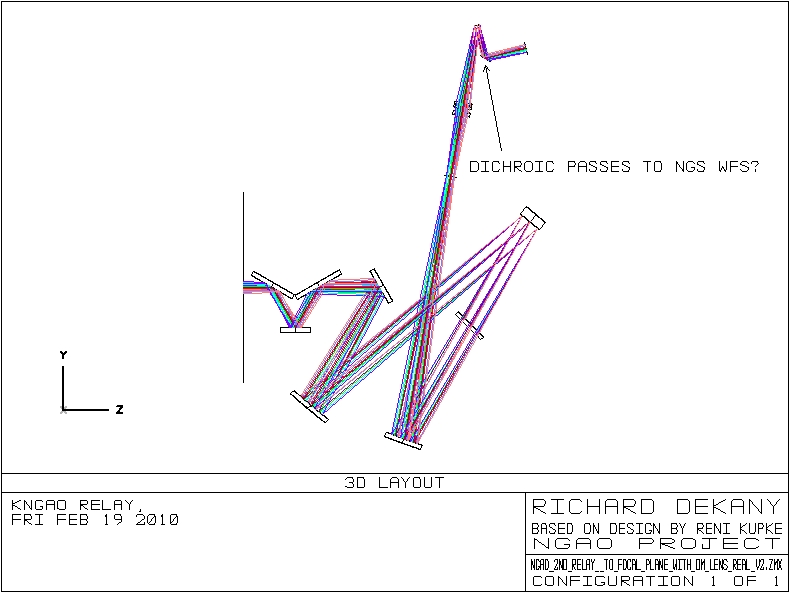

Back to Reni's v9, but now with 2nd stage refractive collimator and possible articulating output fold mirror to feed 2 instruments

Again, ADC not shown (would have to assume each instrument handles it's own ADC...)

  • NGAO_2nd_relay__to_focal_plane_with_DM_Lens_Real_v2.JPG:

(3/3/2010) NGS WFS pick off before OAP4 w/ a f/20 NGSWFS output - Velur's design (based on input from Rich about geometry)

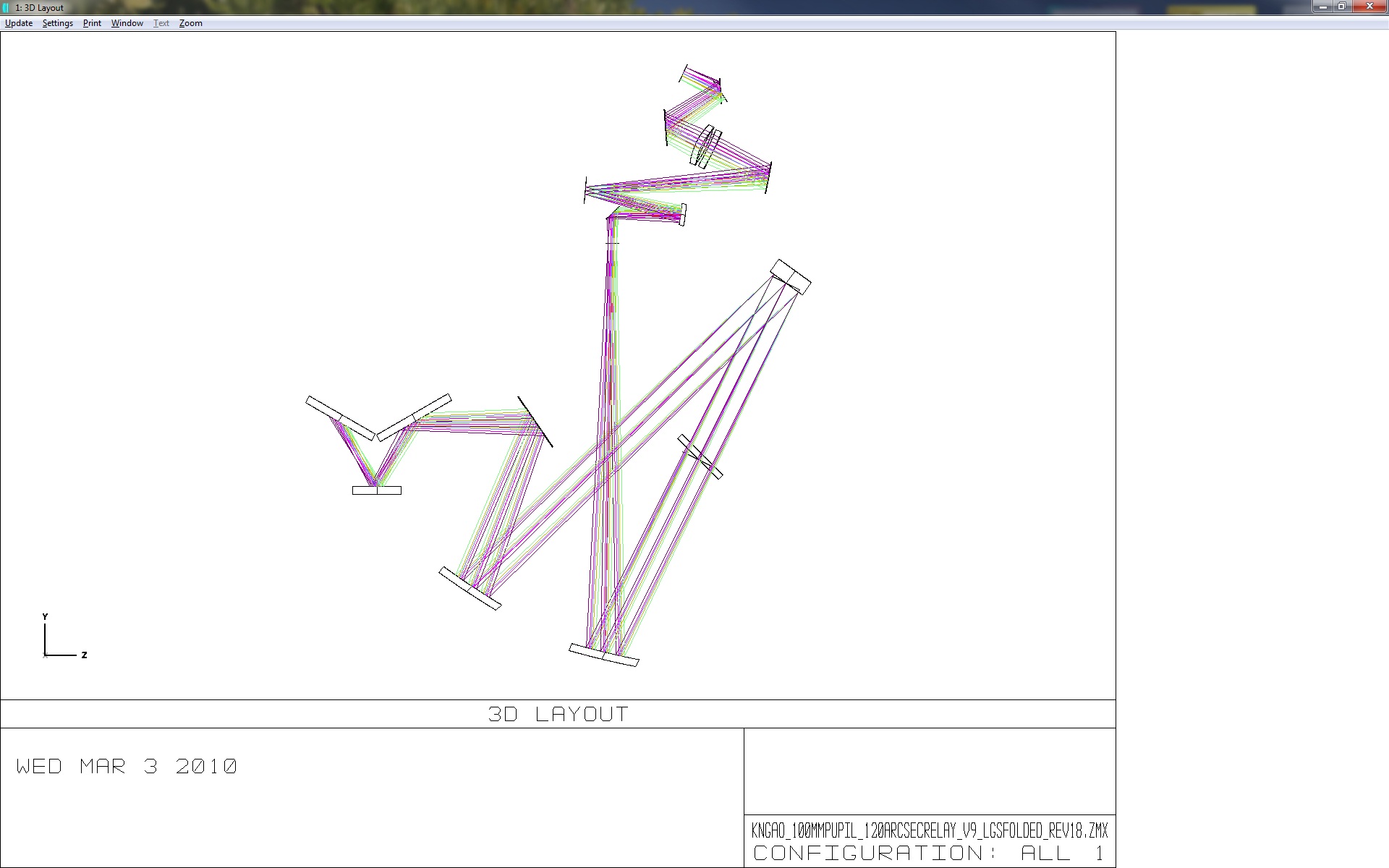

  • 3d layout:

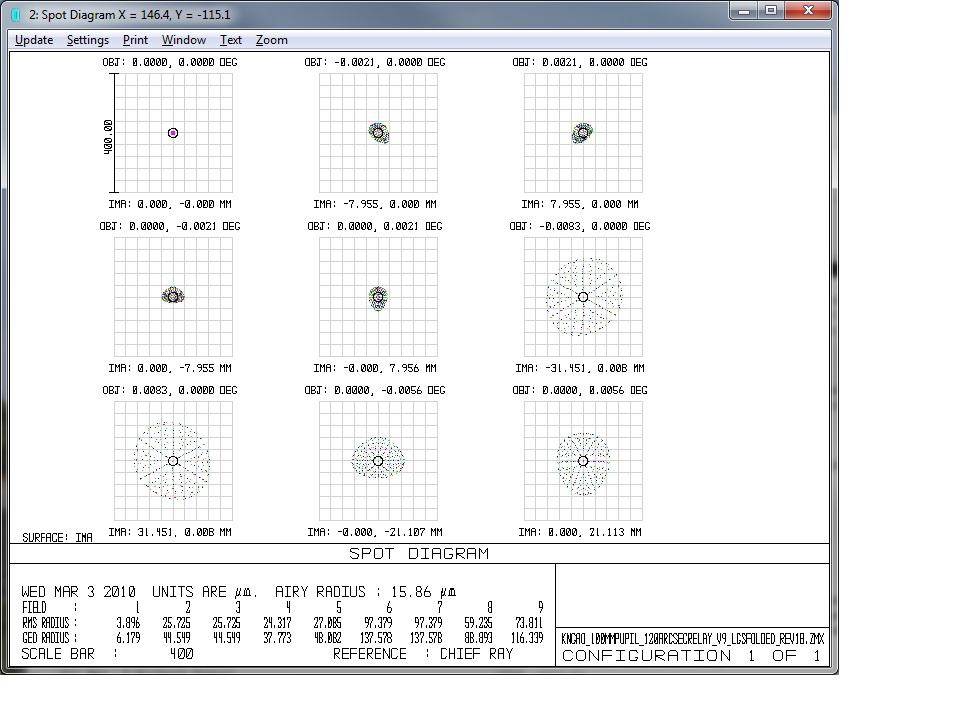

  • spot diagram:

(3/16/2010) NGSWFS latest design with geometry fixed
