LGS tetrad asterism 20" radius

Plot key: Orange stars = LGS location, Blue cross = evaluation point (5" spacing on axis) (15" spacing off axis)

-- ChrisNeyman - 02 Mar 2009

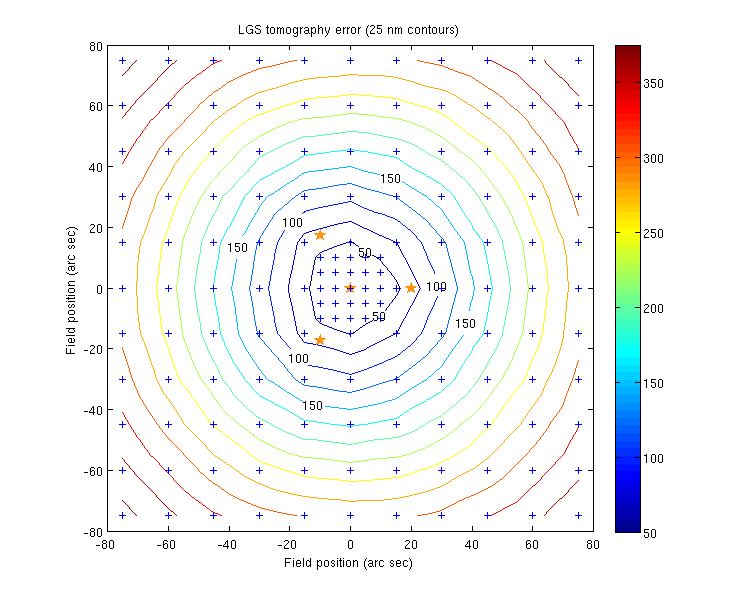

  • Contour plot:

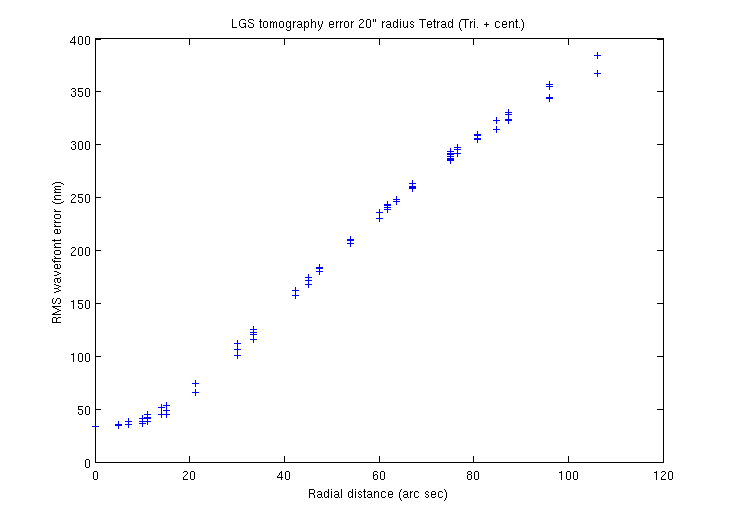

  • Radial plot:

45 degrees zenith angle

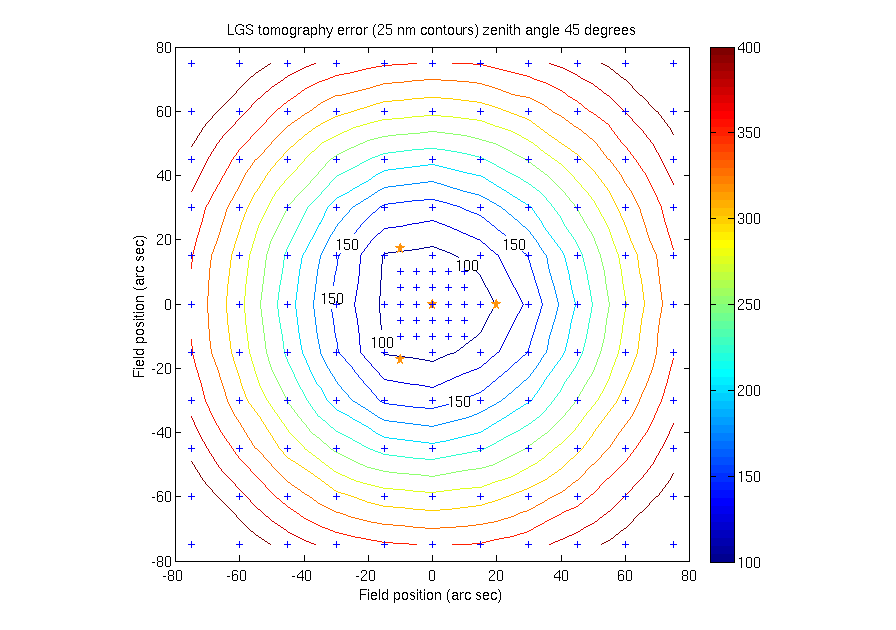

  • Contour plot:

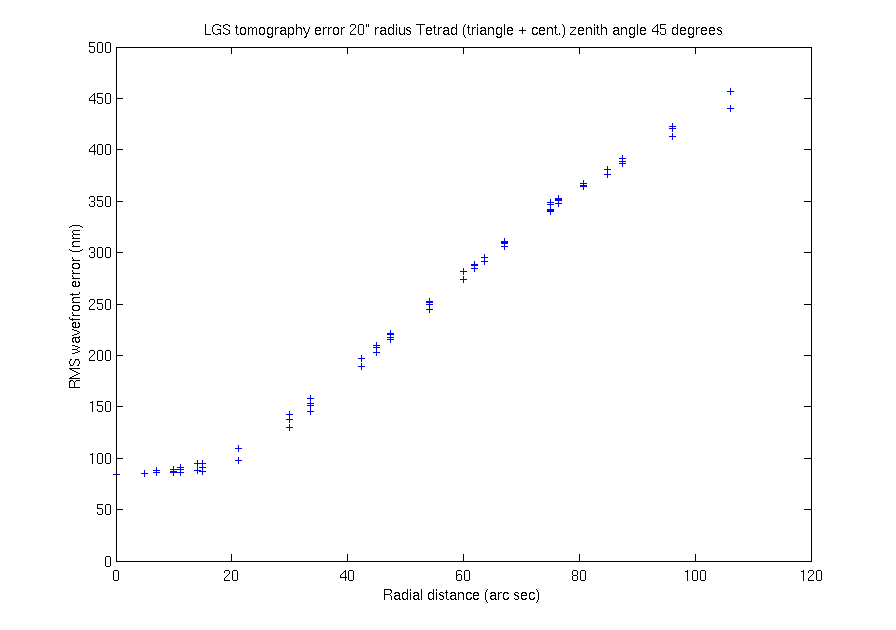

  • Radial plot:

60 degrees zenith angle

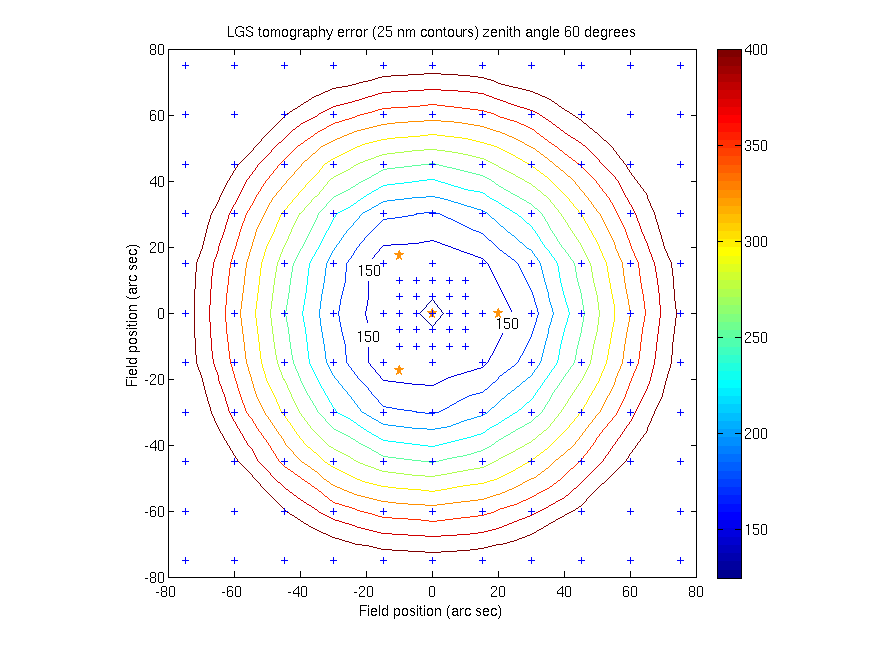

  • Contour plot:

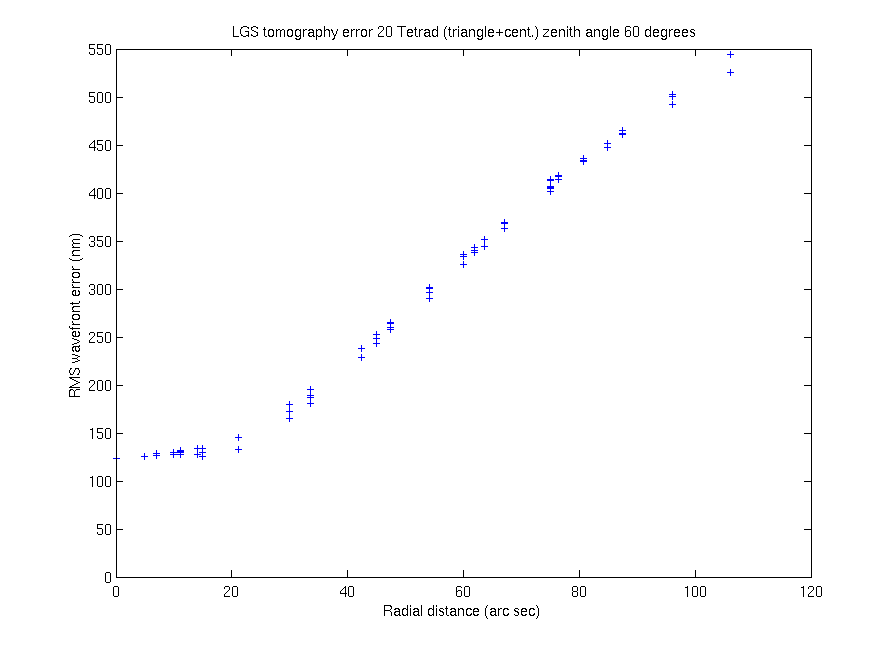

  • Radial plot:
