LGS pentagon asterism 50" radius

Plot key: Orange stars = LGS location, Blue cross = evaluation point (5" spacing on axis) (15" spacing off axis)

-- ChrisNeyman - 02 Mar 2009

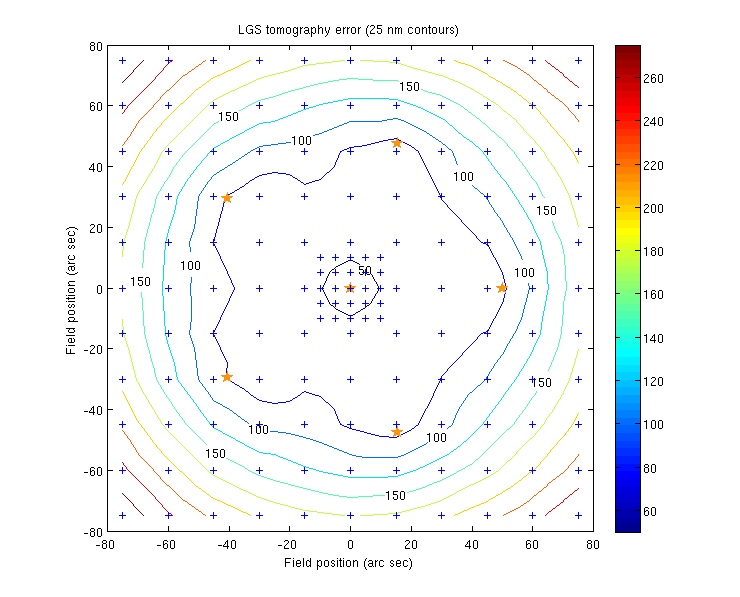

  • Contour plot:

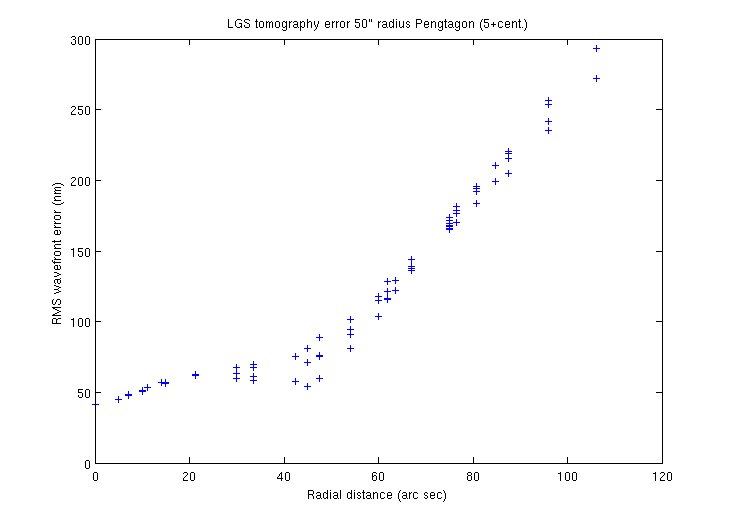

  • Radial plot:

Zenith angle 45 degrees

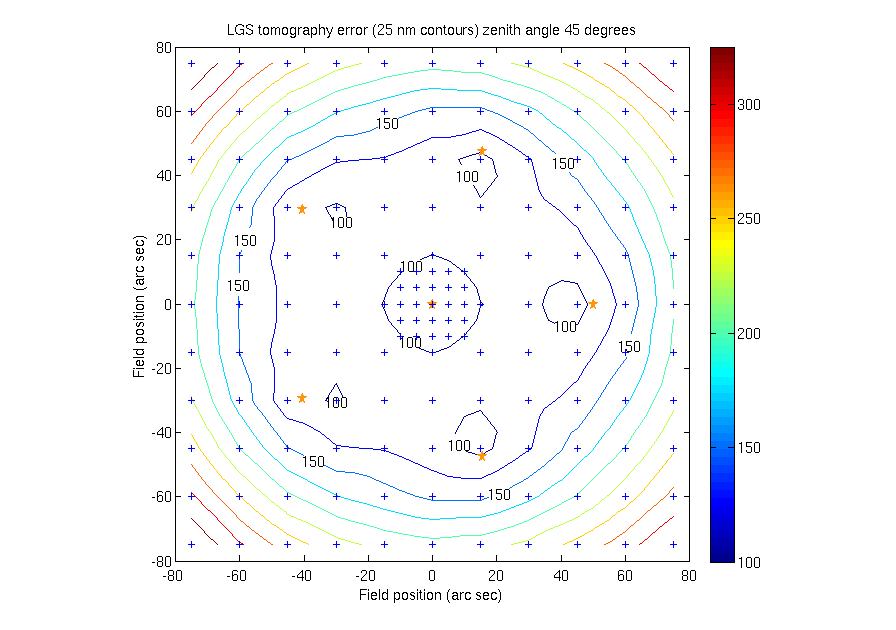

  • Contour plot:

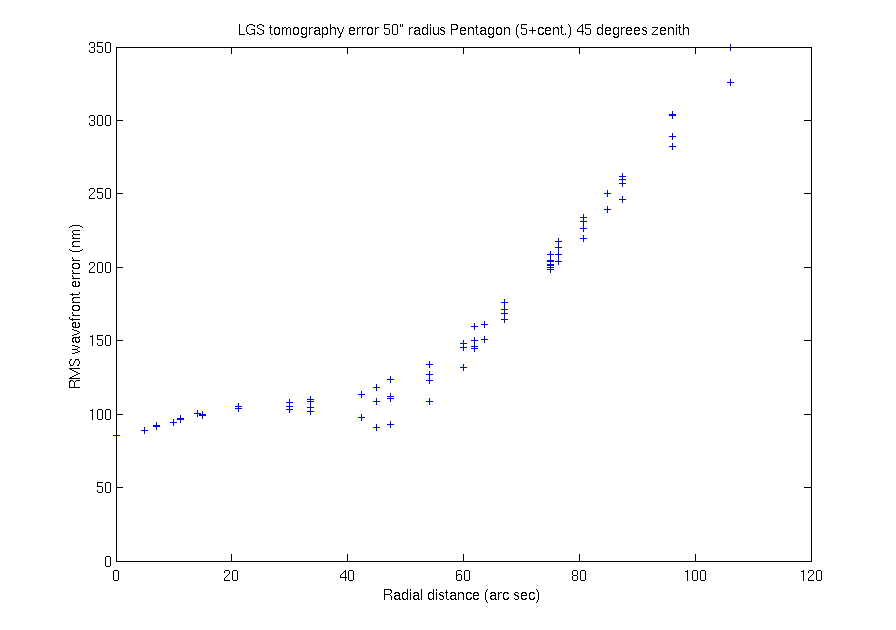

  • Radial plot:

Zenith angle 60 degrees

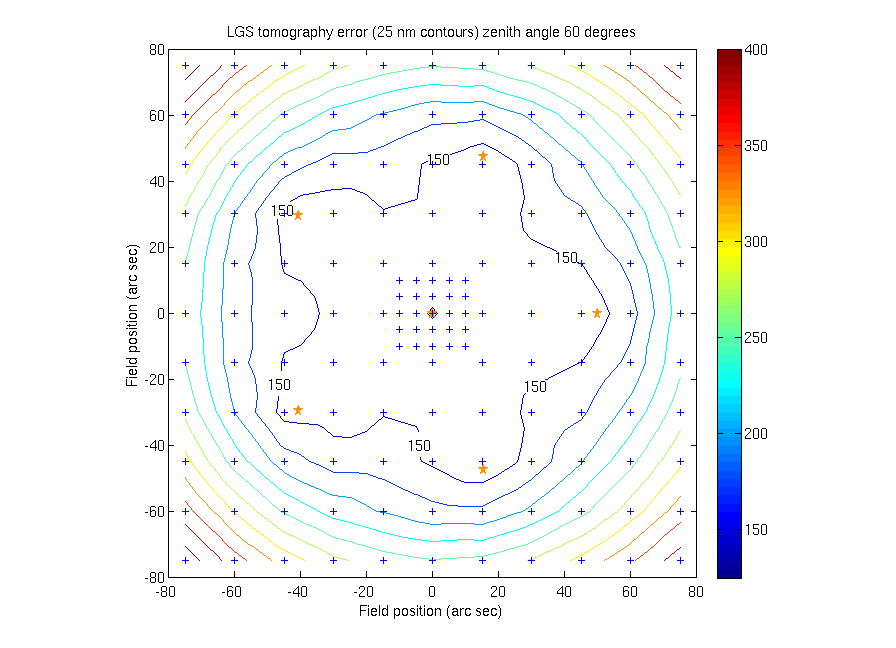

  • Contour plot:

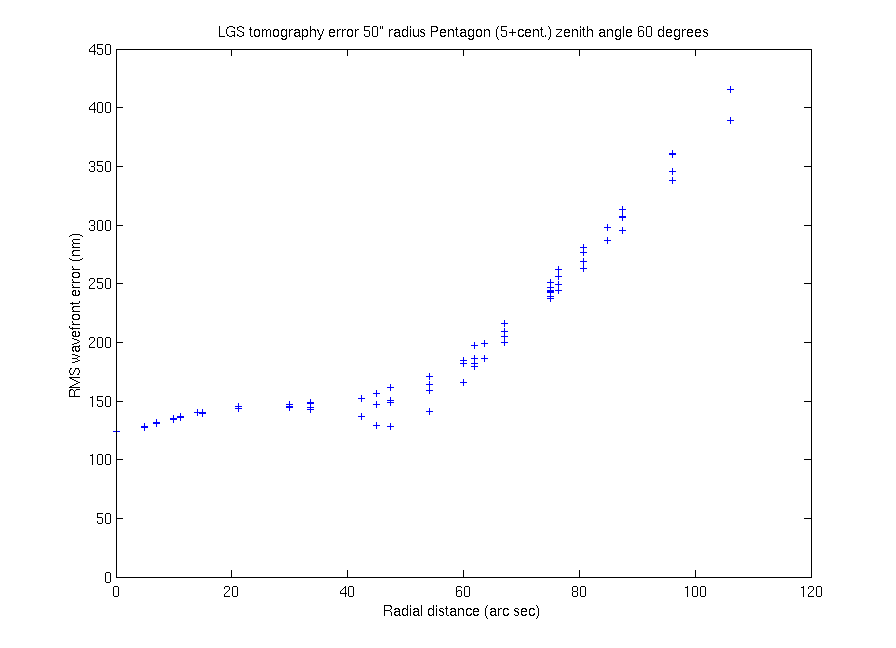

  • Radial plot:
Topic attachments
I Attachment Action Size Date Who Comment
pngpng Pent50con.png manage 18.0 K 02 Mar 2009 - 18:54 ChrisNeyman Contour plot
pngpng Pent50rad.png manage 5.4 K 02 Mar 2009 - 18:55 ChrisNeyman Radial plot
pngpng Pent50zen45con.png manage 19.4 K 04 Mar 2009 - 23:53 ChrisNeyman Contour plot 45 degree zenith angle
pngpng Pent50zen45rad.png manage 6.9 K 04 Mar 2009 - 23:53 ChrisNeyman Radial plot 45 degrees zenith angle
pngpng Pent50zen60con.png manage 20.3 K 05 Mar 2009 - 18:22 ChrisNeyman Contour plot 60 degrees zenith angle
pngpng Pent50zen60rad.png manage 7.2 K 05 Mar 2009 - 18:22 ChrisNeyman Radial plot 45 degrees zenith angle
