NGAO Model Validation

Parameter and data file exchange for testing the disparate tomography codes. -- Don Gavel - 24 Aug 2006

Draft plan: Keck_NGAO_model_validation_plan.pdf

Code Comparison Tests Report: KAON475

TSW Code Release

TomographySphericalWave Code Release

Phantom test of TomographySphericalWave.pro

The "phantom" is a circular shape of 1 micron of phase aberation at 6 km altitude. There are 5 layers (0, 3,6,9,12 km). Tomography was performed using 5 laser (90 km) guidestars in a dice pattern of radius 30 arcsec. The tomography algorithm was told that turbulence was equally distributed among the layers (uniform Cn2 profile)

* phantom_parameters.sav: phantom_parameters.sav

* phantom_results.sav: phantom_results.sav

* phantom_screen.fits: phantom_screen.fits

* phantom_volume_est.fits: phantom_volume_est.fits

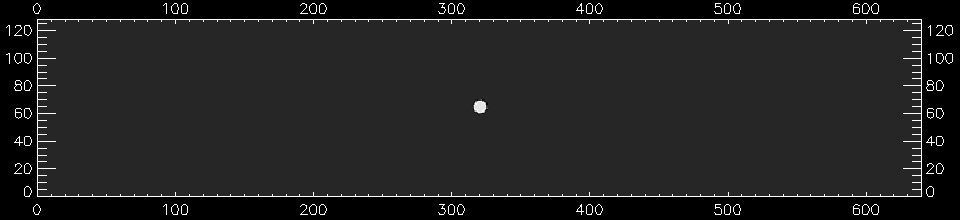

* phantom_screen.jpg:

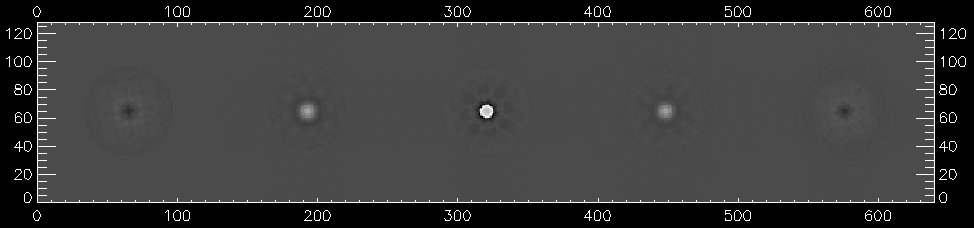

* phantom_volume_est.jpg:

2nd Phantom test of TomographySphericalWave.pro

The "phantom" is a Gaussian shape of 1 micron of phase aberation at 6 km altitude. The Gaussian shape will make it easier for Hartmann sensors to measure the wavefront since there are no abrupt steps in phase as in the case of a circular disk aberation like the 1st phantom. There are 5 layers (0, 3,6,9,12 km). Tomography was performed using 5 laser (90 km) guidestars in a dice pattern of radius 30 arcsec. The tomography algorithm was told that turbulence was equally distributed among the layers (uniform Cn2 profile)

* phantomGauss_parameters.sav: phantomGauss_parameters.sav

* phantomGauss_results.sav: phantomGauss_results.sav

* phantomGauss_screen.fits: phantomGauss_screen.fits

* phantomGauss_volume_est.fits: phantomGauss_volume_est.fits

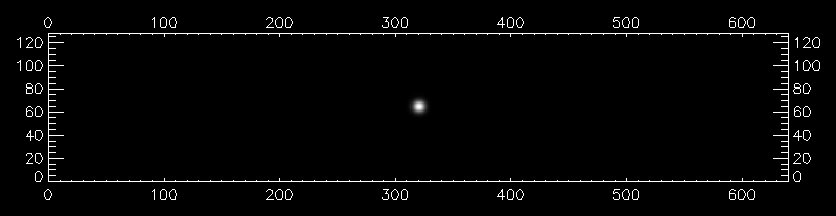

* phantomGauss_screen.jpg:

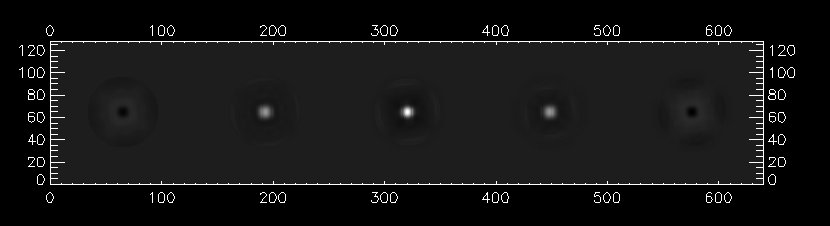

* phantomGauss_volume_est.jpg:
