Caltech Optical Observatories Thermal Chamber(s)

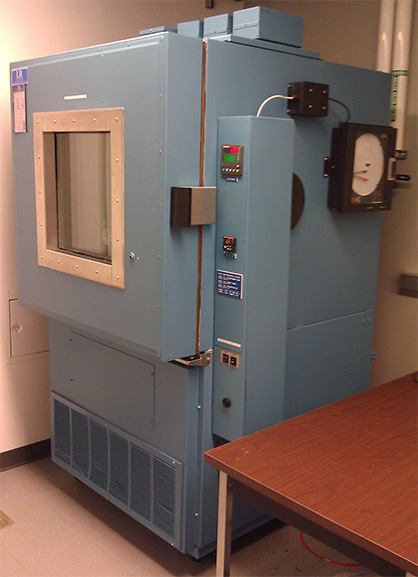

  • Thermotron Model SM-16C Temperature/Humidity Chamber (October 2010)
    • Internal Chamber Dimensions: 30"x30"x30"
    • External Dimensions: 47"(wide) x 59"(deep) x 83"(high)
    • Temperature Range: -70C to +170C
      • Cascade air cooled compressors
    • Humidity Range: 20% to 95% RH
    • Watlow Programmable Controller
    • Over and Under Temperature Protection Controller
    • Stainless Steel Interior, Window in Door, Light Inside Chamber
    • No Shelf
    • 2" x 8" Diameter Feed-Through Ports in Side Wall
    • Power 230V 3PH 37A
    • Location: Room 17b, Cahill Center for Astronomy and Astrophysics

  • Vacuum Oven (to be detailed)
