Field Grid Aligned to the Galactic Plane | |||||||||||||
Line: 7 to 7 | |||||||||||||
which focus on the plane. Conversely, this also helps programs which want to focus on extra-galactic fields. | |||||||||||||
Changed: | |||||||||||||

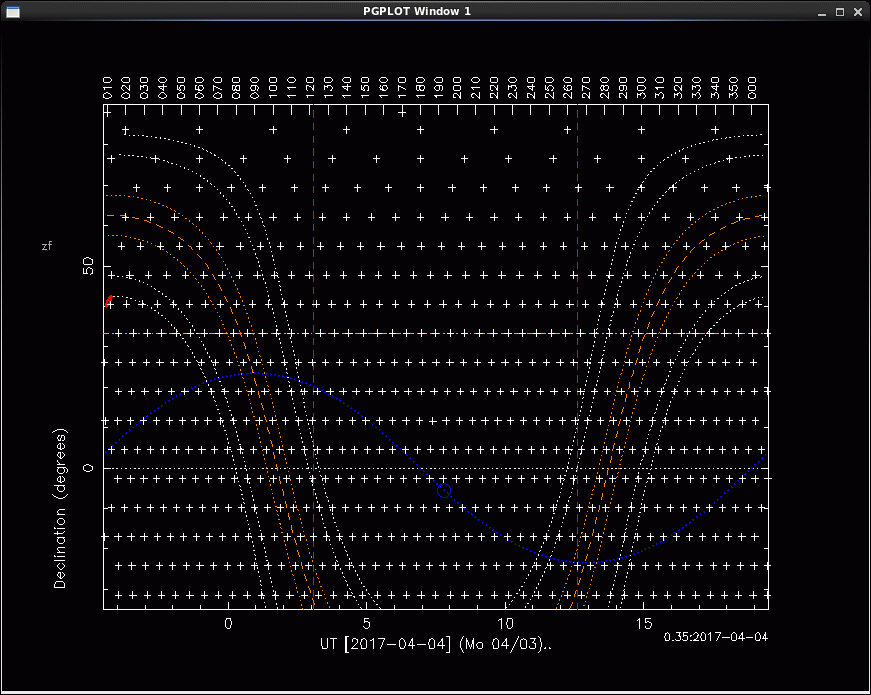

< < | Below are two figures. The first shows a sample of fields in the primary ZTF grid (IDs < 1000) | ||||||||||||
> > | Below are two figures. The first shows a sample of fields in the primary ZTF grid (IDs < 1000) | ||||||||||||

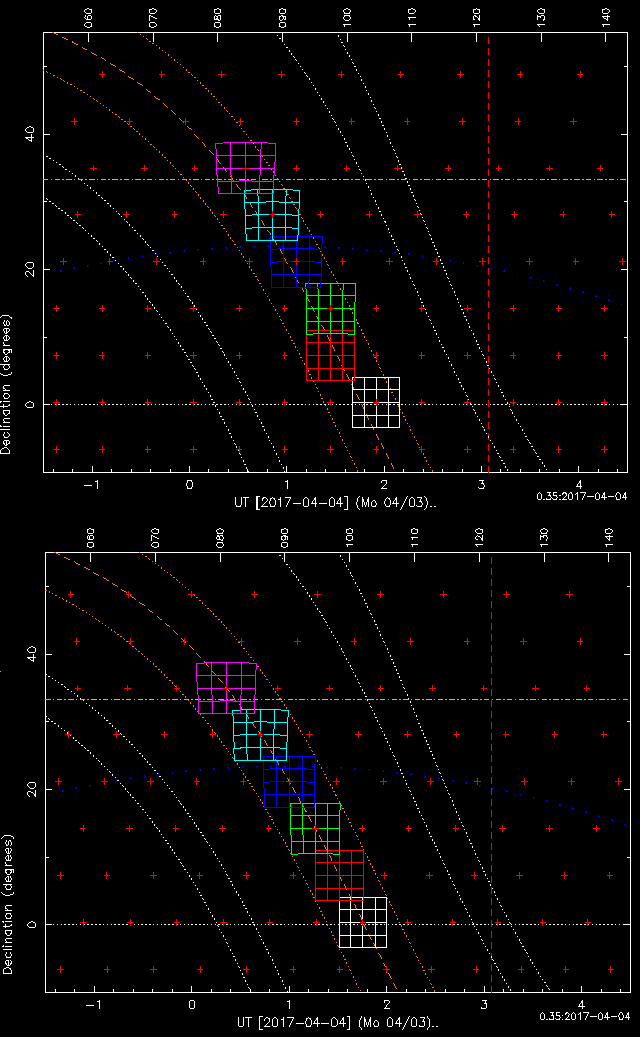

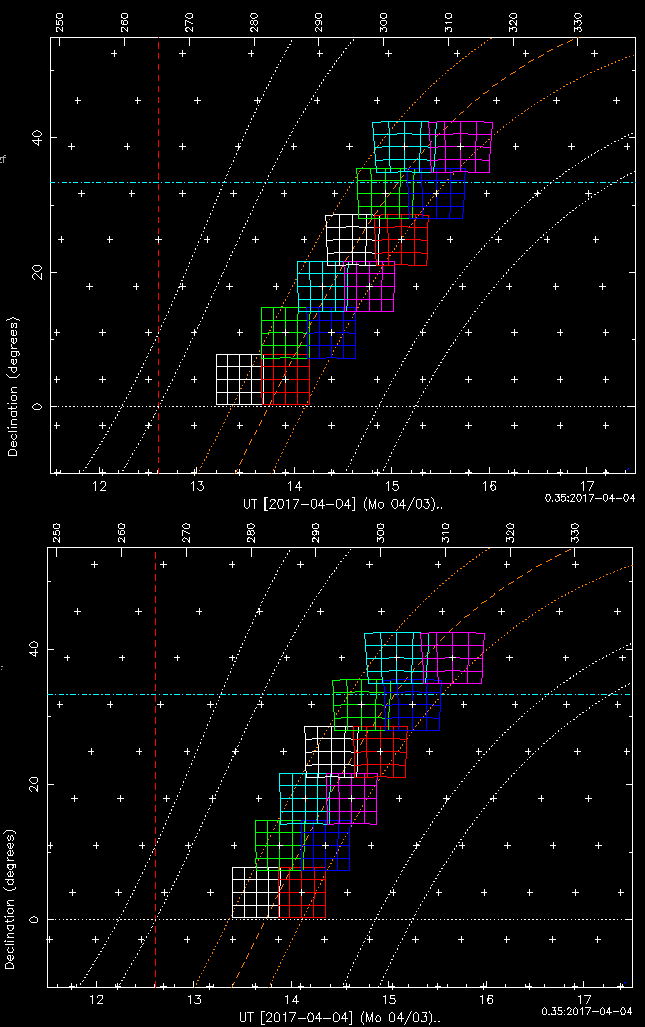

near the Galactic Plane with the original grid pattern and a possible new pattern. | |||||||||||||
Changed: | |||||||||||||

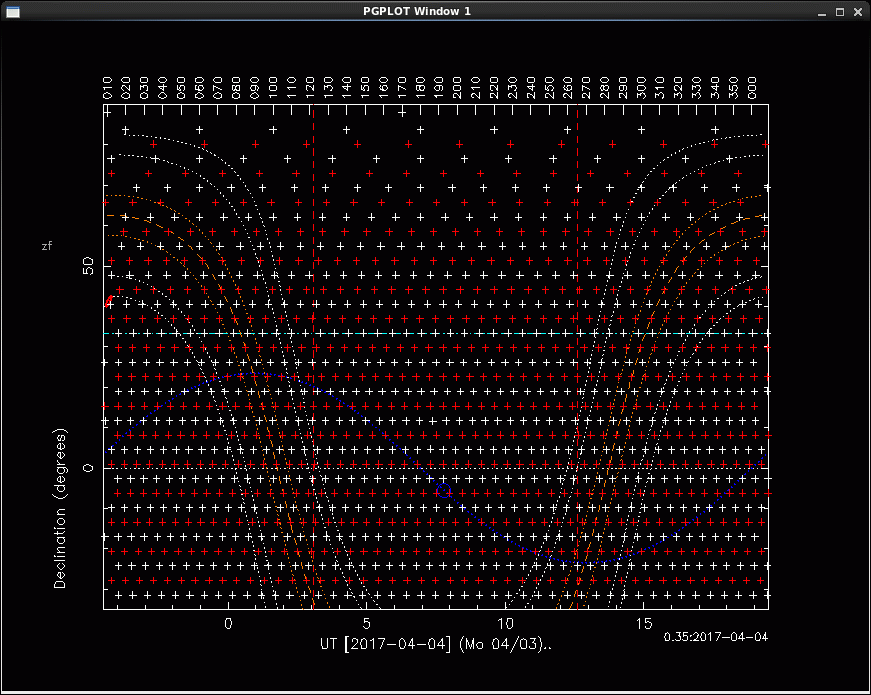

< < | The second shows another field sample using the secondary ZTF grid (IDs > 1000). | ||||||||||||
> > | The second shows another field sample using the secondary ZTF grid (IDs > 1000). | ||||||||||||
The orange dashed line is the |b|=0 and the orange dotted lines are |b|=5 degrees. | |||||||||||||
Line: 36 to 35 | |||||||||||||
| |||||||||||||
Changed: | |||||||||||||
< < |
| ||||||||||||
> > |
| ||||||||||||
| |||||||||||||
Line: 46 to 45 | |||||||||||||
| |||||||||||||
Changed: | |||||||||||||
< < |
| ||||||||||||
> > |
| ||||||||||||

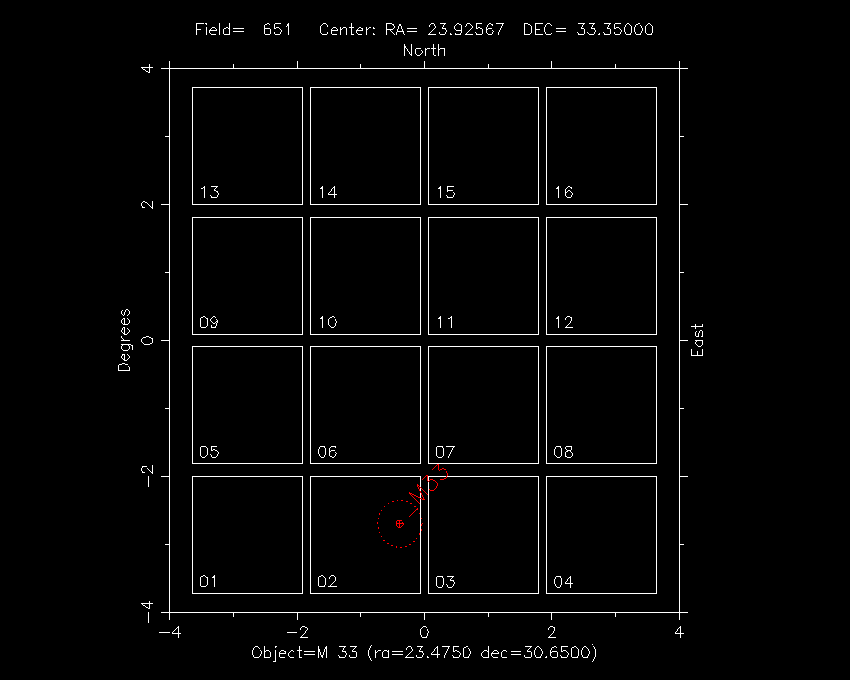

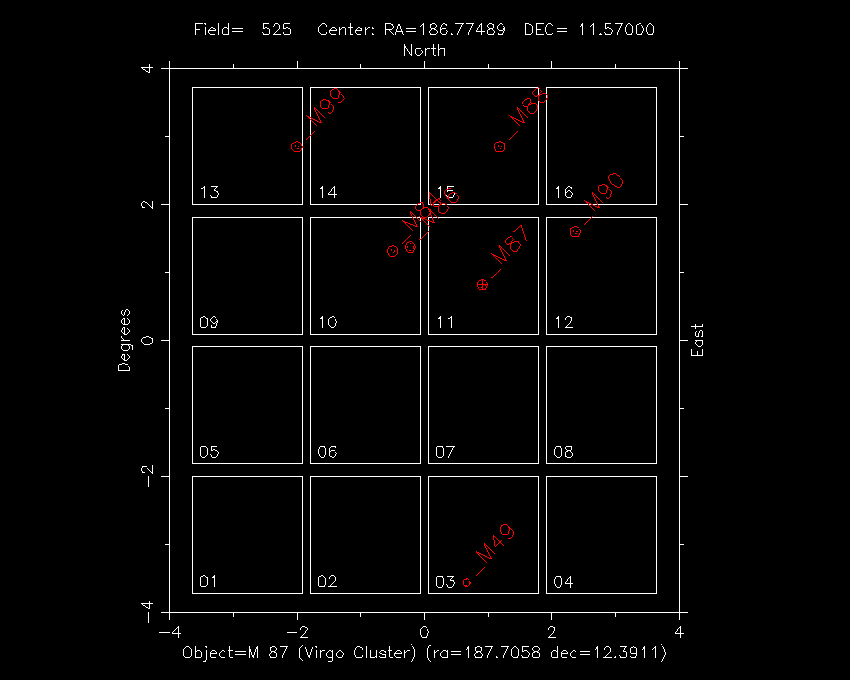

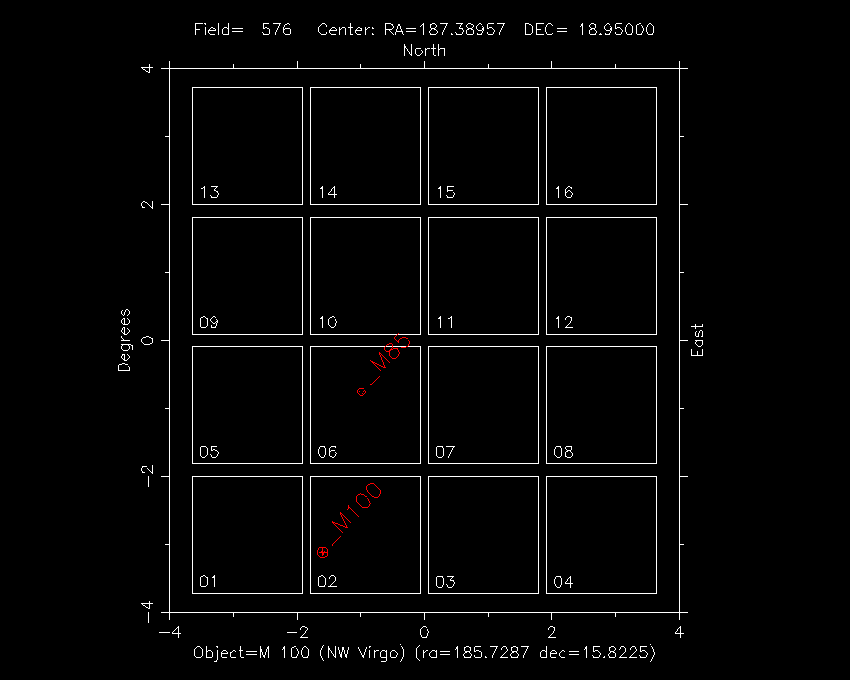

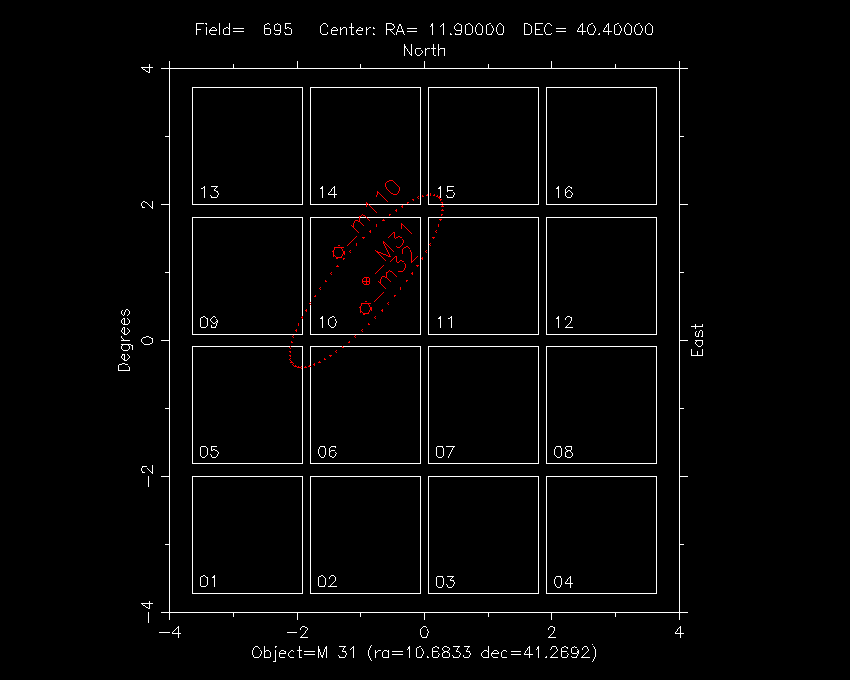

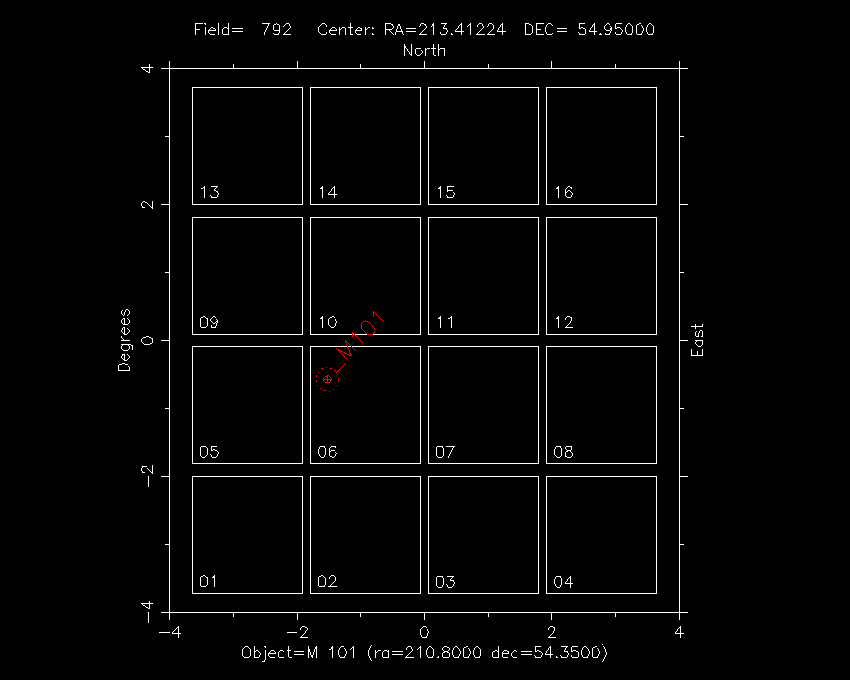

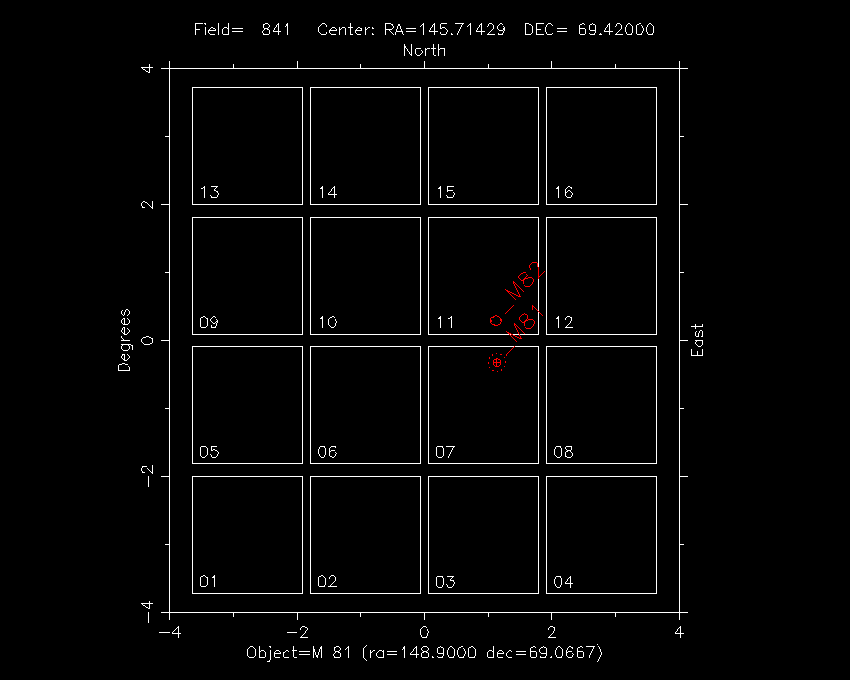

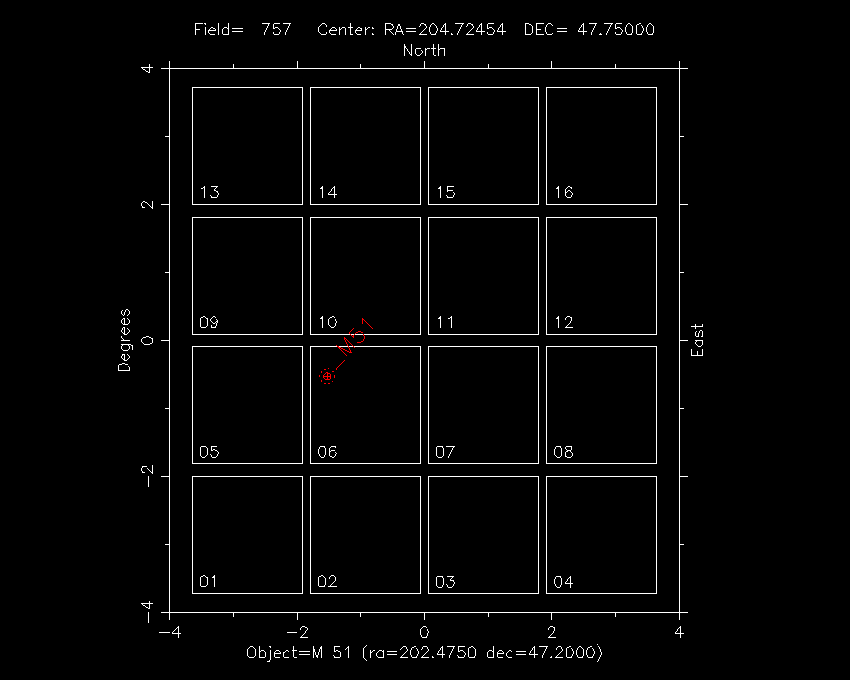

Nearby Galaxies | |||||||||||||
Line: 69 to 69 | |||||||||||||

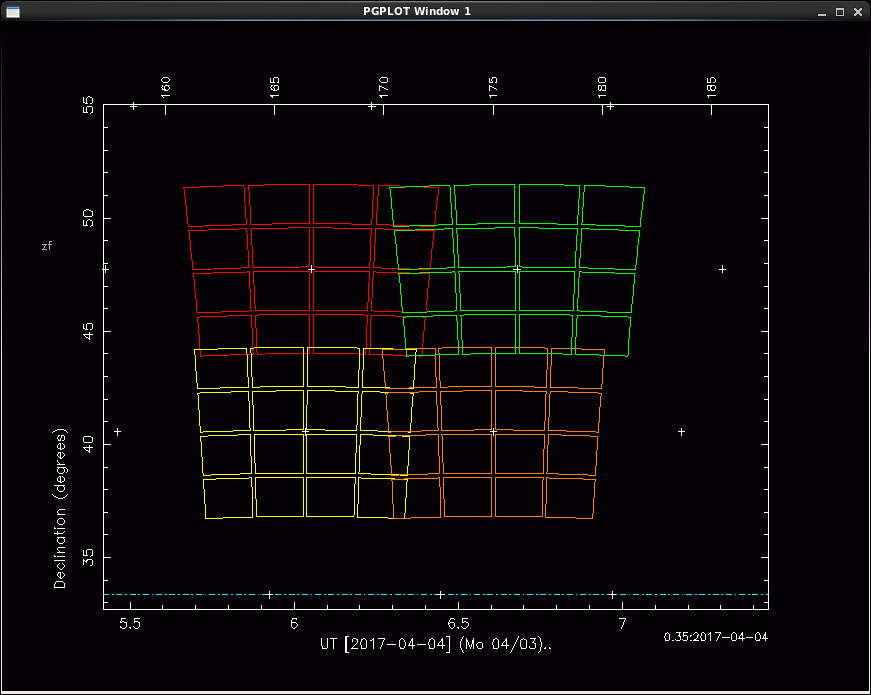

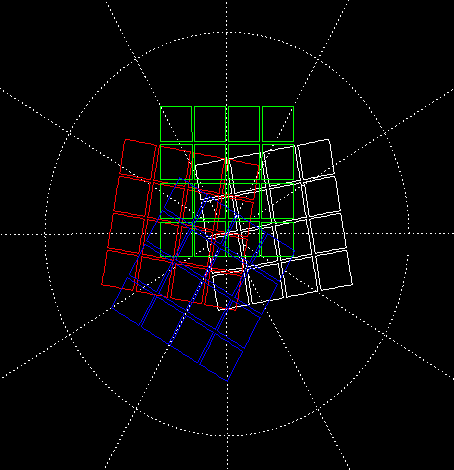

overlap of the primary grid, 13% of the time a position will fall on a CCD on more than field of the primary
grid.
| |||||||||||||
Changed: | |||||||||||||
< < |
| ||||||||||||
> > |

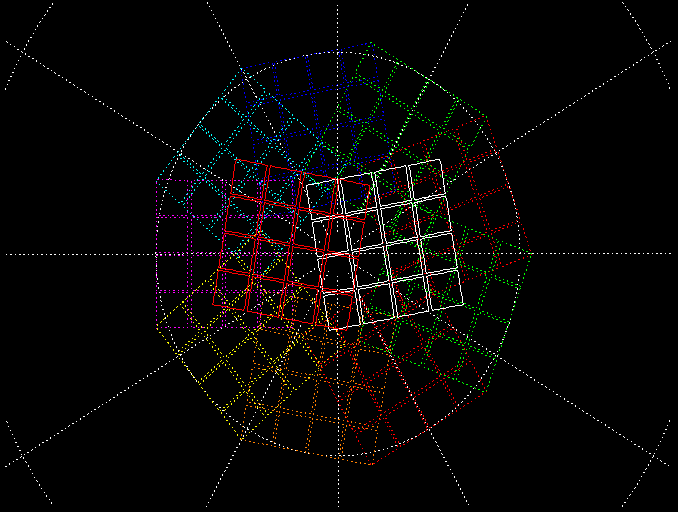

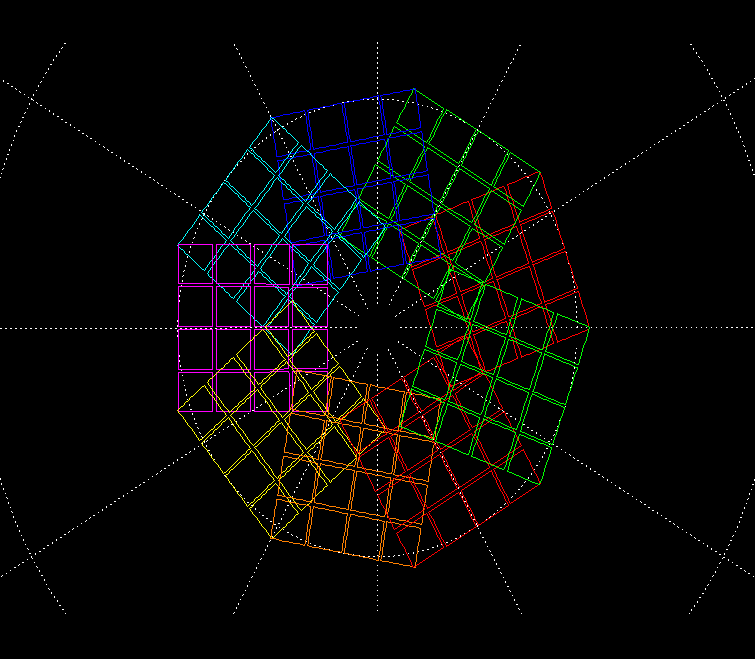

| ||||||||||||
Uncovered Sky | |||||||||||||
Line: 81 to 81 | |||||||||||||

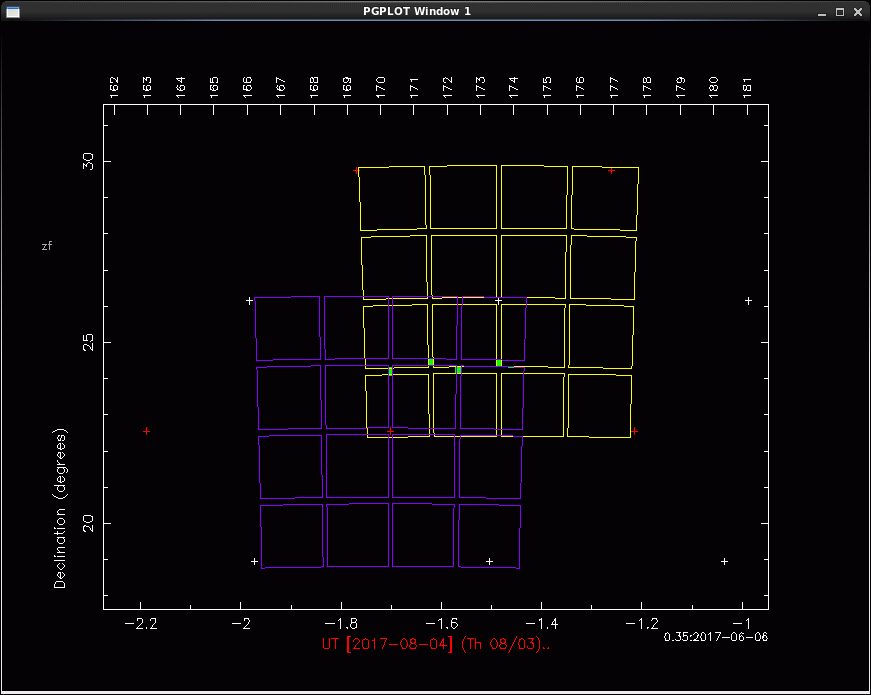

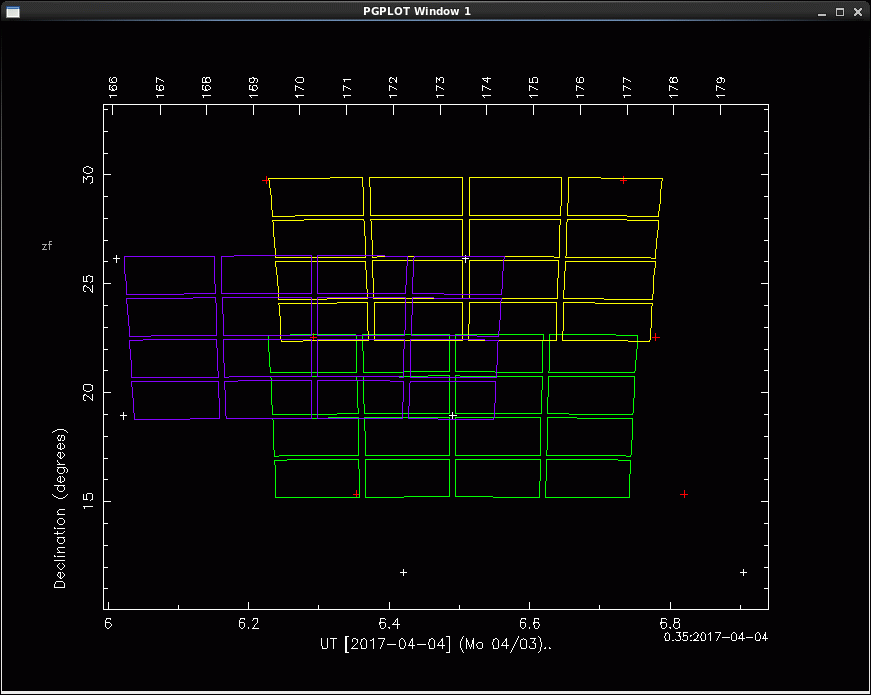

CCD gaps (Primary+Secondary Gaps), these gaps or unavoidable unless the fields were placed very close together. | |||||||||||||
