LGS tetrad asterism 5" radius

Plot key: Orange stars = LGS location, Blue cross = evaluation point (5" spacing on axis) (15" spacing off axis)

-- ChrisNeyman - 02 Mar 2009

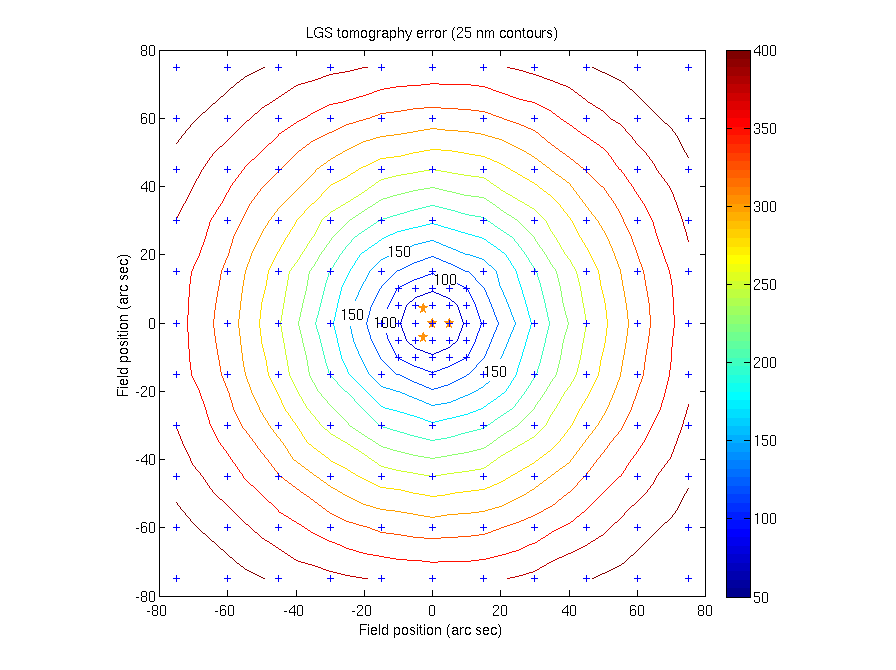

  • Contour plot:

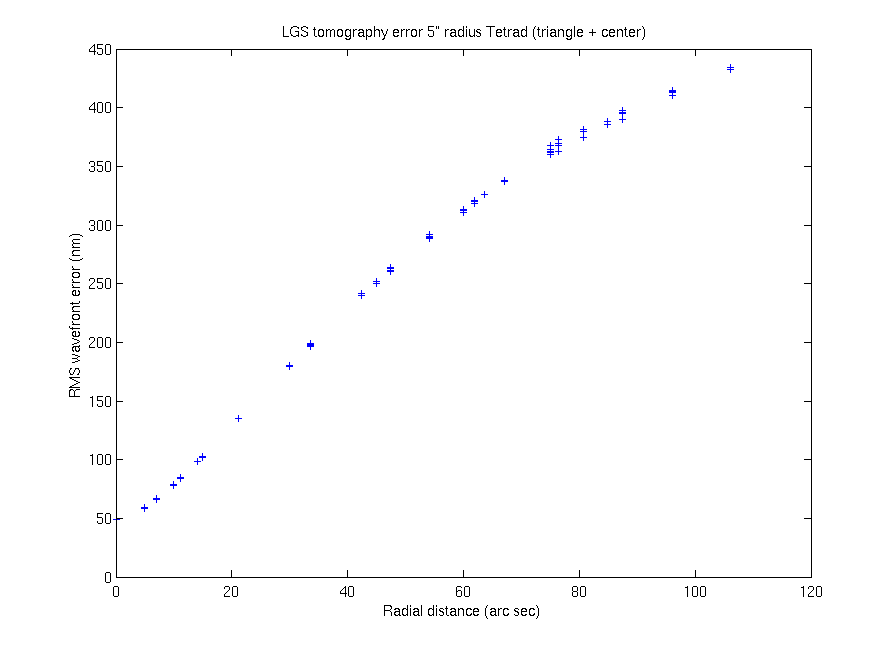

  • Radial plot:

Topic attachments
I Attachment Action Size Date Who Comment
pngpng Tet05con.png manage 23.6 K 20 Mar 2009 - 23:08 ChrisNeyman Contour plot
pngpng Tet05rad.png manage 6.8 K 20 Mar 2009 - 23:08 ChrisNeyman Radial plot
