LGS pentagon asterism 60" radius

Plot key: Orange stars = LGS location, Blue cross = evaluation point (5" spacing on axis) (15" spacing off axis)

-- ChrisNeyman - 02 Mar 2009

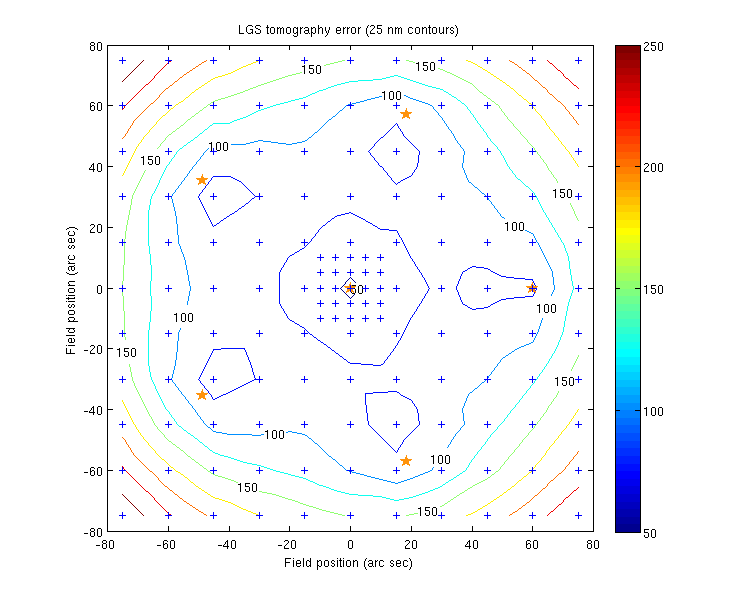

  • Contour plot:

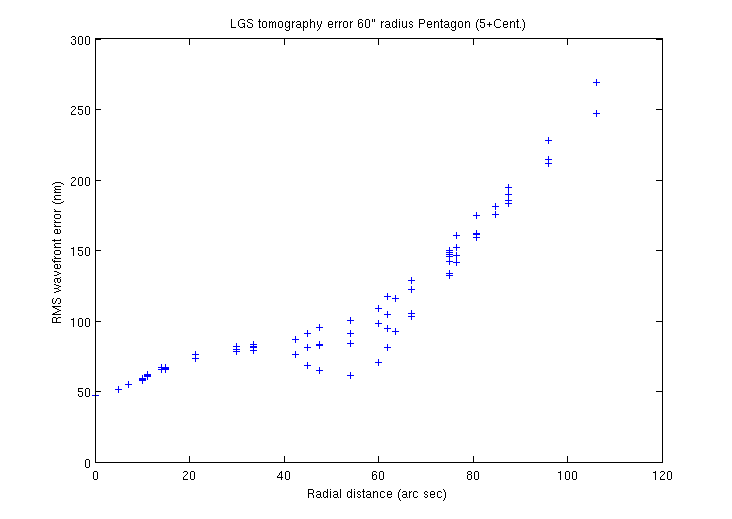

  • Radial plot:
Topic attachments
I Attachment Action Size Date Who Comment
pngpng Pent60con.png manage 17.2 K 02 Mar 2009 - 18:56 ChrisNeyman Contour plot
pngpng Pent60rad.png manage 5.4 K 02 Mar 2009 - 18:57 ChrisNeyman Radial plot
