Irregular Asterisms

Plot key: Orange stars = LGS location, Blue cross = evaluation point (5" spacing on axis) (15" spacing off axis)

-- ChrisNeyman - 05 Mar 2009

Kite 20" (body) & 40" (tail)

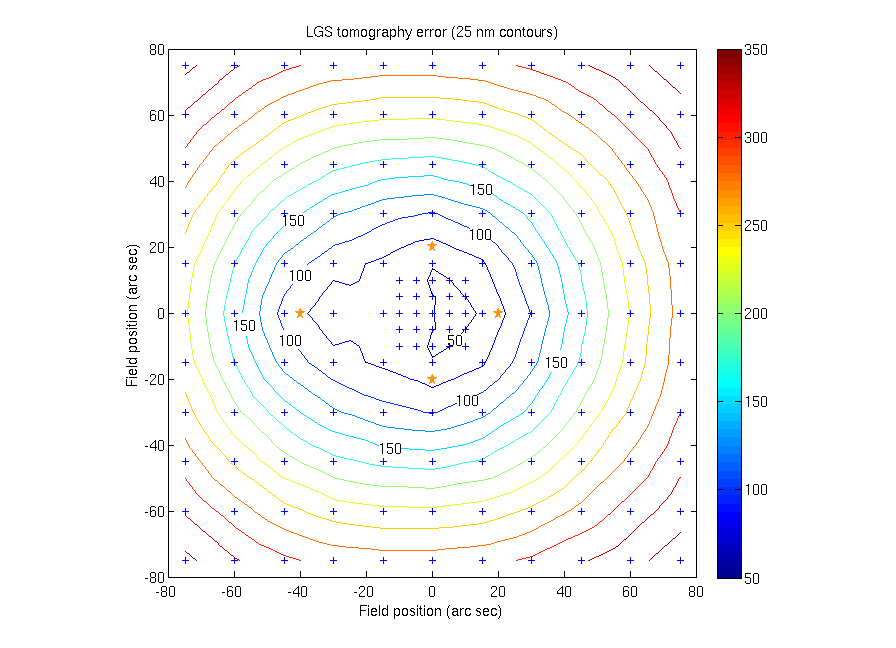

  • Contour plot:

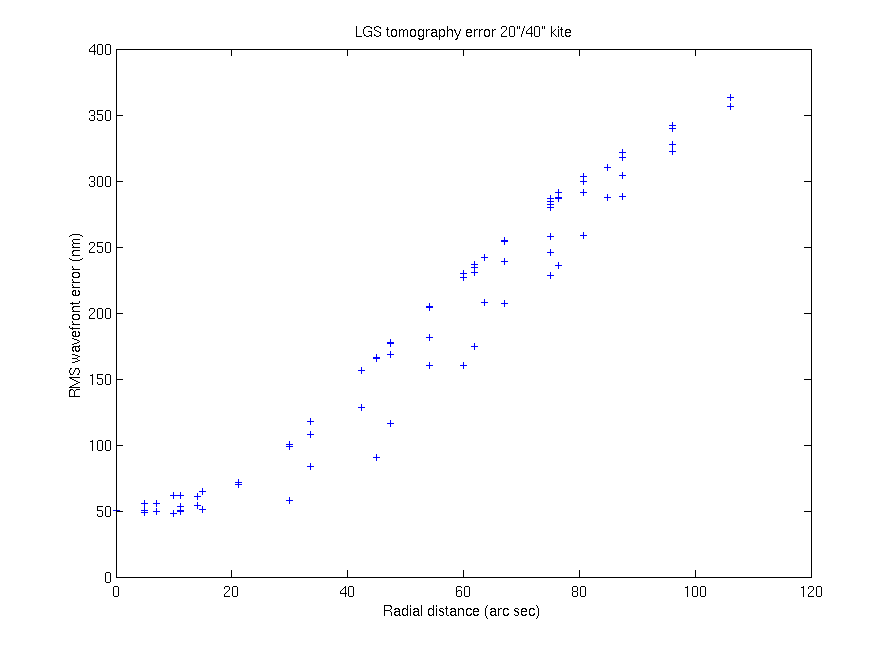

  • Radial plot:

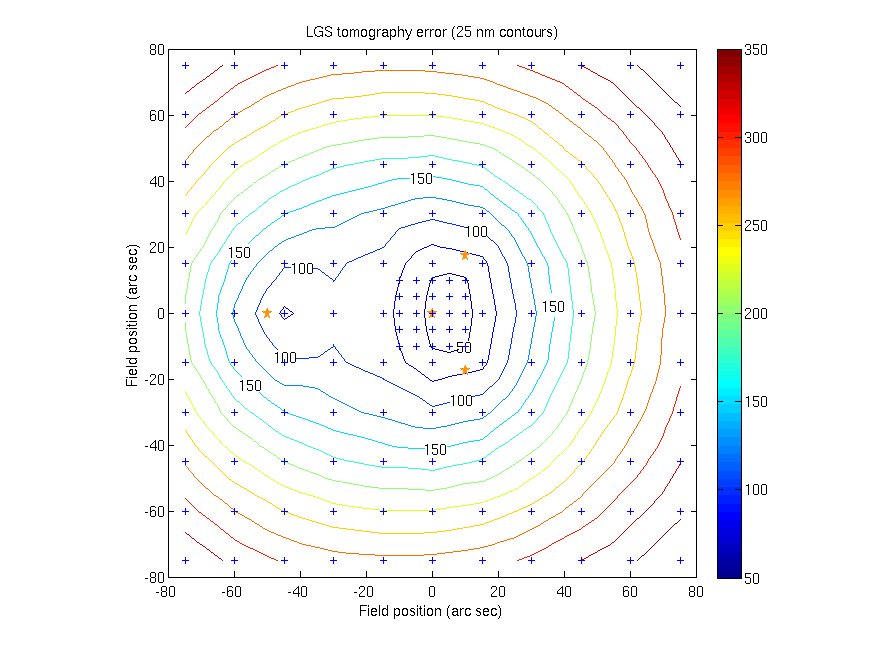

Tetrad concave 20" & 50"

  • Contour plot:

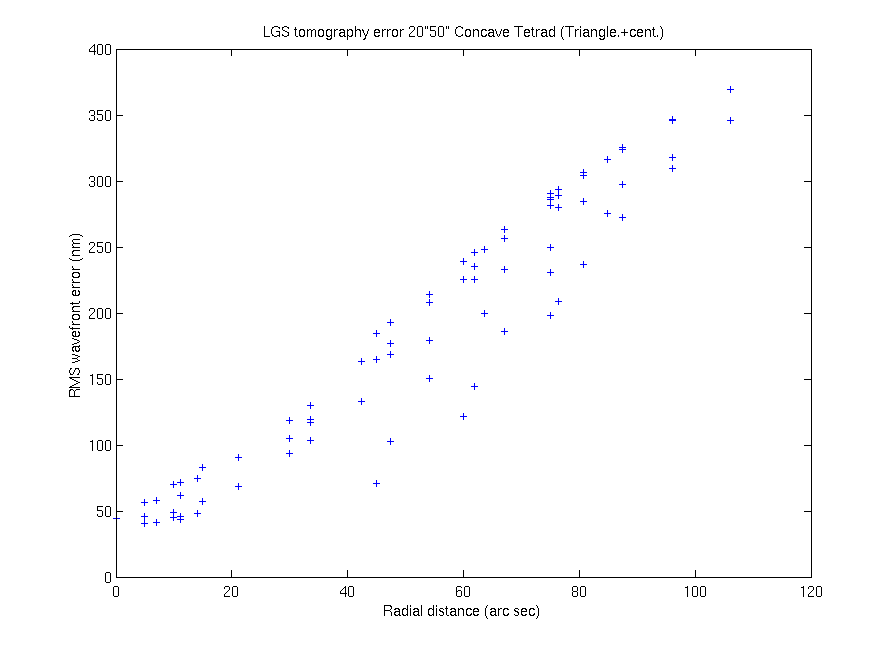

  • Radial plot:

Tetrad 25" radius 30 degree opening angle

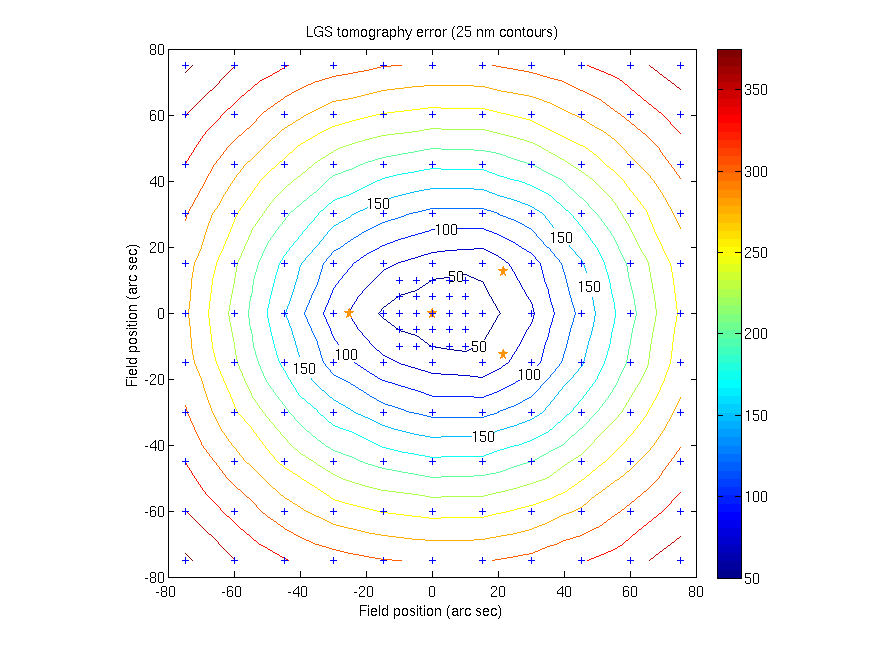

  • Contour plot:

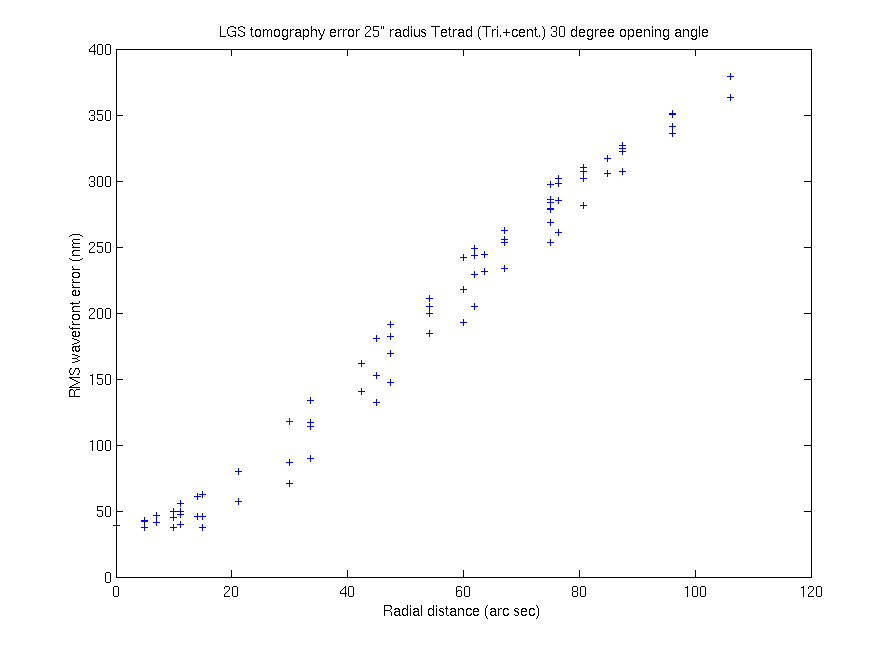

  • Radial plot:

Spiral 4

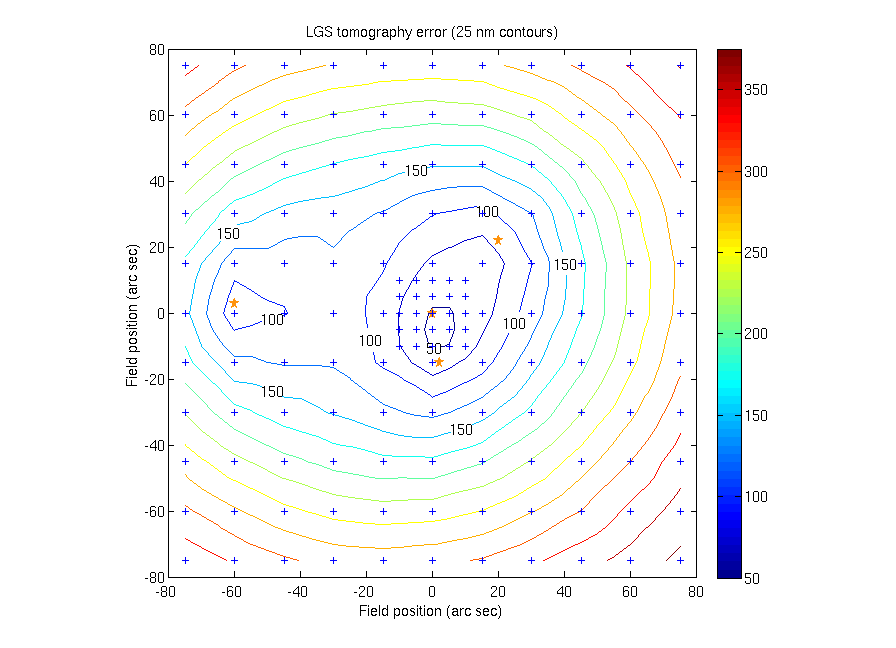

  • Contour plot:

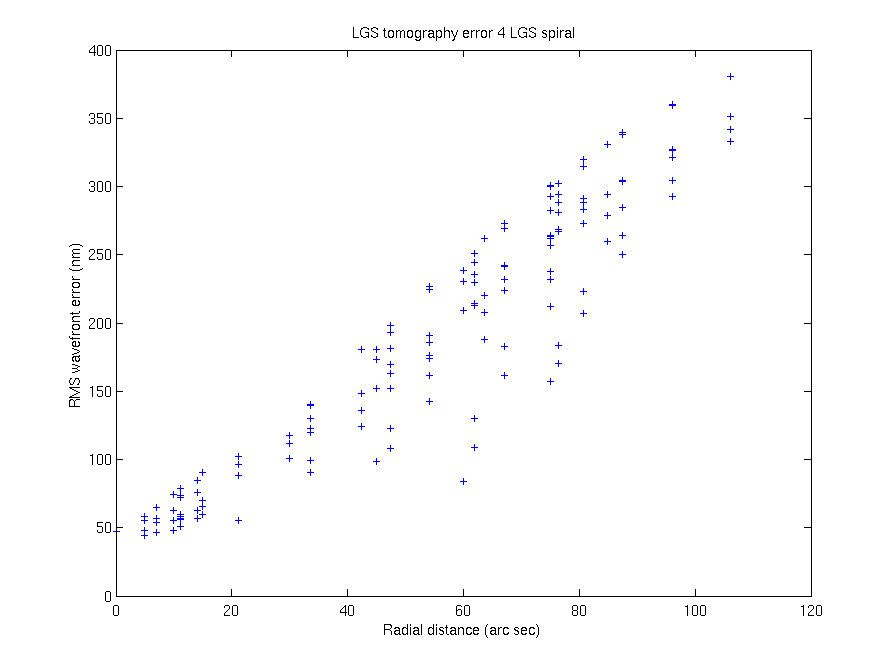

  • Radial plot:

Spiral 5

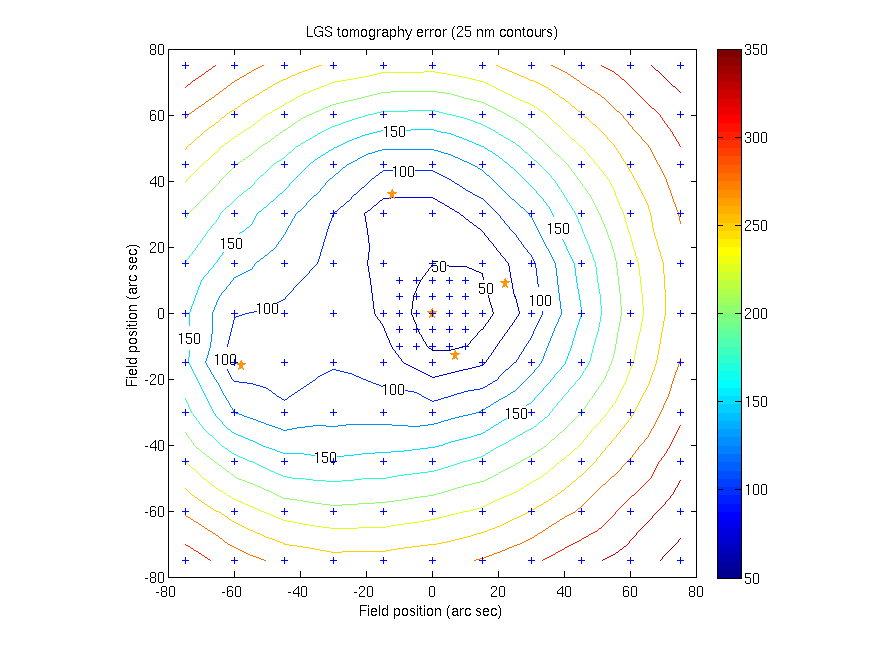

  • Contour plot:

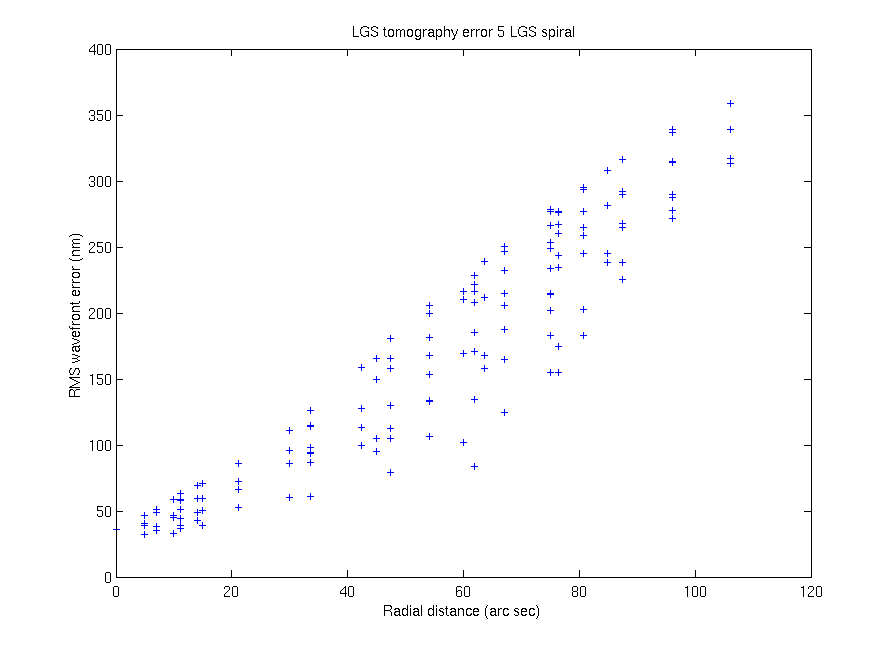

  • Radial plot:
